Estimate the materials required for erection of 3 phase, 5 wire distribution line of the length...
Estimate the materials required for erection of 3 phase, 5 wire distribution line of the length of 2 km and the span between the two poles is 60 m over a 8 m long PSCC poles. Assuming the distribution lines are arranged in vertical fashion. Assume missing data if any.
Homework Answers

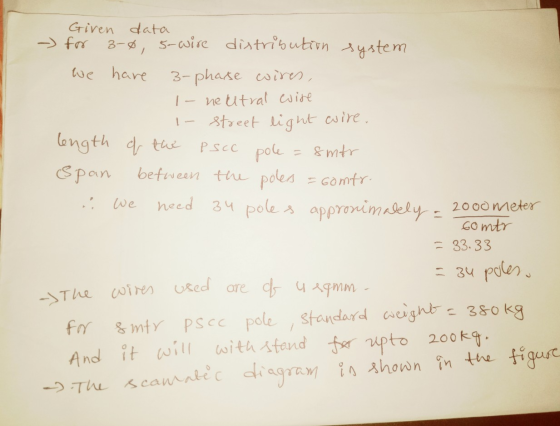

Given Data,
1. Prestressed Cement Concrete poles of height 8 m,
2.3-Phase, 5-wire,
3.Spam between poles 60 m,

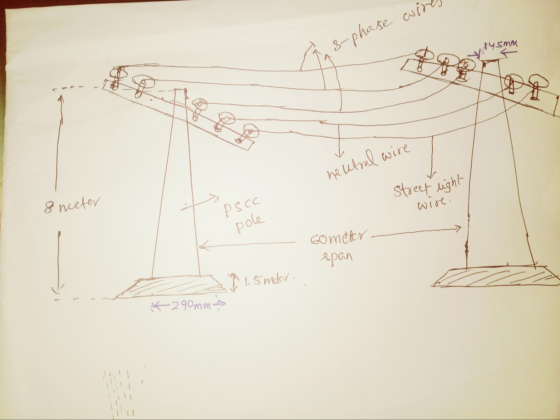

5 wire system i used in distribution system 3-Phase wires, one neutral wire and one street light
wire.
