Uninterruptible power system (UPS) has to be connected to the network by. a) series to feed...
Uninterruptible power system (UPS) has to be connected to the network by.
a) series to feed electrical power at normal time
b) parallel to feed electrical power at normal time
c) series to feed electrical power at critical time
d) parallel to feed electrical power at critical time
Homework Answers

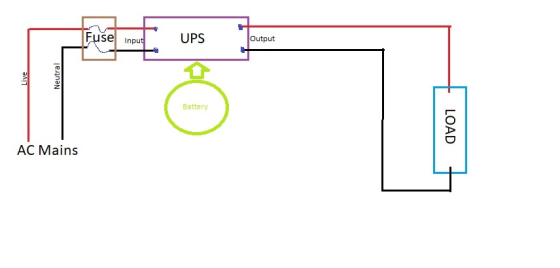

A simple UPS connection circuit,
As we can see the UPS is connected in series with the supply. At normal time, UPS will bypass the mains line to load and if needed then charges the battery. At critical time, it will deliver power from the battery to load.
a) series to feed electrical power at normal time : This option is wrong as at normal time, UPS will bypass the mains line to load and if needed then charges the battery.
b) parallel to feed electrical power at normal time: UPS generally connected in series with the supply
c) series to feed electrical power at critical time: This option is right. At critical time, it will deliver power from the battery to load.
d) parallel to feed electrical power at critical time: UPS generally connected in series with the supply
