A resistor (R = 9.00 ✕ 102 Ω), a capacitor (C = 0.250 μF), and an...

A resistor

(R = 9.00 ✕ 102 Ω),

a capacitor

(C = 0.250 μF),

and an inductor

(L = 1.20 H)

are connected in series across a 2.40 ✕ 102-Hz AC source for which

ΔVmax = 1.45 ✕ 102 V.

(a) Calculate the impedance of the circuit. (kΩ)

(b) Calculate the maximum current delivered by the source. (A)

(c) Calculate the phase angle between the current and voltage. (° )

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

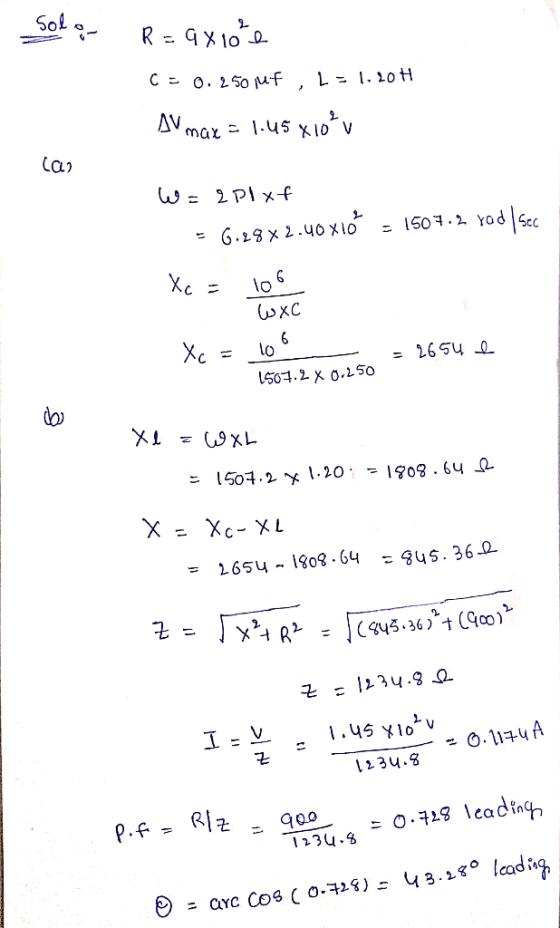

Answer #1

0 0
