Question 1: True or False. 1) Please indicate if the following statements are true or false....
Question 1: True or False.
1) Please indicate if the following statements are true or false.
2) please explain why it is true or false
3) If the answer is false, please make correction.

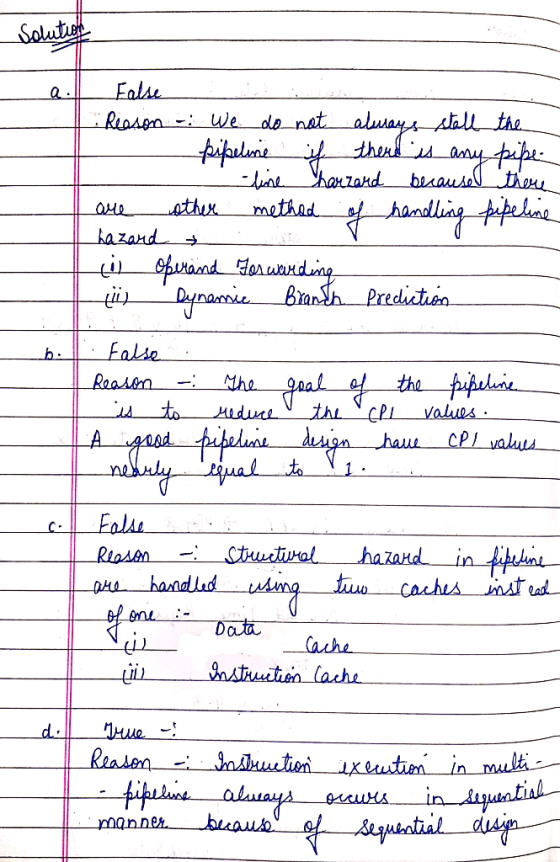

- We can always stall the pipeline (insert bubbles) to solve the problem if there is any pipeline hazard.
- The goal of pipeline design is to achieve higher CPI values.
- Data forwarding can be used to handle structure hazards in pipeline.
- In a multi cycle FP pipeline, instructions do not complete out of order.

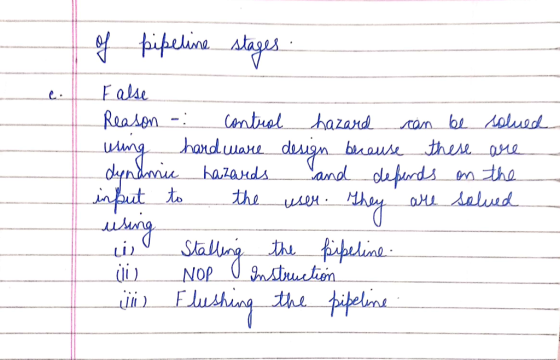

- Control hazards have to be solved by hardware designs.
