6 - What decimal number does the bit pattern 0xC0B00000 represent if it is: • [2...

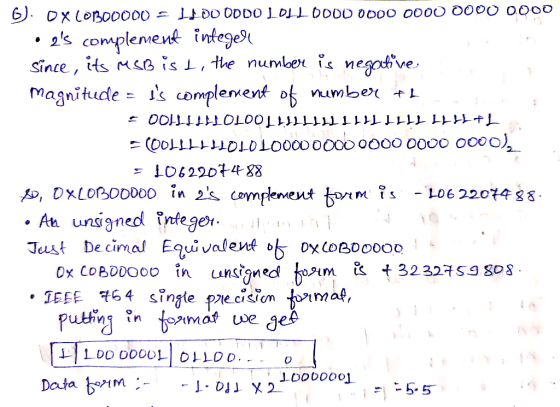

6 - What decimal number does the bit pattern 0xC0B00000 represent if it is: • [2 pts] A two's complement integer? • [2 pts] An unsigned integer? • [2 pts] A floating point number assuming the IEE 754 single precision format

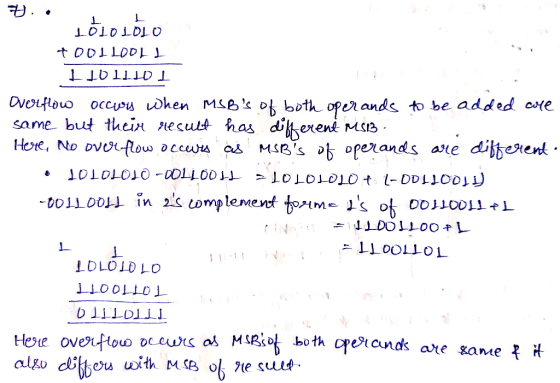

7 - Perform the following calculations assuming that the values are 8-bit decimal integers stored in two's complement format. Be sure to consider the possibility of overflow. • [2 pts] 10101010 + 00110011 • [2 pts] 10101010 – 00110011

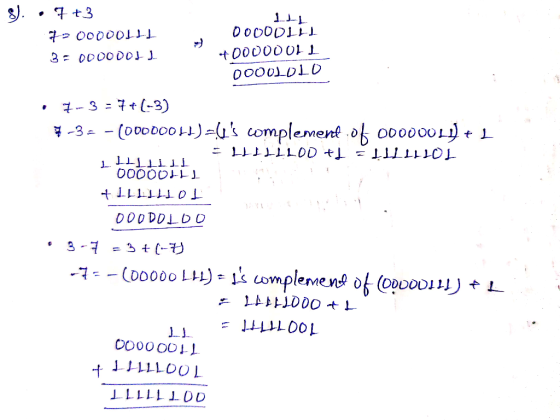

8 - For the following operations: write the operands as 2's complement binary numbers then perform the addition or subtraction operation shown. Show all work in binary operating on 8-bit numbers. • [1 pts] 7 + 3 • [1 pts] 7 - 3 • [1 pts] 3 - 7
If you could show work that would be helpful to me, Thank you.
Homework Answers
Add Answer to:
6 - What decimal number does the bit pattern 0xC0B00000
represent if it is: • [2...
Please show and explain all work for each questions What decimal number does the bit pattern...
Please show and explain all work for each questions What decimal number does the bit pattern 11001100 represent if it is a: • [1 pts] unsigned integer? • [1 pts] sign-magnitude integer? • [1 pts] two's complement integer? 4 - What decimal number does the bit pattern 00110011 represent if it is a: • [1 pts] unsigned integer? • [1 pts] sign-magnitude integer? • [1 pts] two's complement integer? 5 - [2 pts] What is the binary representation of the...
3 - What decimal number does the bit pattern 11001100 represent if it is a: •...
3 - What decimal number does the bit pattern 11001100 represent if it is a: • [1 pts] unsigned integer? • [1 pts] sign-magnitude integer? • [1 pts] two's complement integer? 4 - What decimal number does the bit pattern 00110011 represent if it is a: • [1 pts] unsigned integer? • [1 pts] sign-magnitude integer? • [1 pts] two's complement integer? If you could show work that would be helpful as I have to do that to get credit....
1. What is the largest decimal number we can represent with a 16 bit two's complement...
1. What is the largest decimal number we can represent with a 16 bit two's complement number? 2. Convert the following signed binary numbers to decimals. 11001 010011 1110100 1100111 3. Convert the following decimal numbers to 6-bit two's complement binary numbers and add them. Note if there is an overflow. 7 + 13 Two's complement/binary number for 7: Two's complement/binary number for 13: Sum: Overflow? 4. Convert the following decimal numbers to 6-bit two's complement binary numbers...
What decimal number does the bit pattern 10101100 represent if it is a: [1 pts] unsigned...
What decimal number does the bit pattern 10101100 represent if it is a: [1 pts] unsigned integer? [1 pts] sign-magnitude integer? [1 pts] two's complement integer? What decimal number does the bit pattern 01010011 represent if it is a: [1 pts] unsigned integer? [1 pts] sign-magnitude integer? [1 pts] two's complement integer?
2. a) What decimal number does the bit pattern 0×0C000000 represent if it is a two’s...
2. a) What decimal number does the bit pattern 0×0C000000 represent if it is a two’s complement integer? An unsigned integer? b) What decimal number does the bit pattern 0×0C000000 represent if it is a floating point number? Use the IEEE 754 standard. c) If the bit pattern 0×0C000000 is placed into the Instruction Register, what MIPS instruction will be executed?
(3 pts) This problem tests your knowledge about coding schemes. What is the binary bit pattern for...
(3 pts) This problem tests your knowledge about coding schemes. What is the binary bit pattern for the letter 'h' using? The answers should give the whole bit string (including leading 0s). ASCII encoding (7-bits) EBCDIC encoding (8-bits) UNICODE encoding (16 bits) ______________________________________________________________________________ (3 pts) Show how each of the following floating point values would be stored using IEEE-754 single precision (be sure to indicate the sign bit, the exponent, and the significand fields): (show your work) 12.5 −1.5 0.75 26.625...
4. What decimal value does the 8-bit binary number 10011110 have if:
4. What decimal value does the 8-bit binary number 10011110 have if: a) It is interpreted as an unsigned number? b) It is on a computer using signed-magnitude representation? c) It is on a computer using ones complement representation? d) It is on a computer using twos complement representation? 5. Given the following two binary numbers: 11111100 and 01110000. a) Which of these two numbers is the larger unsigned binary number? b) Which of these two is the larger when it is being...
1. What decimal number is represented by the following excess 8 notation? 2. Convert 1111 from...
1. What decimal number is represented by the following excess 8 notation? 2. Convert 1111 from excess eight representation to its equivalent base ten binary form 3. With two's complement signed binary representation, what is the range of numbers as written in binary and in decimal for an eight-bit cell? (lowest to highest) 4. Convert -7 from decimal to binary, assuming seven-bit two’s complement binary representation 5. Convert 111 1010 from binary to decimal assuming seven bit two's complement binary...
can please somebody answer me this questions with solution. 1) Find the 12-bit product of 101011...
can please somebody answer me this questions with solution. 1) Find the 12-bit product of 101011 x 100111 assuming that the binary numbers are signed integers in two's complement form. 2) Find the quotient and the remainder of 11010111 ÷ 1010, assuming that the binary numbers are signed integers in two's complement form. Let 4284000016 and 3c82000016 represent two floating point numbers in IEEE single-precision FP format. Determine the decimal values of the two numbers. Add the two numbers and...
Convert the following two's domplement binary numbers to decimal. 100101 -5 27 -27 Question 2 (4...
Convert the following two's domplement binary numbers to decimal. 100101 -5 27 -27 Question 2 (4 points) Convert the following two's complement binary numbers to decimal. 100011 -29 36 -3 28 Question 3 (4 points) Convert the following decimal numbers to 6-bit two's complement binary numbers and add them. Indicate whether or not the sum overflows a 6-bit result. 011001+011011 110100; no overflow 100111 100101-001100; overflovw 100110 100100 001010; overflow 100111 + 100101 -001100; no overflow Question 4 (4 points)...
Convert the following two's domplement binary numbers to decimal. 100101 -5 27 -27 Question 2 (4 points) Convert the following two's complement binary numbers to decimal. 100011 -29 36 -3 28 Question 3 (4 points) Convert the following decimal numbers to 6-bit two's complement binary numbers and add them. Indicate whether or not the sum overflows a 6-bit result. 011001+011011 110100; no overflow 100111 100101-001100; overflovw 100110 100100 001010; overflow 100111 + 100101 -001100; no overflow Question 4 (4 points)...
