100 moles/h of methane is burned with 100% excess air. The percent conversion of methane is...

100 moles/h of methane is burned with 100% excess air. The percent conversion of methane is 70%. Of the methane burned, 32% is reacted in partial combustion and the balance reacts in complete combustion. The reaction schemes are shown below:

(1) CH4 + 2O2→ CO2 + 2H2O

(2) CH4 + 3/2O2→ CO + 2H2O

a. Draw a flow chart for this process

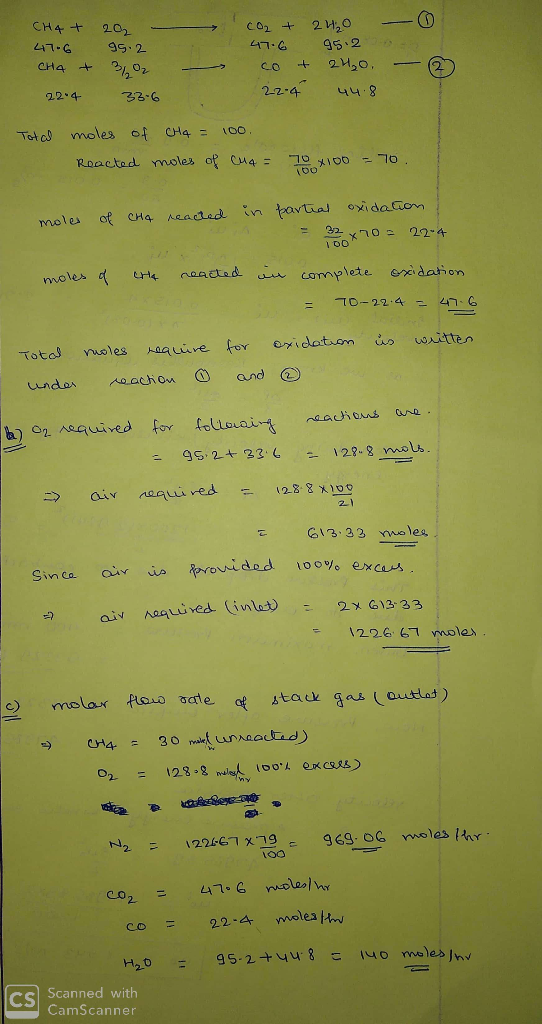

b. Calculate the inlet air flow rate in moles/h

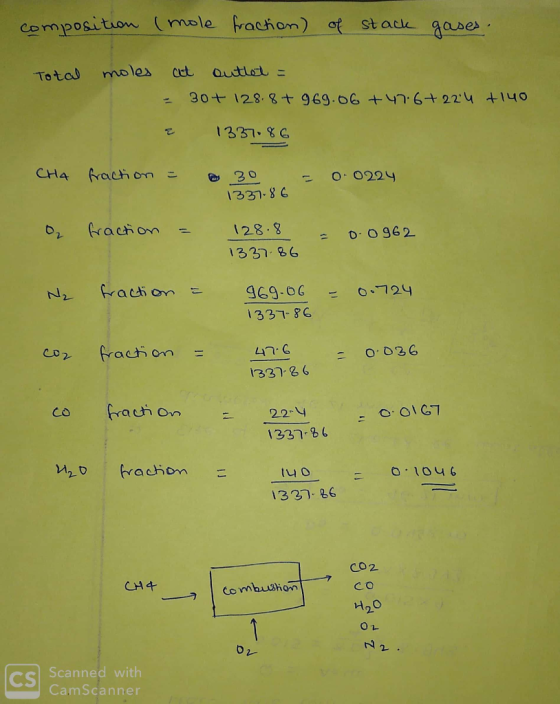

c. Calculate the molar flow rate in moles/h and composition of the stack gas on a wet basis

engineering Chemical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
