Create a GTG to accept the language expression: aa(ab + b)

Question

Question

Create a GTG to accept the language expression: aa*(a*b + b)

engineering Computer-Science

Answer 1

Answer #1

Answer:

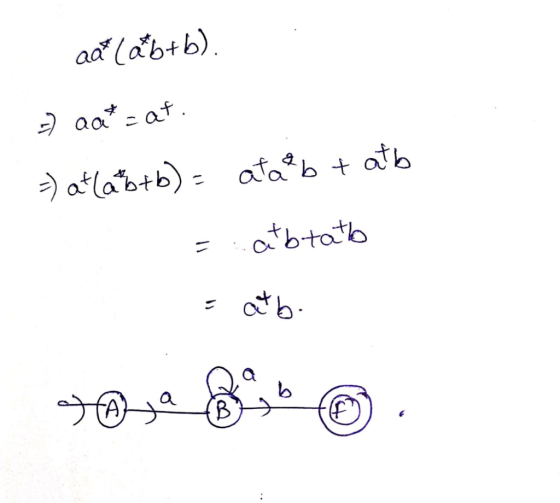

gtg : generalised transition graph. We need to represent the expression in terms of transition graph.

The entire expression would leads to single a followed by any number of a's and ends with b.
