A charge Q is moving in the same direction as a magnetic field B at speed...

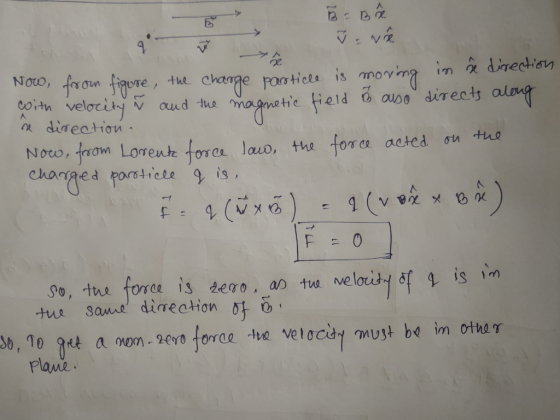

A charge Q is moving in the same direction as a magnetic field B at speed V will experience a force of? 0N. Please explain why and draw it thank you

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A charge Q is moving in the same direction as a magnetic field B at speed...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • i+j+k A charge q moving with speed v enters a region of constant magnetic field given...

    i+j+k A charge q moving with speed v enters a region of constant magnetic field given by B-B The unit vector in the i-23+3 direction of the velocity vector is given by n- If an electric feld E is applied such that the charge experiences zero resultant force while it is moving through the electric magnetic fields, then the unit vector in the direction of the electric field is B)-(4부) i+j+k i-2j+k

  • A charged particle moving through a magnetic field at right angles to the field with a...

    A charged particle moving through a magnetic field at right angles to the field with a speed of 24.7 m/s experiences a magnetic force of 2.38 x 10* N. Determine the magnetic force on an identical particle when it travels through the same magnetic field with a speed of 5.44 m/s at an angle of 26.2° relative to the magnetic field. N What is the maximum force on a rod with a 0.100 C charge that you pass between the...

  • 3) A charged particle is moving with velocity of V in a magnetic field of B,...

    3) A charged particle is moving with velocity of V in a magnetic field of B, which one of the followings is correct: A) The direction of force F on the charge is parallel to magnetic field B B) The direction of force F on the charge is parallel to velocity direction V C) The force is maximized when velocity direction and magnetic field are parallel D) The force F is perpendicular (normal) to both velocity V and magnetic field...

  • The force on a charged particle moving in a magnetic field can be computed as the...

    The force on a charged particle moving in a magnetic field can be computed as the vector sum of the forces due to each separate component of the magnetic field. As an example, a particle with charge q is moving with speed v in the? y-direction. It is moving in a uniform magnetic field Part A What is the x-component of the force F?  exerted on the particle by the magnetic field? Part B What is the y-component of the force...

  • A charge is moving perpendicular to a magnetic field and experiences a force whose magnitude is...

    A charge is moving perpendicular to a magnetic field and experiences a force whose magnitude is 2.57 x 10-3 N. If this same charge were to move at the same speed and the angle between its velocity and the same magnetic field were 36, what would be the magnitude of the magnetic force that the charge would experience?

  • 7. The figure shows a postive charge q 1C moving at speed v- 5m/s in a...

    7. The figure shows a postive charge q 1C moving at speed v- 5m/s in a magnetic field B 3T that points out of the page. What is the magnitude of the force on the charge? What is the direction of the force? 30

  • QUESTION 3 Pictured below is a positive charge q moving in a magnetic field B. What...

    QUESTION 3 Pictured below is a positive charge q moving in a magnetic field B. What is the direction of the magnetic field that would make the force in the direction shown? O To the right O To the left O Into the page 0 out of the page O Up and to the right

  • A charged particle moving through a magnetic field at night angles to the field with a...

    A charged particle moving through a magnetic field at night angles to the field with a speed of 24.7 m/s experiences a magnetic force of 2.78 x 10 N. Determine the magnetic force on an identical particle when it travels through the same magnetic field with a speed of 5.44 m/s at an angle of 31.20 relative to the magnetic field. x How does the magnetic force acting on a charged particle moving through a magnetic field depend on the...

  • A beam of photons (q = +1.6 x 10^-19 C) is moving with various speeds in...

    A beam of photons (q = +1.6 x 10^-19 C) is moving with various speeds in the positive x direction (to the right). It enters a region where there is a uniform magnetic field of magnitude 0.25T pointing in the negative z direction (into the page). a) The protons feel a force due to this magnetic field. Explain why, and indicate the direction of the force. b) Not all protons will feel a force of the same magnitude. Why? c)...

  • 3. The diagram below shows the trajectories of three charged particles moving in a uniform magnetic...

    3. The diagram below shows the trajectories of three charged particles moving in a uniform magnetic field of strength B. The field points into the plane of the paper. The particles are moving in the plane of the paper. The direction in which each particle is moving is shown by the arrows. (a) For each particle, find if the charge is positive or negative (Q>0 or Q<0). Q1: Q2: Q3: (b) Assume all particles have the same velocity (v) and...
