a) n-Butane (C4H10) is burned with stoichiometric air. Heat is removed and the products of combustion...

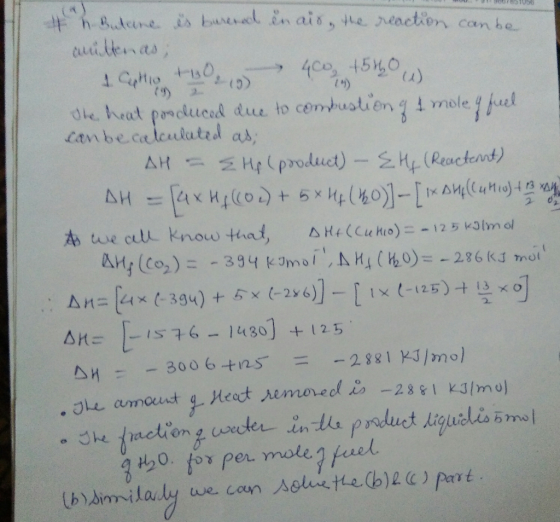

a) n-Butane (C4H10) is burned with stoichiometric air. Heat is removed and the products of combustion are collected at 1 atm pressure and 40°C. How much heat is removed per mole of fuel, and what fraction of the water in the products is liquid?
b) a) n-Butane (C4H10) is burned with an excess of air. Heat is removed and the products of combustion are collected at 1 atm pressure and 40°C. How much air must be used in order to prevent condensation of any water in the products at 40°C? How much heat is removed per mole of fuel?
c) n-Butane (C4H10) is burned with a 5% insufficiency of air (seriously bad combustion). What is the mole fraction of CO in the reaction products? If this combustion process took place in a tightly sealed room the size of Riley Robb 105, which has a volume of about 415 m3, how many moles of butane could be combusted before the CO level in the room rose from normal ambient 1 ppm to 30 ppm, activating the CO detectors?
Homework Answers
Add Answer to:
a) n-Butane (C4H10) is burned with
stoichiometric air. Heat is removed and the products of combustion...
2. A mixture of propane and butane is burned with pure oxygen. The combustion products contain...
2. A mixture of propane and butane is burned with pure oxygen. The combustion products contain 47.4 mole% H2O. After all the water is removed from the products, the residual gas contains 69.4 mole% CO2 and the balance O2. What is the mole percent of propane in the fuel?
Gas n-Butane(C4H10) is burned with 200% theoretical air
Gas n-Butane(C4H10) is burned with 200% theoretical air. The product of combustion exits at 1000k. Determine the heat transfer from the combustion chamber per kmole of fuel.
S. N- Bu tane Fuel is burned with 200 percent theoretical air during a combustion process...
S. N- Bu tane Fuel is burned with 200 percent theoretical air during a combustion process Determine the mass fraction of each product .Calculate air- fuel ratio on mole basis and volumetric analysis of the products
n-Dodecane CHa is burned with 40% excess air during a combustion process. Assuming total combustion and...
n-Dodecane CHa is burned with 40% excess air during a combustion process. Assuming total combustion and a total pressure of 100 kPa, determine: CH Products COMBUSTION CHAMBER 100 kPa Air (40% excess) a) (25%) Write the combustion equation and calculate the air to fuel ratio. AF = kg air kg fuel b) (10%) The partial pressure of the oxygen in the products (assume that all products are ideal gases). Po, kea
Butane gas (C4H10) is burned with 120% of the theoretical air in a steady flow system. The fuel a...
Butane gas (C4H10) is burned with 120% of the theoretical air in a steady flow system. The fuel and air enter separately at 25°C and 1 atm. The reaction goes to completion and the products leave as a mixture at 1 atm and 300°C. The water in the products is a vapor. Determine a. The amount of heat transfer in kJ/kmol of fuel b. The entropy change for the reaction c. The entropy generation for the process
Butane gas (C4H10)...
Butane (C_4H_10) releases 2877 kJ per mole during a standard combustion reaction in air. a. What...
Butane (C_4H_10) releases 2877 kJ per mole during a standard combustion reaction in air. a. What is the balanced thermochemical equation for this reaction? b. How much heat will be released when 200.0 g of butane is burned?
Question 4 Benzene gas (C&H6) at 25 deg C is burned during a steady flow combustion...
Question 4 Benzene gas (C&H6) at 25 deg C is burned during a steady flow combustion process with 95% theoretical air that enters the combustion chamber at 25 deg C. All the hydrogen in the fuel bums to H20, the carbon bums to CO and CO. f the products leave at 1000 K, determine a the mole fraction of the CO in the products [101 the heat transfer from the combustion chamber per kmol of fuel (15] b. (0.021cr
Benzene gas (C6H6) is burned with90%percent theoretical air during a steady-flow combustion proce...
Benzene gas (C6H6) is burned with90%percent theoretical air during a steady-flow combustion process. The mole fraction of the CO in the products is (a) 8.3% (b) 4.7% (c) 2.1% (d) 1.9% (e) 14.3%
Benzene gas (C6H6) is burned with90%percent theoretical air during a steady-flow combustion process. The mole fraction of the CO in the products is (a) 8.3% (b) 4.7% (c) 2.1% (d) 1.9% (e) 14.3%
Propane fuel (C3H8) is burned in a space heater with 65 percent excess air. The fuel and air enter this heater steadily at 1 atm and 17°C, while the combustion products leave at 1 atm and 97°C. Calcu...
Propane fuel (C3H8) is burned in a space heater with 65 percent excess air. The fuel and air enter this heater steadily at 1 atm and 17°C, while the combustion products leave at 1 atm and 97°C. Calculate the heat transferred in this heater, in kJ/kmol fuel. Use data from the tables The heat transfer in the heater iskJ/kmol.
Propane fuel (C3H8) is burned in a space heater with 65 percent excess air. The fuel and air enter this heater...
1 kmol of gas Ethane is burned with 175 percent theoretical air in a steady flow...
1 kmol of gas Ethane is burned with 175 percent theoretical air in a steady flow combustion chamber. An analysis of the combustion gases reveals that all the hydrogen in the fuel burns to H2O but 95 percent of the Carbon burns to CO2 with the remaining 5 percent forming CO. Treating the air as dry air, determine; (a)The balanced combustion equation. (b)The air-fuel ratio. (c)The amount of heat transfer (in kJ/kg of fuel) from the combustion process if the...
2. A mixture of propane and butane is burned with pure oxygen. The combustion products contain 47.4 mole% H2O. After all the water is removed from the products, the residual gas contains 69.4 mole% CO2 and the balance O2. What is the mole percent of propane in the fuel?
S. N- Bu tane Fuel is burned with 200 percent theoretical air during a combustion process Determine the mass fraction of each product .Calculate air- fuel ratio on mole basis and volumetric analysis of the products
n-Dodecane CHa is burned with 40% excess air during a combustion process. Assuming total combustion and a total pressure of 100 kPa, determine: CH Products COMBUSTION CHAMBER 100 kPa Air (40% excess) a) (25%) Write the combustion equation and calculate the air to fuel ratio. AF = kg air kg fuel b) (10%) The partial pressure of the oxygen in the products (assume that all products are ideal gases). Po, kea
Butane gas (C4H10) is burned with 120% of the theoretical air in a steady flow system. The fuel and air enter separately at 25°C and 1 atm. The reaction goes to completion and the products leave as a mixture at 1 atm and 300°C. The water in the products is a vapor. Determine a. The amount of heat transfer in kJ/kmol of fuel b. The entropy change for the reaction c. The entropy generation for the process
Butane gas (C4H10)...
Butane (C_4H_10) releases 2877 kJ per mole during a standard combustion reaction in air. a. What is the balanced thermochemical equation for this reaction? b. How much heat will be released when 200.0 g of butane is burned?
Question 4 Benzene gas (C&H6) at 25 deg C is burned during a steady flow combustion process with 95% theoretical air that enters the combustion chamber at 25 deg C. All the hydrogen in the fuel bums to H20, the carbon bums to CO and CO. f the products leave at 1000 K, determine a the mole fraction of the CO in the products [101 the heat transfer from the combustion chamber per kmol of fuel (15] b. (0.021cr
Benzene gas (C6H6) is burned with90%percent theoretical air during a steady-flow combustion process. The mole fraction of the CO in the products is (a) 8.3% (b) 4.7% (c) 2.1% (d) 1.9% (e) 14.3%
Benzene gas (C6H6) is burned with90%percent theoretical air during a steady-flow combustion process. The mole fraction of the CO in the products is (a) 8.3% (b) 4.7% (c) 2.1% (d) 1.9% (e) 14.3%
Propane fuel (C3H8) is burned in a space heater with 65 percent excess air. The fuel and air enter this heater steadily at 1 atm and 17°C, while the combustion products leave at 1 atm and 97°C. Calculate the heat transferred in this heater, in kJ/kmol fuel. Use data from the tables The heat transfer in the heater iskJ/kmol.
Propane fuel (C3H8) is burned in a space heater with 65 percent excess air. The fuel and air enter this heater...
