Question

(Do algorithm and flowchart)

Q1

Write 2 functions: int reverse (int) which returns reverse of a number and int diff(int, int) which returns difference of two numbers. Using this Write a program to find whether a number given as input is palindrome or not

Answer 1

As mentioned that only algorithm and flowchart is needed for the question the solution to the problem goes as follows:

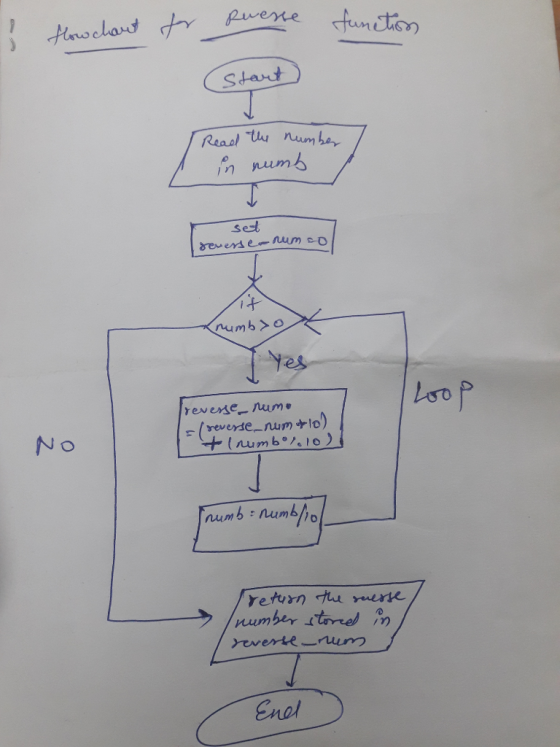

1) Reverse function.

algorithm: int reverse (int)

input: An integer value let say numb.

step1: read the value of numb that is passed as the parameter.

step2: initialize reverse_num =0

step3: start a loop that while numb>0

                    (i) Multiply the reverse_num by 10 and add remainder of numb divided by 10 to reverse_num

                                reverse_num = reverse_num * 10 + numb%10;

                    (ii) Divide the numb by 10

           end of the loop

step4: return reverse_num

2) Difference function

algorithm: int diff(int, int)

input: two integer values num1 and num2

step1: Read the values of the integers passed as the parameters.

step2: initialize difference = 0

step3: difference = num1 -num2 // abs(num1-num2) can be used if only positive value of difference is required.

step4: return difference

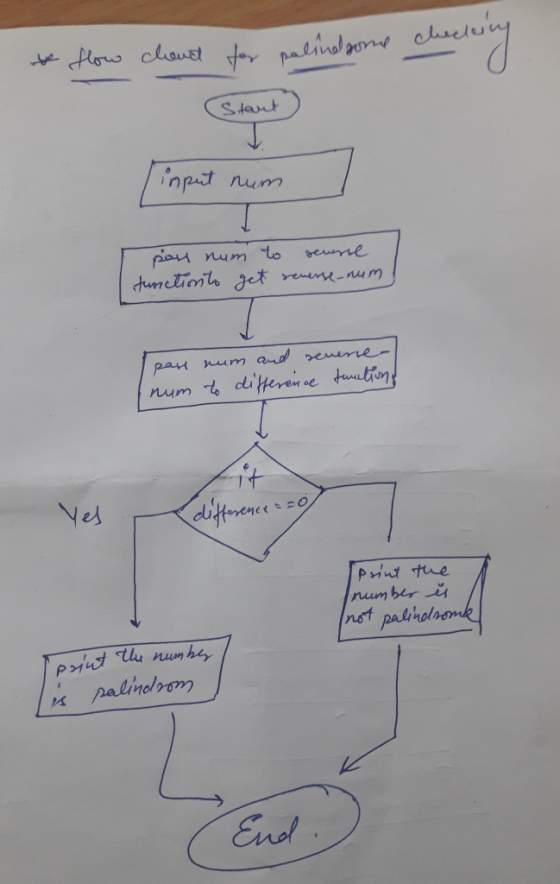

# Checking palindrome using above two functions:

Algorithm:

input: an integer value let say num

step1: Read the value of integer num.

step1: pass num to the reverse function we wrote above // int reverse( int num)

step3: Step 2 will return us an integer reverse_num

step4: Pass num and reverse_num as the parameter to the difference function we wrote above // int diff(int num, int reverse_num)

step5: now step 4 will return us an integer difference

                      if(difference==0):

                              print that the number is a palindrome

                      else:

                               print the number is not a palindrome

End of the program.
