Consider a RLC series circuit connected to a 220 V rms voltage source with a frequency...

Consider a RLC series circuit connected to a 220 V rms voltage source with a frequency of 120 Hz. WhatConsider a RLC series circuit connected to a 220 V rms voltage source with a frequency of 120 Hz. What is the peak current through the circuit if R = 250Ω, C = 90 μF, and L = 4.5 mH?is the peak current through the circuit if R = 250Ω, C = 90 μF, and L = 4.5 mH?

A. 1.24 A

B. 0.62 A

C. 9.7 A

D. 0.88 A

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

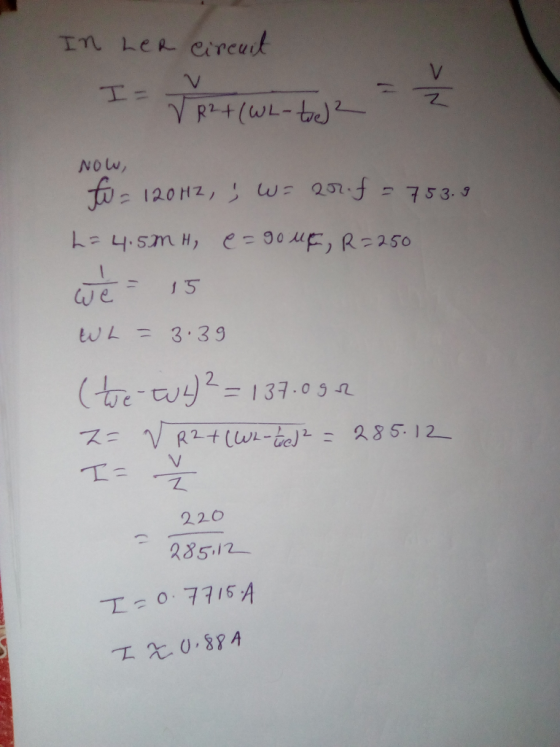

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Consider a RLC series circuit connected to a 220 V rms voltage source with a frequency...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 1) What is the power outlet for an rms voltage of a standard 220 V? 2)...

    1) What is the power outlet for an rms voltage of a standard 220 V? 2) Consider a driven RLC series AC circuit. At frequency f1 the capacitive reactance is twice the inductive reactance. Determine frequency f2 as a function of f1 so that the inductive reactance is twice the capacitive reactance. 3) A standard 120V ac source, connecting wires, and two ideal identical transformers are available. Each transformer has a different number of turns in the two coils. How...

  • 12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with...

    12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with L = 20.0 mH, C = 130.0 μF, and R = 32.0 Ω. (a) What is the impedance of the circuit? Ω (b) What is the maximum current in the circuit? A 11.An AC power source has an rms voltage of 120 V and operates at a frequency of 60.0 Hz. If a purely inductive circuit is made from the power source and a...

  • A 120 V rms voltage source with f = 30 Hz drives an RLC series circuit...

    A 120 V rms voltage source with f = 30 Hz drives an RLC series circuit with a L=870 μH What is the capacitance which will produce the maximum current through the circuit? Select one: a. 32 mF b. 8.1 mF c. 230 μF230 μF d. 0.23 F

  • A 130 V (rms), 62 Hz power supply is connected to an RLC series circuit with...

    A 130 V (rms), 62 Hz power supply is connected to an RLC series circuit with R = 145 Ω , L = 1.35 mH , and C = 31.0 μF . Part A: Find the reactance of the capacitor Part B: Find the reactance of the inductor Part C: Find the circuit impedance Part D: Find the peak current

  • Find the rms voltage across each element in an RLC circuit with R = 9.4 kΩ...

    Find the rms voltage across each element in an RLC circuit with R = 9.4 kΩ , C = 0.15 μF , and L = 24 mH . The generator supplies an rms voltage of 120 V at a frequency of 65.0 Hz .

  • An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency...

    An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, 180 ohm resistor, 200mH inductor, and a 900 micro-F capacitor, all wired in series. A) What is inductive reactance of the circuit? B) What is the capacitive reactance of the circuit?C) What is the impedance  of the circuit? D)What is RMS current in the circuit?E) If the frequency is adjustable what frequency should you use to maximize the current in the circuit?

  • QUESTION 29 An RLC circuit consists of an alternating voltage source with RMS voltage 130 V...

    QUESTION 29 An RLC circuit consists of an alternating voltage source with RMS voltage 130 V and frequency 65 Hz, a 90 Ohm resistor, a 130 mH inductor, and a 200 micro-F capacitor, all wired in series. a) What is the inductive reactance of the circuit? b) What is the capacitive reactance of the circuit? c) What is the impedance of the circuit? d) What is the RMS current in the circuit? e) If the frequency is adjustable, what frequency...

  • An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz

    An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, a 180 Ohm resistor a 200 ml inductor, and a 900 micro-F capacitor, all wired in series. a) What is the inductive reactance of the circuit? b) What is the capacitive reactance of the circuit? c) What is the Impedance of the circuit? d) What is the RMS current in the circuit? e) of the frequency is adjustable, what frequency should you use to maximize the current...

  • Generator An AC generator supplies an rms voltage of 220 V at 50.0 Hz. It is...

    Generator An AC generator supplies an rms voltage of 220 V at 50.0 Hz. It is connected in series with a 0.700 H inductor, a 5.20 μF capacitor and a 401 Ω resistor. What is the impedance of the circuit? What is the rms current through the resistor? What is the average power dissipated in the circuit? What is the peak current through the resistor? What is the peak voltage across the inductor? What is the peak voltage across the...

  • Find the rms voltage across each element in an RLC circuit with R = 9.0 kΩ...

    Find the rms voltage across each element in an RLC circuit with R = 9.0 kΩ , C = 0.14 μF , and L = 26 mH . The generator supplies an rms voltage of 150 V at a frequency of 55.0 Hz . Answer in V
