Find the rms voltage across each element in an RLC circuit with R = 9.4 kΩ...

Find the rms voltage across each element in an RLC circuit with R = 9.4 kΩ , C = 0.15 μF , and L = 24 mH . The generator supplies an rms voltage of 120 V at a frequency of 65.0 Hz .

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

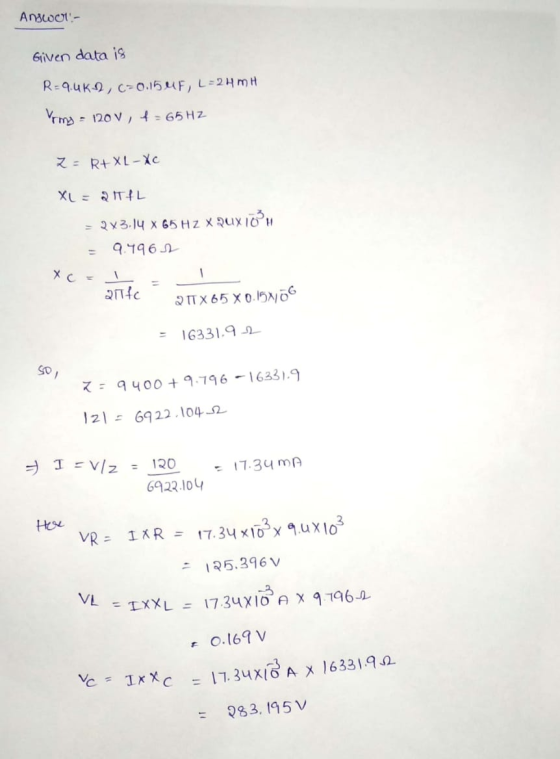

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Find the rms voltage across each element in an RLC circuit with R = 9.4 kΩ...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Part A Find the rms voltage across each element in an RLC circuit with R =...

    Part A Find the rms voltage across each element in an RLC circuit with R = 9.4 kΩ , C = 0.15 μF , and L = 27 mH . The generator supplies an rms voltage of 150 V at a frequency of 65.0 Hz . Express your answers using two significant figures. Enter your answers numerically separated by commas. VR,VL,VC =   V

  • Find the rms voltage across each element in an RLC circuit with R = 9.0 kΩ...

    Find the rms voltage across each element in an RLC circuit with R = 9.0 kΩ , C = 0.14 μF , and L = 26 mH . The generator supplies an rms voltage of 150 V at a frequency of 55.0 Hz . Answer in V

  • Find the rms voltage across each element in an R$LC circuit with R = 9.9 k...

    Find the rms voltage across each element in an R$LC circuit with R = 9.9 k Ohm, C = 0.14 mu F, and L = 27 mH. The generator supplies an rms voltage of 110 V at a frequency of 650 Hz.

  • QUESTION 1: Find the rms voltage across each element in an RLC circuit with R =...

    QUESTION 1: Find the rms voltage across each element in an RLC circuit with R = 9.5kohms , C = 0.15?F , and L = 23mH . The generator supplies an rms voltage of 120V at a frequency of 60.0Hz . VR,VL,VC = QUESTION 2: What is the phase angle in an RLC circuit with R = 9.5k? , C = 1.7?F , and L = 240mH ? The generator supplies an rms voltage of 115V at a frequency of...

  • Find the rms voltage across each element in an RLF circuit with R = 8.8kῼ, C...

    Find the rms voltage across each element in an RLF circuit with R = 8.8kῼ, C = 0.12 uF, and L = 28 mH. The generator supplies an rms voltage of 115 V at a frequency of 60.0 hZ. Please show all work and include the appropriate units throughout.

  • Consider a RLC series circuit connected to a 220 V rms voltage source with a frequency...

    Consider a RLC series circuit connected to a 220 V rms voltage source with a frequency of 120 Hz. WhatConsider a RLC series circuit connected to a 220 V rms voltage source with a frequency of 120 Hz. What is the peak current through the circuit if R = 250Ω, C = 90 μF, and L = 4.5 mH?is the peak current through the circuit if R = 250Ω, C = 90 μF, and L = 4.5 mH? A. 1.24...

  • (a) In an RLC circuit, can the amplitude of the voltage across an inductor be greater...

    (a) In an RLC circuit, can the amplitude of the voltage across an inductor be greater than the amplitude of the generator emf? (b) Consider an RLC circuit with driving emf amplitude Εm = 12 V, resistance R = 10 Ω, inductance L = 0.8 H, and capacitance C = 1.0 μF. Find the amplitude of the voltage across the inductor at resonance.

  • A) At resonance, the rms current in an RLC circuit is 2.2 A . If the...

    A) At resonance, the rms current in an RLC circuit is 2.2 A . If the rms voltage of the generator is 140 V , what is the resistance, R? in Ohms B) An RLC circuit has a resonance frequency of 2.2 kHz . If the capacitance is 50 μF , what is the inductance? uH

  • 12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with...

    12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with L = 20.0 mH, C = 130.0 μF, and R = 32.0 Ω. (a) What is the impedance of the circuit? Ω (b) What is the maximum current in the circuit? A 11.An AC power source has an rms voltage of 120 V and operates at a frequency of 60.0 Hz. If a purely inductive circuit is made from the power source and a...

  • 1 ) A series circuit consisted of R= 10 KΩ, L= 42 mH , C= 2.1...

    1 ) A series circuit consisted of R= 10 KΩ, L= 42 mH , C= 2.1 µF is connected to an alternative voltage with maximum voltage of Vm = 24 V and frequency of 300.0 Hz. Find the following: Show the formula for each question. Show your Calculations – put result in a box with its unit. Please write your answer under each question a)Find the value of angular frequency ω . b) Inductive Reactance ( XL) c)Capacitive Reactance (...
