Part A

Find the rms voltage across each element in an RLC circuit with R = 9.4 kΩ , C = 0.15 μF , and L = 27 mH . The generator supplies an rms voltage of 150 V at a frequency of 65.0 Hz .

Express your answers using two significant figures. Enter your answers numerically separated by commas.
VR,VL,VC =   V
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

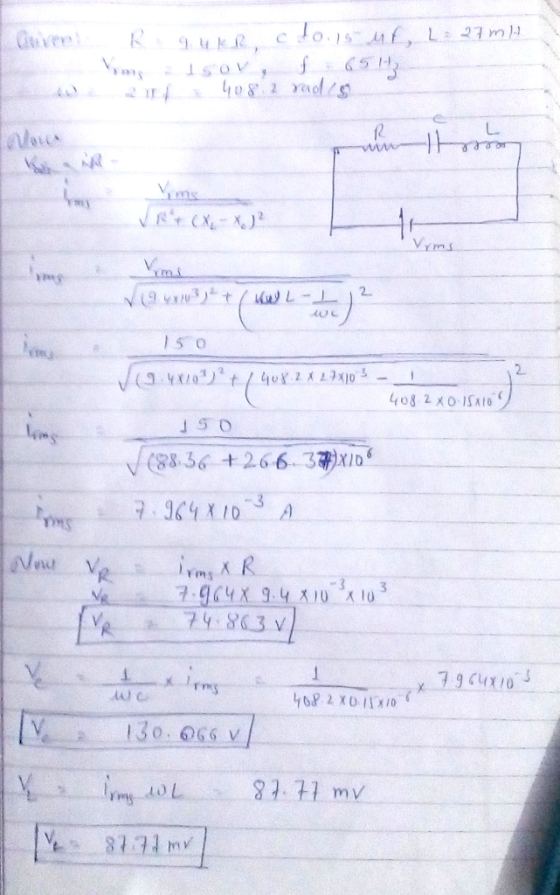

27 m 5 o 2. ?50 9 10 A 79 863 v 81. 1 my ?) 81m Note here voltage across capacitor can be found by adding the voltage across resistor and inductor and then subtract by battery emf.
