Using the Dalton model calculate the absolute humidity (in kg H2O/kg Dry Air) of an air-water...

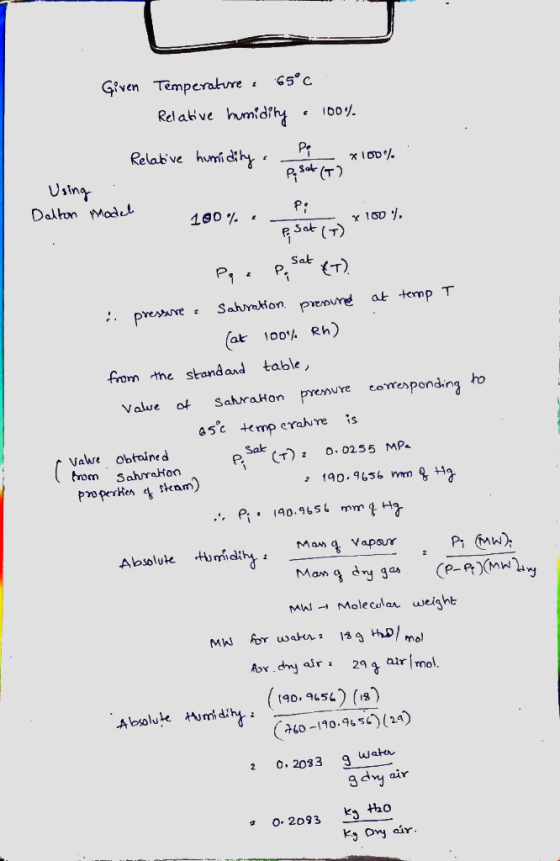

Using the Dalton model calculate the absolute humidity (in kg H2O/kg Dry Air) of an air-water mixture at 100% relative humidity and 1 bar pressure at 65 Deg C
Homework Answers
Add Answer to:
Using the Dalton model calculate the absolute humidity (in kg
H2O/kg Dry Air) of an air-water...
absolute humidity at atmospheric pressure at 27 C is 0.011 kg water / dry air determine:...
absolute humidity at atmospheric pressure at 27 C is 0.011 kg water / dry air determine: a. water vapor partial pressure (kPa) b. relative humidity (%) c. dew point temperature (C)
Please show all work 1 out of 3 attem A tank contains 23.07 kg of dry air and 0.238 kg of water vapor at 30°C and 97 kPa total pressure. Determine (a) the specific humidity kg H2O/kg dry air (Round y...
Please show all work 1 out of 3 attem A tank contains 23.07 kg of dry air and 0.238 kg of water vapor at 30°C and 97 kPa total pressure. Determine (a) the specific humidity kg H2O/kg dry air (Round your answer to four decimal places) (b) the relative humidity, % (Round your answer to one decimal place) and (c) the volume of the tank. 3 m (Round your answer to one decimal place) 1 out of 3 attem A...
stream consisting of 130 m'/min of moist air at a rature of 8°C and a humidity ratio of 0.0015 kg(vapor)/ dry a...
stream consisting of 130 m'/min of moist air at a rature of 8°C and a humidity ratio of 0.0015 kg(vapor)/ dry air) is mixed adiabatically with a second stream 12 températ Kgl ting of 400 m3/min of moist air at 25°C and 40% relative humidity. The pressure is constant throughout at 1 bar. Using the psychrometric chart, determine (a) the humidity ratio and (b) the temperature of the exiting mixed stream, in °C
stream consisting of 130 m'/min of moist...
2- Air at 39.5 °C and humidity ratio of 9 (grams /kg dry air) is humidified...
2- Air at 39.5 °C and humidity ratio of 9 (grams /kg dry air) is humidified adiabatically to 70% relative humidity (sea-level pressure). Liquid water is supplied at 70 °C for humidification (hf = 293 kJ/kg, hg = 2626.1 kJ/kg) Determine: a) The initial wet bulb temperature b) The initial relative humidity c) The initial density d) The final wet bulb temperature e) The final density f) The final dry bulb temperature
Question 6 (a) Define specific humidity w and hence prove that 0-0.62 where P is the...
Question 6 (a) Define specific humidity w and hence prove that 0-0.62 where P is the total pressure of the humid air and P, is the partial pressure of the vapour. (8 marks) (b) An air-water vapour mixture enters an air-conditioning unit at 1.013 bar, 30°C, with a relative humidity (RH) of 90%. The air-vapour mixture leaves the cooling coil at 1.013 bar, 15°C, with a relative humidity of 100%, and liquid condensate also leaves the coil at 15°C. Calculate:...
a) Define relative humidity (2 marks) b) Describe the relation between relative humidity, the capacity of...
a) Define relative humidity (2 marks) b) Describe the relation between relative humidity, the capacity of air to hold moisture a ambient temperature. (2 marks) c) Moist air at 22°C and a wet bulb temperature of 9°C enters a steam spray humidifier. The mass flow of the dry air is 90 kg/min. Saturated water vapor at 110 °C is injected into the mixture at a rate of 52 kg/hr. There is no heat transfer with the surroundings, and the pressure...
1. (relative humidity) The partial pressure of water vapor in air is usually less than the...
1. (relative humidity) The partial pressure of water vapor in air is usually less than the equilibrium vapor pressure (or saturation pressure) at the ambient temperature; this is why a cup of water will spontaneously evaporate. The ratio of the partial pressure of water vapor to the equilibrium vapor pressure (at the same temperature) is called the relative humidity. Saturated air, at 100% relative humidity, would be in equilibrium with a cup of liquid water. The saturation pressure depends strongly...
An air-water vapor mixture enters a heater-humidifier unit at 5°C, 100 kPa, 50% rh. The flow rate of dry air is 0.1 kg/s. Liquid water at 10°C is sprayed into the mixture al the rate of 0.0022 kg/s. The mixture leaves the unit at 30°C, 100 kPa. Calculate
An air-water vapor mixture enters a heater-humidifier unit at 5°C, 100 kPa, 50% rh. The flow rate of dry air is 0.1 kg/s. Liquid water at 10°C is sprayed into the mixture al the rate of 0.0022 kg/s. The mixture leaves the unit at 30°C, 100 kPa. Calculate (a) the relative humidity at the outlet (b) the rate of heat transfer to the unit
Air is at 1 atm, 40°C, and 20 percent relative humidity. Water at 22°C is evaporated...
Air is at 1 atm, 40°C, and 20 percent relative humidity. Water
at 22°C is evaporated into this air to produce air at 25°C and 80
percent relative humidity. How much water, in kg H2O/kg dry air, is
required and how much cooling, in kJ/kg dry air, has been produced?
Use data from the tables.
Please help solve the amount
of cooling produced. I believe I am reading the psychrometric chart
incorrectly
Water T c Humidifier 1 atm 40? 20%...
A gas mixture with id entical mass fractions for each component will have the identical mole frac...
please provide me with the solutions as fast as possible
A gas mixture with id entical mass fractions for each component will have the identical mole fractions 1. T F as well. T F 2. The sum of the mass fractions for a real-gas mixture is equal to 1 The molar mass of Methane is 0.5182 kg/kmol. 3. A real-gas mixture has a compressibility factor of 0.49. Using the ideal gas relationship, 4. the volume of the mixture b. Underestimates...
stream consisting of 130 m'/min of moist air at a rature of 8°C and a humidity ratio of 0.0015 kg(vapor)/ dry air) is mixed adiabatically with a second stream 12 températ Kgl ting of 400 m3/min of moist air at 25°C and 40% relative humidity. The pressure is constant throughout at 1 bar. Using the psychrometric chart, determine (a) the humidity ratio and (b) the temperature of the exiting mixed stream, in °C
stream consisting of 130 m'/min of moist...
Question 6 (a) Define specific humidity w and hence prove that 0-0.62 where P is the total pressure of the humid air and P, is the partial pressure of the vapour. (8 marks) (b) An air-water vapour mixture enters an air-conditioning unit at 1.013 bar, 30°C, with a relative humidity (RH) of 90%. The air-vapour mixture leaves the cooling coil at 1.013 bar, 15°C, with a relative humidity of 100%, and liquid condensate also leaves the coil at 15°C. Calculate:...
a) Define relative humidity (2 marks) b) Describe the relation between relative humidity, the capacity of air to hold moisture a ambient temperature. (2 marks) c) Moist air at 22°C and a wet bulb temperature of 9°C enters a steam spray humidifier. The mass flow of the dry air is 90 kg/min. Saturated water vapor at 110 °C is injected into the mixture at a rate of 52 kg/hr. There is no heat transfer with the surroundings, and the pressure...
1. (relative humidity) The partial pressure of water vapor in air is usually less than the equilibrium vapor pressure (or saturation pressure) at the ambient temperature; this is why a cup of water will spontaneously evaporate. The ratio of the partial pressure of water vapor to the equilibrium vapor pressure (at the same temperature) is called the relative humidity. Saturated air, at 100% relative humidity, would be in equilibrium with a cup of liquid water. The saturation pressure depends strongly...
Air is at 1 atm, 40°C, and 20 percent relative humidity. Water
at 22°C is evaporated into this air to produce air at 25°C and 80
percent relative humidity. How much water, in kg H2O/kg dry air, is
required and how much cooling, in kJ/kg dry air, has been produced?
Use data from the tables.
Please help solve the amount
of cooling produced. I believe I am reading the psychrometric chart
incorrectly
Water T c Humidifier 1 atm 40? 20%...
please provide me with the solutions as fast as possible
A gas mixture with id entical mass fractions for each component will have the identical mole fractions 1. T F as well. T F 2. The sum of the mass fractions for a real-gas mixture is equal to 1 The molar mass of Methane is 0.5182 kg/kmol. 3. A real-gas mixture has a compressibility factor of 0.49. Using the ideal gas relationship, 4. the volume of the mixture b. Underestimates...
