Water steam is running through the nozzle. Inlet pressure is P1=25 bars; T1=300C; V1=90m/s; A1=0.2m2. The...
- Water steam is running through the nozzle. Inlet pressure is P1=25 bars; T1=300C; V1=90m/s; A1=0.2m2. The exit parameters are: P2=11bars; T2=210C. The mass flow rate is m=2 kg/s.
Determine:
- Exit velocity V2=?;
Inlet and outlet diameters D1 and D2
Homework Answers
Add Answer to:
Water steam is running through the nozzle. Inlet pressure is
P1=25 bars; T1=300C; V1=90m/s; A1=0.2m2. The...
4-1-30 [WX] An adiabatic steam nozzle operates steadily under the following conditions. Inlet: superheated vapor, p1...
4-1-30 [WX] An adiabatic steam nozzle operates steadily under the following conditions. Inlet: superheated vapor, p1 = 1 MPa, T1 = 300°C, A1 78.54 cm2; Exit: saturated vapor, p2 = 100 kPa. Determine (a) the exit velocity (V2) in m/s, (b) the rate of entropy Solution] [Discuss] generation (Šgen) in kW/K. The mass flow rate (m is 1 kg/s.
The axial flow steam turbine rotor shown in Fig. P12.69 has a blade outer radius RO 2.40 ft, a blade inner radius Ri 2.00 ft, a steam inlet pressure p1 200 psia, a steam inlet density p1- 0.296 lbm/t...
The axial flow steam turbine rotor shown in Fig. P12.69 has a blade outer radius RO 2.40 ft, a blade inner radius Ri 2.00 ft, a steam inlet pressure p1 200 psia, a steam inlet density p1- 0.296 lbm/t3, and an inlet absolute velocity V1 1000 f/s making an angle of 70° with the axial direction. The steam outlet pressure p2 50 psia and outlet density is 0.1014 Ibm/t3. B2 40 The rotor rotates at 3600 rpm. Using a blade...
Steam flows through the nozzle shown in the diagram below. What is the exit temperature and...
Steam flows through the nozzle shown in the diagram below. What
is the exit temperature and the ratio of the inlet and outlet area
(A1/A2)? (Hint: use the energy equation to start)

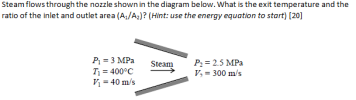

Steam flows through the nozzle shown in the diagram below. What is the exit temperature and the ratio of the inlet and outlet area (A/A)? (Hint: use the energy equation to start) 120) P1 = 3 MPa T, = 400°C = 40 m/s P2 = 2.5 MPa ,...
A steam turbine operates with P1 = 5 MPa and T1 = 600 °C at the...
A steam turbine operates with P1 = 5 MPa and T1 = 600 °C at the
inlet, an exit pressure of P2 = 100 kPa, a mass flow rate of ?̇ =
100 kg/s, and an isentropic efficiency of η = 85%. Complete a
thermodynamic analysis of the turbine, using the appropriate data
for water, by finding: (A) The temperature at the exit, T2, (B) the
work produced by the turbine, ?̇ ?, and (C) the rate of entropy
production...
A control volume operating at steady state has one inlet and two exits. Steam enters inlet...
A control volume operating at steady state has one inlet and two exits. Steam enters inlet 1 and sat. vapor at 2 bar exits exit 2 and sat. liquid at 2 bars exits exit 3 Using the data given, determine [a] the mass flow rate at the inlet state 1, in kg/sec, [b] the mass flow rate at exit state 2, in kg/sec, and [c] area required at exit 2 to ensure velocity is same as velocity at inlet 1...
Water flows steadily through a curved duct that turns the flow through angle = 135 degrees,...
Water flows steadily through a curved duct that turns the flow
through angle = 135 degrees, as shown in Fig. 3. The
cross-sectional area of the duct changes from A1 = 0.025 m2 at the
inlet to A2 = 0.05 m2 at the outlet. The average velocity at the
duct inlet is V1 = 6 m/s. The momentum flux correction factor may
be taken as 1 = 1.01 at the duct inlet and 2 = 1.03 at the its
outlet....
Water flows steadily through a curved duct that turns the flow through angle @= 135º, as...
Water flows steadily through a curved duct that turns the flow through angle @= 135º, as shown in Fig. 3. The cross-sectional area of the duct changes from A1 = 0.025 m² at the inlet to A2 = 0.05 m’ at the outlet. The average velocity at the duct inlet is V1 = 6 m/s. The momentum flux correction factor may be taken as B1 = 1.01 at the duct inlet and B2 = 1.03 at the its outlet. The...
At the inlet of a conical diffuser, the air velocity, C1 = 150 m/s, static pressure,...
At the inlet of a conical diffuser, the air velocity, C1 = 150 m/s, static pressure, P1 = 100 kPa and static temperature, T1 = 280 K. The entry and exit diameters of the diffuser are 10 cm and 15 cm respectively. The value of the diffuser efficiency is 0.90, defined as _Tzs - T NDT.-T Calculate the exit velocity, C2, P2 and APO. NOTE: This problem also reviews the use of the isentropic flow tables covered in MECH-3220 (06-92-320)...
Your boss would like to connect a high temperature and pressure stream of steam (from another...
Your boss would like to connect a high temperature and pressure stream of steam (from another unit at the plant site) to a turbine that will be operated adiabatically and will serve as an energy source for a small electric generator. The steam is at T1 = 600 C and P1 = 10 bar. The outlet conditions of the turbine must be T2 = 400 C and P2 = 1 bar. The inlet diameter to the pipe connecting to the...
Air flows through a converging-diverging nozzle/diffuser. Assuming isentropic flow, air as an ideal gas, and constant...
Air flows through a converging-diverging nozzle/diffuser. Assuming isentropic flow, air as an ideal gas, and constant specific heats determine the state at several locations in the system. Solve using equations rather than with the tables. Note: The specific heat ratio and gas constant for air are given as k=1.4 and R=0.287 kJ/kg-K respectively. --Given Values-- Inlet Temperature: T1 (K) = 321 Inlet pressure: P1 (kPa) = 588 Inlet Velocity: V1 (m/s) = 97 Area at nozzle inlet: A1 (cm^2) =...
4-1-30 [WX] An adiabatic steam nozzle operates steadily under the following conditions. Inlet: superheated vapor, p1 = 1 MPa, T1 = 300°C, A1 78.54 cm2; Exit: saturated vapor, p2 = 100 kPa. Determine (a) the exit velocity (V2) in m/s, (b) the rate of entropy Solution] [Discuss] generation (Šgen) in kW/K. The mass flow rate (m is 1 kg/s.
The axial flow steam turbine rotor shown in Fig. P12.69 has a blade outer radius RO 2.40 ft, a blade inner radius Ri 2.00 ft, a steam inlet pressure p1 200 psia, a steam inlet density p1- 0.296 lbm/t3, and an inlet absolute velocity V1 1000 f/s making an angle of 70° with the axial direction. The steam outlet pressure p2 50 psia and outlet density is 0.1014 Ibm/t3. B2 40 The rotor rotates at 3600 rpm. Using a blade...
Steam flows through the nozzle shown in the diagram below. What
is the exit temperature and the ratio of the inlet and outlet area
(A1/A2)? (Hint: use the energy equation to start)
Steam flows through the nozzle shown in the diagram below. What is the exit temperature and the ratio of the inlet and outlet area (A/A)? (Hint: use the energy equation to start) 120) P1 = 3 MPa T, = 400°C = 40 m/s P2 = 2.5 MPa ,...
A steam turbine operates with P1 = 5 MPa and T1 = 600 °C at the
inlet, an exit pressure of P2 = 100 kPa, a mass flow rate of ?̇ =
100 kg/s, and an isentropic efficiency of η = 85%. Complete a
thermodynamic analysis of the turbine, using the appropriate data
for water, by finding: (A) The temperature at the exit, T2, (B) the
work produced by the turbine, ?̇ ?, and (C) the rate of entropy
production...
Water flows steadily through a curved duct that turns the flow
through angle = 135 degrees, as shown in Fig. 3. The
cross-sectional area of the duct changes from A1 = 0.025 m2 at the
inlet to A2 = 0.05 m2 at the outlet. The average velocity at the
duct inlet is V1 = 6 m/s. The momentum flux correction factor may
be taken as 1 = 1.01 at the duct inlet and 2 = 1.03 at the its
outlet....
Water flows steadily through a curved duct that turns the flow through angle @= 135º, as shown in Fig. 3. The cross-sectional area of the duct changes from A1 = 0.025 m² at the inlet to A2 = 0.05 m’ at the outlet. The average velocity at the duct inlet is V1 = 6 m/s. The momentum flux correction factor may be taken as B1 = 1.01 at the duct inlet and B2 = 1.03 at the its outlet. The...
At the inlet of a conical diffuser, the air velocity, C1 = 150 m/s, static pressure, P1 = 100 kPa and static temperature, T1 = 280 K. The entry and exit diameters of the diffuser are 10 cm and 15 cm respectively. The value of the diffuser efficiency is 0.90, defined as _Tzs - T NDT.-T Calculate the exit velocity, C2, P2 and APO. NOTE: This problem also reviews the use of the isentropic flow tables covered in MECH-3220 (06-92-320)...
