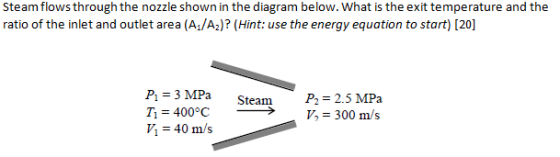

Steam flows through the nozzle shown in the diagram below. What is the exit temperature and the ratio of the inlet and outlet area (A1/A2)? (Hint: use the energy equation to start)
Homework Answers
Add Answer to:
Steam flows through the nozzle shown in the diagram below. What
is the exit temperature and...
Water steam is running through the nozzle. Inlet pressure is P1=25 bars; T1=300C; V1=90m/s; A1=0.2m2. The...
Water steam is running through the nozzle. Inlet pressure is P1=25 bars; T1=300C; V1=90m/s; A1=0.2m2. The exit parameters are: P2=11bars; T2=210C. The mass flow rate is m=2 kg/s. Determine: Exit velocity V2=?; Inlet and outlet diameters D1 and D2
thermodynamics Thermodynamics P5.31: - Steam at 3 MPa and 400°C enters an adiabatic nozle steadily with...
thermodynamics
Thermodynamics
P5.31: - Steam at 3 MPa and 400°C enters an adiabatic nozle steadily with a velocity of 40 m/s and leaves at 2.5 MPa and 300 m/s. Determine (a) the exit temperature (b) the ratio of the inlet to exit area A1/A2. P5.64:- Refrigerant-134a at 800 kPa and 25°C is throttled to a temperature of 220°C. Determine the pressure and the internal energy of the refrigerant at the final state P1-0.8 MPa
Water flows steadily through a curved duct that turns the flow through angle @= 135º, as...
Water flows steadily through a curved duct that turns the flow through angle @= 135º, as shown in Fig. 3. The cross-sectional area of the duct changes from A1 = 0.025 m² at the inlet to A2 = 0.05 m’ at the outlet. The average velocity at the duct inlet is V1 = 6 m/s. The momentum flux correction factor may be taken as B1 = 1.01 at the duct inlet and B2 = 1.03 at the its outlet. The...
Water flows steadily through a curved duct that turns the flow through angle = 135 degrees,...
Water flows steadily through a curved duct that turns the flow
through angle = 135 degrees, as shown in Fig. 3. The
cross-sectional area of the duct changes from A1 = 0.025 m2 at the
inlet to A2 = 0.05 m2 at the outlet. The average velocity at the
duct inlet is V1 = 6 m/s. The momentum flux correction factor may
be taken as 1 = 1.01 at the duct inlet and 2 = 1.03 at the its
outlet....
2. Air enters an isothermal nozzle at a temperature of 300 K, and a velocity of...
2. Air enters an isothermal nozzle at a temperature of 300 K, and a velocity of 10 m/s. The nozzle is very poorly insulated, causing a stray heat transfer rate of 10 kW into the system. The outlet of the nozzle is exposed to an ambient pressure of 1 bar and is choked (Mach 1. If the area ratio of the nozzle (A1/A2) is 5, what is: a. The velocity of the nozzle outlet, in [m/s], if the specific heat...
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 6 MPa,...
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 6 MPa, 400°C, and 80 m/s, and the exit conditions are 40 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 20 kg/s. Determine (a ) the change in kinetic energy, (b) the power output, and (c) the turbine inlet area.
Steam flows through a turbine. The inlet conditions of the steam are 4 MPa, 500 ,...
Steam flows through a turbine. The inlet conditions of the steam are 4 MPa, 500 , and 80 m/s and the exit conditions are 30 kPa, 92 percent quality and 50 m/s. The mass flow rate of the steam is 12 kg/s and the heat loss from the turbine body to environment is 1 MW. Determine (a) the change in kinetic energy, (b) the power output, and (c) the turbine inlet area
4-1-30 [WX] An adiabatic steam nozzle operates steadily under the following conditions. Inlet: superheated vapor, p1...
4-1-30 [WX] An adiabatic steam nozzle operates steadily under the following conditions. Inlet: superheated vapor, p1 = 1 MPa, T1 = 300°C, A1 78.54 cm2; Exit: saturated vapor, p2 = 100 kPa. Determine (a) the exit velocity (V2) in m/s, (b) the rate of entropy Solution] [Discuss] generation (Šgen) in kW/K. The mass flow rate (m is 1 kg/s.
Steam flows steadily through an adiabatic turbine
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 4 MPa, 500°C, and 80 m/s, and the exit conditions are 30 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 12 kg/s. Determine a. (3) Change in kinetic energy (-23.4 kJ) b. (4) Power output (12.12 MW) c. (3) Turbine inlet area (0.012966 m2)
Air flows through a converging-diverging nozzle/diffuser. Assuming isentropic flow, air as an ideal gas, and constant...
Air flows through a converging-diverging nozzle/diffuser. Assuming isentropic flow, air as an ideal gas, and constant specific heats determine the state at several locations in the system. Solve using equations rather than with the tables. Note: The specific heat ratio and gas constant for air are given as k=1.4 and R=0.287 kJ/kg-K respectively. --Given Values-- Inlet Temperature: T1 (K) = 321 Inlet pressure: P1 (kPa) = 588 Inlet Velocity: V1 (m/s) = 97 Area at nozzle inlet: A1 (cm^2) =...
thermodynamics
Thermodynamics
P5.31: - Steam at 3 MPa and 400°C enters an adiabatic nozle steadily with a velocity of 40 m/s and leaves at 2.5 MPa and 300 m/s. Determine (a) the exit temperature (b) the ratio of the inlet to exit area A1/A2. P5.64:- Refrigerant-134a at 800 kPa and 25°C is throttled to a temperature of 220°C. Determine the pressure and the internal energy of the refrigerant at the final state P1-0.8 MPa
Water flows steadily through a curved duct that turns the flow through angle @= 135º, as shown in Fig. 3. The cross-sectional area of the duct changes from A1 = 0.025 m² at the inlet to A2 = 0.05 m’ at the outlet. The average velocity at the duct inlet is V1 = 6 m/s. The momentum flux correction factor may be taken as B1 = 1.01 at the duct inlet and B2 = 1.03 at the its outlet. The...
Water flows steadily through a curved duct that turns the flow
through angle = 135 degrees, as shown in Fig. 3. The
cross-sectional area of the duct changes from A1 = 0.025 m2 at the
inlet to A2 = 0.05 m2 at the outlet. The average velocity at the
duct inlet is V1 = 6 m/s. The momentum flux correction factor may
be taken as 1 = 1.01 at the duct inlet and 2 = 1.03 at the its
outlet....
2. Air enters an isothermal nozzle at a temperature of 300 K, and a velocity of 10 m/s. The nozzle is very poorly insulated, causing a stray heat transfer rate of 10 kW into the system. The outlet of the nozzle is exposed to an ambient pressure of 1 bar and is choked (Mach 1. If the area ratio of the nozzle (A1/A2) is 5, what is: a. The velocity of the nozzle outlet, in [m/s], if the specific heat...
4-1-30 [WX] An adiabatic steam nozzle operates steadily under the following conditions. Inlet: superheated vapor, p1 = 1 MPa, T1 = 300°C, A1 78.54 cm2; Exit: saturated vapor, p2 = 100 kPa. Determine (a) the exit velocity (V2) in m/s, (b) the rate of entropy Solution] [Discuss] generation (Šgen) in kW/K. The mass flow rate (m is 1 kg/s.
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 4 MPa, 500°C, and 80 m/s, and the exit conditions are 30 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 12 kg/s. Determine a. (3) Change in kinetic energy (-23.4 kJ) b. (4) Power output (12.12 MW) c. (3) Turbine inlet area (0.012966 m2)
