Assume a 0 to 10 volt square wave w/ fifty percent duty-cycle that is input to...

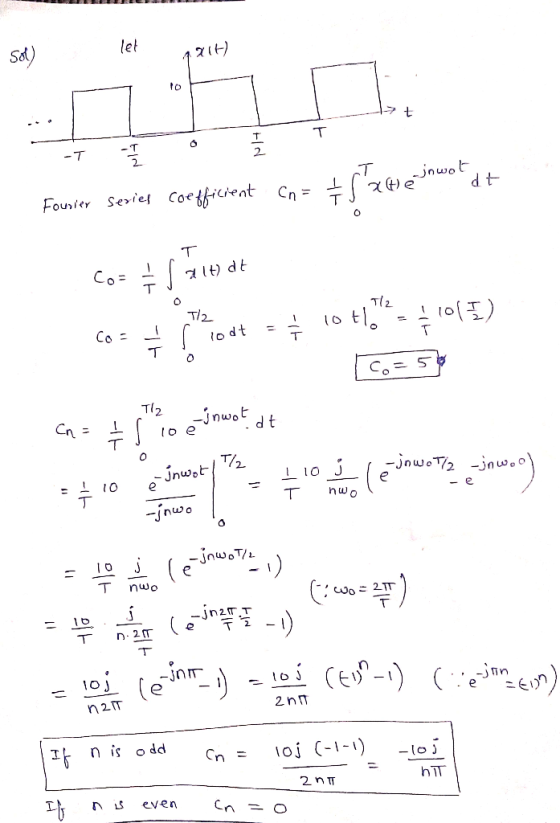

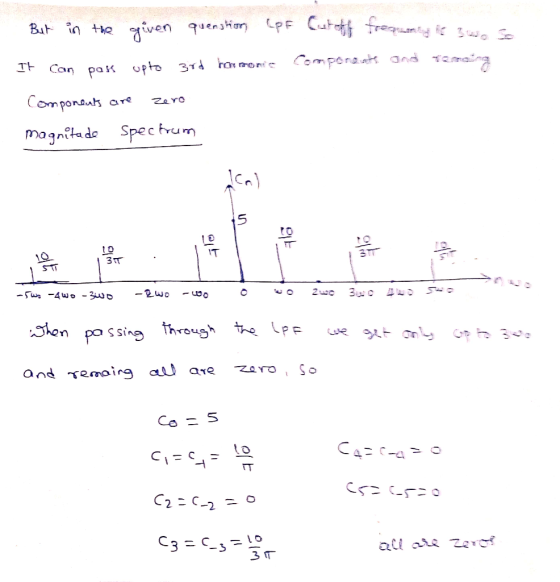

Assume a 0 to 10 volt square wave w/ fifty percent duty-cycle that is input to a first-order LPF w/ break freq. equal to the signal's third-harmonic freq. What are the Fourier coefficients (up to the fifth harmonic) of the output signal?
Homework Answers
