Find XC for the following capacitors. In each case, the frequency is 5 KHz. a. C...
Find XC for the following capacitors. In each case, the frequency is 5 KHz.
a. C = 10 microFarads
b. C = 470 picoFarads

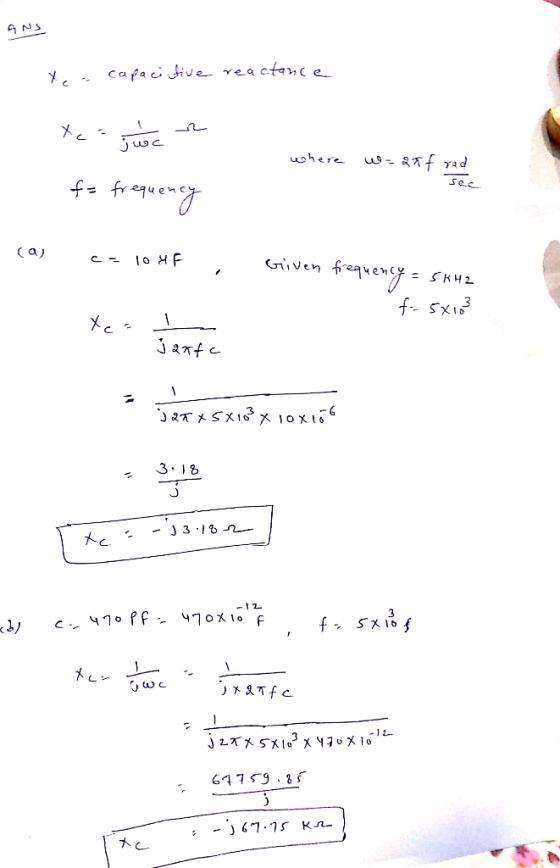

Homework Answers
Add Answer to:
Find XC for the following capacitors. In each case, the
frequency is 5 KHz.
a. C...
For the following system Xc(jΩ) ----- ADC ----- H(ejω) ----- DAC ----- Yc(jΩ) where Xc(jΩ) and H(ejω) are shown below, with ADC frequency =10 KHz and DAC frequency =10 KHz
For the following system Xc(jΩ) ----- ADC ----- H(ejω) ----- DAC ----- Yc(jΩ) where Xc(jΩ) and H(ejω) are shown below, with ADC frequency =10 KHz and DAC frequency =10 KHz
The following is the channel frequency assignment for a 12-channel AM radio system: (c) Channel No Fcy 1240 kHz 1370 kHz 500 kHz 1630 kHz Channel No.Frequency 2280 kHz 2410 kHz 2540 kHz 2670 kHz Chan...
The following is the channel frequency assignment for a 12-channel AM radio system: (c) Channel No Fcy 1240 kHz 1370 kHz 500 kHz 1630 kHz Channel No.Frequency 2280 kHz 2410 kHz 2540 kHz 2670 kHz Channel No. Freqency 1760 kHz 1890 kHz 2020 kHz 2150 kHz 10 2 12 When the AM superheterodyne radio receiver is tuned to Channel 10, in addition to the signal carried on Channel 10, you can also hear a weak signal carried on Channel3 (i)...
Design a parallel RLC band-pass filter to have the nominal center frequency f0 = 280 kHz and the 3dB bandwidth B = 7.9 k...
Design a parallel RLC band-pass filter to have the nominal center frequency f0 = 280 kHz and the 3dB bandwidth B = 7.9 kHz. Use only single, standard-valued components: 5% resistors, 10% capacitors and 10% IMS-5WD-40 inductors. Assume that inductor's Q is constant in the frequency range [0.1 - 1.0]ft, where ft is the 'TEST FREQUENCY Q' given in the IMS-5WD-40 data sheet. L = C = R =
An FM signal has an intelligence frequency of 5 KHz, a maximum deviation of 30 KHz, and a carrier frequency of 162.4 MHz. Use the Bessel Function chart to answer the following: a) Its bandwidth b) How...
An FM signal has an intelligence frequency of 5 KHz, a maximum deviation of 30 KHz, and a carrier frequency of 162.4 MHz. Use the Bessel Function chart to answer the following: a) Its bandwidth b) How many frequency components are there in the output spectrum? c) What is the frequency of the highest frequency component within its bandwidth?
a. A 1V peak to peak sine wave with a frequency of 1 kHz is applied...
a. A 1V peak to peak sine wave with a frequency of 1 kHz is applied across a 5 kΩ resistor. Find an expression for the current through the resistor as a function of time. b. The same input voltage is applied across a single 2 µF capacitor, what is the current through the capacitor as a function of time? c. The frequency of the sine wave is now increased to 5 kHz. How does this affect the current in...
Capacitors of capacitance 7.00 microfarads and 13.0 microfarads are connected in parallel to each other and...
Capacitors of capacitance 7.00 microfarads and 13.0 microfarads are connected in parallel to each other and parallel to a 12.0 V battery. (a) What is their equivalent capacitance? (b) What is the charge on the 7.00 microfarad capacitor? (c) What is the potential difference across the 13.0 microfarad capacitor?
Design a Delyiannis-Friend filter to satisfy the following specifications: Mid-band frequency fo = 100 kHz Mid-band...
Design a Delyiannis-Friend filter to satisfy the following specifications: Mid-band frequency fo = 100 kHz Mid-band voltage gain = 10 Pole Q = 4 Both capacitors should be 1 pF. Analyze your circuit for an ideal opamp, and with an opamp gain of 50 dB.
a combination of series and parallel connections of capacitors is depicted in the figure. find the...
a
combination of series and parallel connections of capacitors is
depicted in the figure. find the total capacitance of the
combinatiin of capacitors
(10%) Problem 4: A combination of series and parallel connections of capacitors is depicted in the figure. Randomized Variables C1 = 19 F C2 = 5.53 uF C3=1.35 uf - G Ctheexpert * Find the total capacitance of the combination of capacitors, in microfarads. Grade Sumo Deductions Potential 7 4 8 5 9 6 sin() cos) tano...
12. An FM signal has a deviation of 3 kHz and a modulating frequency of 1...
12. An FM signal has a deviation of 3 kHz and a modulating frequency of 1 kHz. Its total power Pris 5 W, developed across a 50 2 resistive load. The carrier frequency is 160 MHz (a) Calculate the RMS signal voltage VI (b) Calculate the RMS voltage at the carrier frequency and each of the first three sets of sidebands. (c) For the first three sideband pairs, calculate the frequency of each sideband. (d) Calculate the power at the...
Calculate the following parameters for a Phase Modulator which has a carrier frequency of 10 kHz...
Calculate the following parameters for a Phase Modulator which has a carrier frequency of 10 kHz and a modulating data rate of 3 kHz: Modulating data time period: Baud rate: Upper sideband: Lower sideband: Bandwidth: Use the Labview circuit to verify the calculations Explain any observations and discrepancies. Use Labview to build a Phase Modulator. The sinusoidal carrier signal should be adjustable up to 12 kHz and the amplitude adjustable to 5 volts, using a “simulate signal” express vi. The...
The following is the channel frequency assignment for a 12-channel AM radio system: (c) Channel No Fcy 1240 kHz 1370 kHz 500 kHz 1630 kHz Channel No.Frequency 2280 kHz 2410 kHz 2540 kHz 2670 kHz Channel No. Freqency 1760 kHz 1890 kHz 2020 kHz 2150 kHz 10 2 12 When the AM superheterodyne radio receiver is tuned to Channel 10, in addition to the signal carried on Channel 10, you can also hear a weak signal carried on Channel3 (i)...
Design a Delyiannis-Friend filter to satisfy the following specifications: Mid-band frequency fo = 100 kHz Mid-band voltage gain = 10 Pole Q = 4 Both capacitors should be 1 pF. Analyze your circuit for an ideal opamp, and with an opamp gain of 50 dB.
a
combination of series and parallel connections of capacitors is
depicted in the figure. find the total capacitance of the
combinatiin of capacitors
(10%) Problem 4: A combination of series and parallel connections of capacitors is depicted in the figure. Randomized Variables C1 = 19 F C2 = 5.53 uF C3=1.35 uf - G Ctheexpert * Find the total capacitance of the combination of capacitors, in microfarads. Grade Sumo Deductions Potential 7 4 8 5 9 6 sin() cos) tano...
12. An FM signal has a deviation of 3 kHz and a modulating frequency of 1 kHz. Its total power Pris 5 W, developed across a 50 2 resistive load. The carrier frequency is 160 MHz (a) Calculate the RMS signal voltage VI (b) Calculate the RMS voltage at the carrier frequency and each of the first three sets of sidebands. (c) For the first three sideband pairs, calculate the frequency of each sideband. (d) Calculate the power at the...
