1. Use F=LI x B and Ampere`s Law(for the magnetic field of a long straight wire)...

1. Use F=LI x B and Ampere`s Law(for the magnetic field of a long straight wire) to derive the force per unit length of two parallel current carrying wires; in terms of current, I, and distance between wires, d. Show all the steps and explain any substitution you may make.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

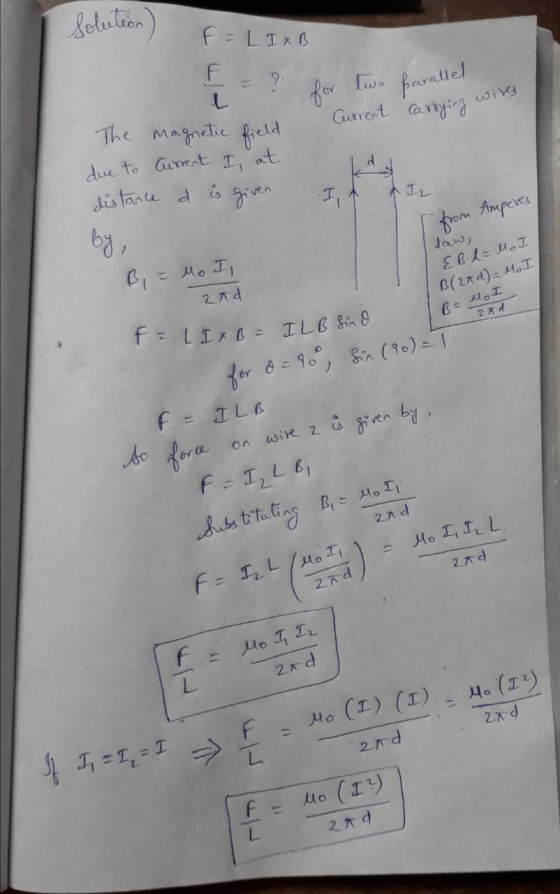

Answer #1

0 0
Add a comment
