A crate of mass m1 = 12.4 kg is pulled by a massless rope up a...

A crate of mass m1 = 12.4 kg is pulled by a massless rope up a 36.9° ramp. The rope passes over an ideal pulley and is attached to a hanging crate of mass m2 = 16.3 kg. The crates move 1.40 m, starting from rest. If the frictional force on the sliding crate has magnitude 22.6 N and the tension in the rope is 121.5 N, find the total work done on the sliding crate.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

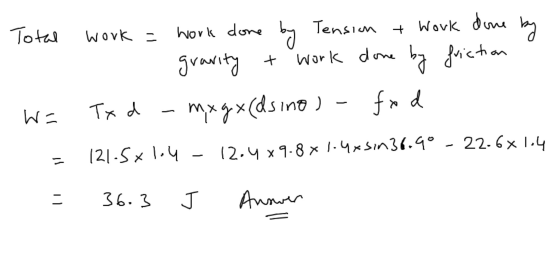

Answer #1

0 0
