A coil set up 100mWb of flux. Of this total flux, 30mWb are linked with another coil. What is the coefficient of coupling between the two coils?

engineering Electrical-Engineering

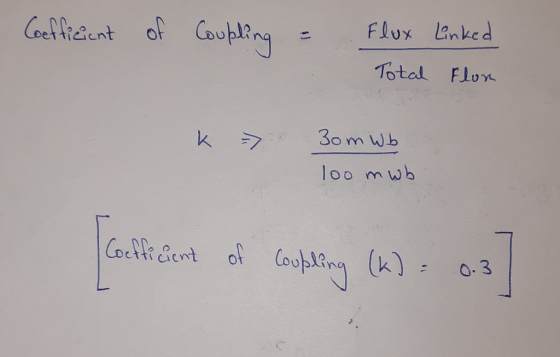

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

A long solenoid (coil 1) is surrounded at its center by a shorter coil (coil 2)...

A long solenoid (coil 1) is surrounded at its center by a shorter coil (coil 2) as in (Figure 1). At an instant when the current in coil 1 is 44.0 A and increasing at a rate of 2.00 A/s, the induced emf in coil 2 is 1.50×10−4 V. What is the mutual inductance of the two coils? At this instant, what is the total magnetic flux through all the turns of coil 2 due to the current in coil...
The two coils A and B wound coaxially on an insulating cylinder. It will be evident...

The two coils A and B wound coaxially on an insulating cylinder. It will be evident that the fluxes produced by a current i through the two coils are in the same direction, and the coils are said to be cumulatively coupled. If the direction of the current in B relative to that in A is reverse, then coils are said to be differential coupling. Suppose A and B to have self- inductances LA and LB henrys respectively and a...
A set of Helmholtz coils has a coil diameter of D = 0.062 m , with...

A set of Helmholtz coils has a coil diameter of D = 0.062 m , with N = 18 turns in each coil, and the current flowing through the coils is I = 1.6 A. What will the magnitude of the magnetic field at the centre of the Helmholtz coils be? Express answer to two significant figures.

A flux meter is a device that measures the magnetic field strength. The flux meter has...

A flux meter is a device that measures the magnetic field strength. The flux meter has a conduction coil of 1700 turns with the area of the coil as 5.10 X 10-4 m2 . The coils are connected to a galvanometer and has a total resistance of 55.0 ohms. The coil is moved from a region where the magnetic field is zero into a region where it is nonzero, the normal coil to the coil being kept parallel to the...
If the current in coil 1 is changing at the rate of 3.5 A/s, what is...

If the current in coil 1 is changing at the rate of 3.5 A/s, what is the magnitude of the emf generated in coil 2? PLEASE show HOW to get answer , THANK YOU !! If the current in coil 1 is changing at the rate of 3.5 A/s, what is the magnitude of the emf generated in coil 2? 14. Two coils share a common axis as shown in the figure. Coil 1 has a length of 0.1 m,...
a)During a 82-ms interval, a change in the current in a primary coil occurs. This change...

a)During a 82-ms interval, a change in the current in a primary coil occurs. This change leads to the appearance of a 4.2-mA current in a nearby secondary coil. The secondary coil is part of a circuit in which the resistance is 12 Ω. The mutual inductance between the two coils is 3.2 mH. What is the change in the primary current? b) The magnetic flux that passes through one turn of a 13-turn coil of wire changes to 3.78...

1. What is the average Magnetic Flux through one single coil at the initial position of...

1. What is the average Magnetic Flux through one single coil at the initial position of the bar magnet using initial = 2.32 x 10-3 T and = 2.292 x 10-4 m2. 2. What is the total average Magnetic Flux through all 1600 turns in the coil at the initial position of the bar magnet? 3. What is the average Magnetic Flux through one single coil and what is the total average Magnetic Flux through all 1600 turns in the...
The magnetic flux through the experimental coil of wire as a function of time may be obtained by:...

The magnetic flux through the experimental coil of wire as a function of time may be obtained by: A. measuring the peak voltage B. measuring the total time between the two induced voltage peaks C. taking the average of five runs D. integrating the area under the voltage peak curves
1. What is the average Magnetic Flux through one single coil at the initial position of...

1. What is the average Magnetic Flux through one single coil at the initial position of the bar magnet using initial = 2.32 x 10-3 T and = 2.292 x 10-4 m2. 2. What is the total average Magnetic Flux through all 1600 turns in the coil at the initial position of the bar magnet? This is the value for initial. 3a. What is the average Magnetic Flux through one single coil? b. What is the total average Magnetic Flux...

Chapter 30, Problem 073 Two coils are at fixed locations. When coil 1 has no current...

Chapter 30, Problem 073 Two coils are at fixed locations. When coil 1 has no current and the current in coil 2 increases at the rate 17.7 A/s, the emf in coil 1 is 25.9 mv. (a) What is their mutual inductance? (b) When coil 2 has no current and coil 1 has a current of 6.40 A, what is the flux linkage in coil 2? (a) Number Units (b) Number Units
