Question

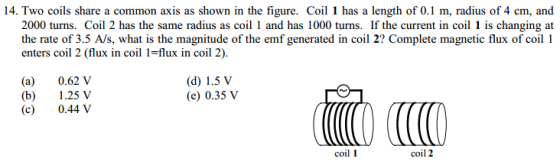

If the current in coil 1 is changing at
the rate of 3.5 A/s, what is the magnitude of the emf generated in coil 2?

Image for If the current in coil 1 is changing at the rate of 3.5 A/s, what is the magnitude of the emf generated in coiPLEASE show HOW to get answer , THANK YOU !!

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

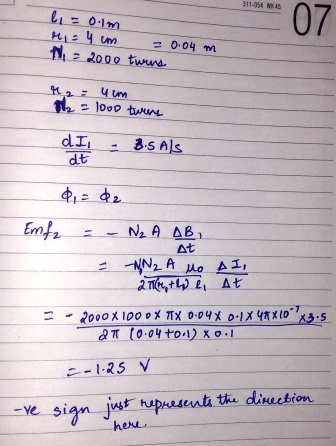

311-054 KAS 07 2000 twun B s AlS At ? to.oyto.1) ? 0-1 ??1.25 ve sign Just hupuesulatta dinection_ -ye S

0 0
Add a comment
Know the answer?
Add Answer to:
If the current in coil 1 is changing at the rate of 3.5 A/s, what is...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Coil 1 has L1 = 40 mH and N1 = 101 turns. Coil 2 has L2...

    Coil 1 has L1 = 40 mH and N1 = 101 turns. Coil 2 has L2 = 41 mH and N2 = 234 turns. The coils are fixed in place; their mutual inductance M is 5.6 mH. A 6.1 mA current in coil 1 is changing at the rate of 4.4 A/s. (a) What magnetic flux Φ12 links coil 1, and (b) what self-induced emf appears in that coil? (c) What magnetic flux Φ21 links coil 2, and (d) what...

  • Coil 1 has L1 = 50 mH and N1 = 113 turns. Coil 2 has L2...

    Coil 1 has L1 = 50 mH and N1 = 113 turns. Coil 2 has L2 = 72 mH and N2 = 233 turns. The coils are fixed in place; their mutual inductance M is 5.5 mH. A 7.3 mA current in coil 1 is changing at the rate of 7.3 A/s. (a) What magnetic flux Φ12 links coil 1, and (b) what self-induced emf appears in that coil? (c) What magnetic flux Φ21 links coil 2, and (d) what...

  • Coil 1 has L1 = 26 mH and N1 = 102 turns. Coil 2 has L2...

    Coil 1 has L1 = 26 mH and N1 = 102 turns. Coil 2 has L2 = 59 mH and N2 = 216 turns. The coils are fixed in place; their mutual inductance M is 6.3 mH. A 8.4 mA current in coil 1 is changing at the rate of 4.5 A/s. (a) What magnetic flux Φ12 links coil 1, and (b) what self-induced emf appears in that coil? (c) What magnetic flux Φ21 links coil 2, and (d) what...

  • Coil 1 has L1 = 50 mH and M, = 104 turns. Coil 2 has L2...

    Coil 1 has L1 = 50 mH and M, = 104 turns. Coil 2 has L2 = 68 mH and M2 = 227 turns. The coils are fixed in place; their mutual inductance M is 3.6 mH. A 8.0 mA current in coil 1 is changing at the rate of 4.8 A/s. (a) What magnetic flux D12 links coil 1, and (b) what self-induced emf appears in that coil? (c) What magnetic flux D21 links coil 2, and (d) what...

  • Please show the derivation of the formulas! Coil 1 has L1 = 25 mH and N1...

    Please show the derivation of the formulas! Coil 1 has L1 = 25 mH and N1 = 100 turns. Coil 2 has L2 = 40mH and N2 = 200 turns. The coils are fixed in place; their mutual inductance M is 3.0 mH. A 6.0 mA current in coil 1 is changing at the rate of 4.0 A/s. (a) What magnetic flux 012 links coil 1, and (b) what self-induced emf appears in that coil? (c) What magnetic flux 021...

  • a. A coil of wire with 209 circular turns of radius 3.10 cm is in a...

    a. A coil of wire with 209 circular turns of radius 3.10 cm is in a uniform magnetic field along the axis of the coil. The coil has R = 41.5 Ω . At what rate, in teslas per second, must the magnetic field be changing to induce a current of 0.149 A in the coil? b. A closely wound rectangular coil of 90.0 turns has dimensions of 30.0 cm by 47.0 cm . The plane of the coil is...

  • An emf of 20.0 mV is induced in a 460-turn coil when the current is changing...

    An emf of 20.0 mV is induced in a 460-turn coil when the current is changing at the rate of 10.0 A/s. What is the magnetic flux through each turn of the coil at an instant when the current is 4.80 A? (Express the magnitude in µT · m2)

  • A long solenoid (coil 1) is surrounded at its center by a shorter coil (coil 2)...

    A long solenoid (coil 1) is surrounded at its center by a shorter coil (coil 2) as in (Figure 1). At an instant when the current in coil 1 is 44.0 A and increasing at a rate of 2.00 A/s, the induced emf in coil 2 is 1.50×10−4 V. What is the mutual inductance of the two coils? At this instant, what is the total magnetic flux through all the turns of coil 2 due to the current in coil...

  • 8. A coil has 1000 turns. When the current in the coil is 4.00 A, the...

    8. A coil has 1000 turns. When the current in the coil is 4.00 A, the average flux through each turn of the coil is 0.0250 Wb. What is the self-induced emf in the coil (in V) when the current in the coil is changing at a rate of 12.0 A/S? (A) 93.8 (B) 826 (C) 75.0 (D) 41.5 (E) 50.0 (F) 675

  • 8. A coil has 1000 turns. When the current in the coil is 4.00 A, the...

    8. A coil has 1000 turns. When the current in the coil is 4.00 A, the average flux through each turn of the coil is 0.0250 Wb. What is the self-induced emf in the coil (in V) when the current in the coil is changing at a rate of 12.0 A/s? (A) 93.8 (B) 82.6 (C) 75.0 (D) 41.5 (E) 50.0 (F) 67.5
