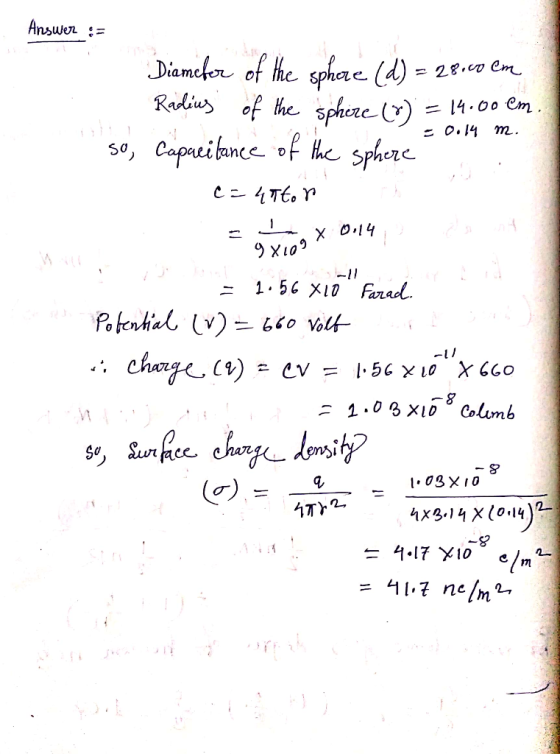

A conductive sphere of 28.00cm in diameter is charged at 660.00V with respect to V =...
Homework Answers
Add Answer to:
A
conductive sphere of 28.00cm in diameter is charged at 660.00V with
respect to V =...
Can you help me to solve these problem? 1. A conductive sphere of 26.00cm in diameter...
Can you help me to solve these problem?
1. A conductive sphere of 26.00cm in diameter is charged at
660.00V with respect to V = 0 at r = ∞. The surface charge density
for this sphere is: (express your answer in )
2.
There is a uniform electric field of E = -4.80i [N / C], as
indicated in the figure. The position of points A, B and C is
known. According to this information determine the potential
difference...
A 33 cm -diameter conducting sphere is charged to 700 V relative to V=0 at r=∞....
A 33 cm -diameter conducting sphere is charged to 700 V relative to V=0 at r=∞. A. What is the surface charge density σ? Express your answer using two significant figures in C/m^2 B. At what distance from the center of the sphere will the potential due to the sphere be only 26 V ? Express your answer using two significant figures in m.
Constants | Periodic Table Part A A 22 cm -diameter conducting sphere is charged to 580 V relative to V 0 atroo? What is the surface charge density σ? Express your answer using two significant figure...
Constants | Periodic Table Part A A 22 cm -diameter conducting sphere is charged to 580 V relative to V 0 atroo? What is the surface charge density σ? Express your answer using two significant figures. Submit Part B At what distance from the center of the sphere will the potential due to the sphere be only 29 V Express your answer using two significant figures. Im Submit Pearson
Constants | Periodic Table Part A A 22 cm -diameter conducting...
A uniformly charged conducting sphere of 1.1 m diameter has a surface charge density of 6.3...
A uniformly charged conducting sphere of 1.1 m diameter has a surface charge density of 6.3 µC/m2. (a) Find the net charge on the sphere. (b) What is the total electric flux leaving the surface of the sphere?
The electric potential immediately outside a charged conducting sphere is 240 V, and 10.0 cm above...
The electric potential immediately outside a charged conducting sphere is 240 V, and 10.0 cm above the surface of the sphere the potential is 130 V. (a) Determine the radius of the sphere. cm (b) Determine the charge on the sphere. nC The electric potential immediately outside another charged conducting sphere is 260 V, and 10.0 cm above the surface of the sphere the magnitude of the electric field is 360V/m. (c) Determine all possible values for the radius of...
A charged isolated metal sphere of diameter 11 cm has a potential of 12000 V relative...
A charged isolated metal sphere of diameter 11 cm has a potential of 12000 V relative to V = 0 at infinity. Calculate the energy density in the electric field near the surface of the sphere.
A charged isolated metal sphere of diameter 14 cm has a potential of 6400 V relative...
A charged isolated metal sphere of diameter 14 cm has a potential of 6400 V relative to V = 0 at infinity. Calculate the energy density in the electric field near the surface of the sphere.
A 2.3 mm -diameter sphere is charged to -4.4 nC . An electron fired directly at...
A 2.3 mm -diameter sphere is charged to -4.4 nC . An electron fired directly at the sphere from far away comes to within 0.39 mm of the surface of the target before being reflected. A.) What was the electron's initial speed? Express your answer in meters per second. B.) At what distance from the surface of the sphere is the electron's speed half of its initial value? Express your answer in meters. C.) What is the acceleration of the...
A sphere of radius a that is made of a conductive dielectric (: σο ande Ere) is centered about th...
A sphere of radius a that is made of a conductive dielectric (: σο ande Ere) is centered about the ongin The sphere is charged at t 0 s with a uniform charge density given by pu(t 0) po for all R s a, where Po is a positive constant (a) Starting from the continuity equation, V J prove that the charge density within the dielectric sphere varies according to pu(t)-pe Tro. (3 points) (b) If it is known that...
In the figure the sphere of radius R is solid and non-conductive and has a uniform...
In the figure the sphere of radius R is solid and non-conductive and has a uniform charge volumetric distribution p0. A spherical shell with inner radius 2R and outer radius 3R is concentric with the sphere and unloaded. Find, in terms of p0 and R: a) the value of the electric charge in the sphere, b) the magnitude of the electric field at a radial distance r - 2.5R, c) the value of the surface charge density induced in the...
Can you help me to solve these problem?
1. A conductive sphere of 26.00cm in diameter is charged at
660.00V with respect to V = 0 at r = ∞. The surface charge density
for this sphere is: (express your answer in )
2.
There is a uniform electric field of E = -4.80i [N / C], as
indicated in the figure. The position of points A, B and C is
known. According to this information determine the potential
difference...
Constants | Periodic Table Part A A 22 cm -diameter conducting sphere is charged to 580 V relative to V 0 atroo? What is the surface charge density σ? Express your answer using two significant figures. Submit Part B At what distance from the center of the sphere will the potential due to the sphere be only 29 V Express your answer using two significant figures. Im Submit Pearson
Constants | Periodic Table Part A A 22 cm -diameter conducting...
A sphere of radius a that is made of a conductive dielectric (: σο ande Ere) is centered about the ongin The sphere is charged at t 0 s with a uniform charge density given by pu(t 0) po for all R s a, where Po is a positive constant (a) Starting from the continuity equation, V J prove that the charge density within the dielectric sphere varies according to pu(t)-pe Tro. (3 points) (b) If it is known that...
In the figure the sphere of radius R is solid and non-conductive and has a uniform charge volumetric distribution p0. A spherical shell with inner radius 2R and outer radius 3R is concentric with the sphere and unloaded. Find, in terms of p0 and R: a) the value of the electric charge in the sphere, b) the magnitude of the electric field at a radial distance r - 2.5R, c) the value of the surface charge density induced in the...
