A short current element dl⃗ = (0.500 mm)j^ carries a current of 4.50 A in the same...
A short current element dl⃗ = (0.500 mm)j^ carries a current of 4.50 A in the same direction as dl⃗ . Point P is located at r⃗ = ( -0.730 m)i^+ (0.390m)k^.
Part A

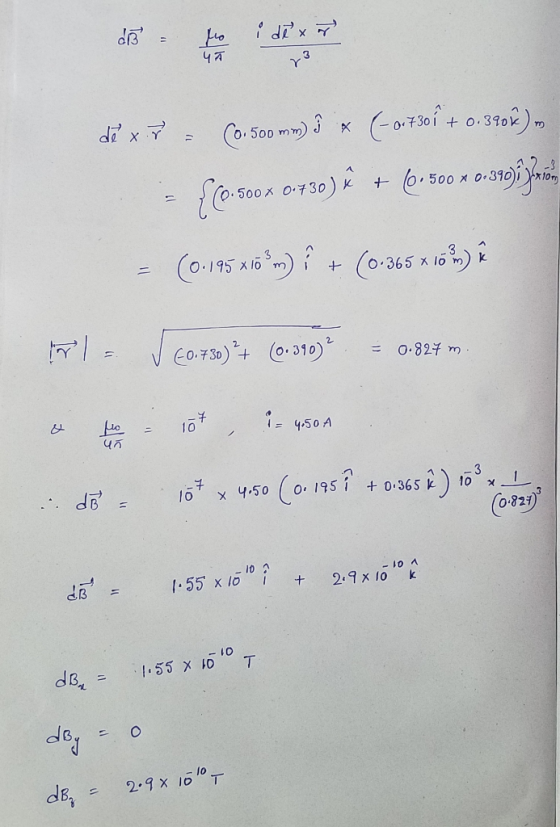

Find the magnetic field at P produced by this current element.
Enter the x, y, and z components of the magnetic field separated by commas.
dBx, dBx dBy, dBz =
Homework Answers
