A short current element d l ⃗ = (0.500 mm ) j ^ carries a current...

A short current element d l ⃗ = (0.500 mm ) j ^ carries a current of 5.00 A in the same direction as d l ⃗ . Point P is located at r ⃗ = ( -0.730 m ) i ^ + (0.390 m ) k ^ .

Find the magnetic field at P produced by this current element.

Enter the x, y, and z components of the magnetic field separated by commas.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

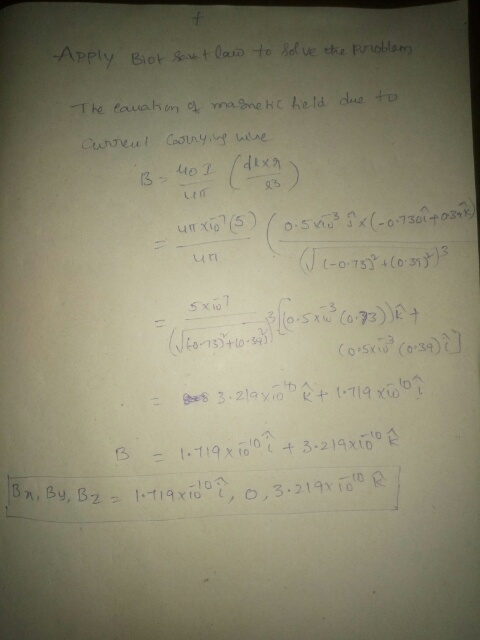

Answer #1

0 0
Add a comment
