An activity starts wben a request to create shipment is made. This followed by the search for customer from the database. If the customer can not be found, an error message is shown and the process goes back to requesting to create shipment. If the customer can be found, customer's details are displayed. This is followed by the create shipment activity. Two alternatives may arise here; creation of shipment may be successful or not successful. If the creation of shipment is successful, it will be saved to database and printed and the activity ends. If however, creation shipment is not successful, then a reject creation message is shown. At this point either the creation of shipment is canceled or shipment has to be re-created, which brings the activity back to create shipment If creation of shipment is canceled, the activity ends.

Draw the UML activity diagram for the above scenario.
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

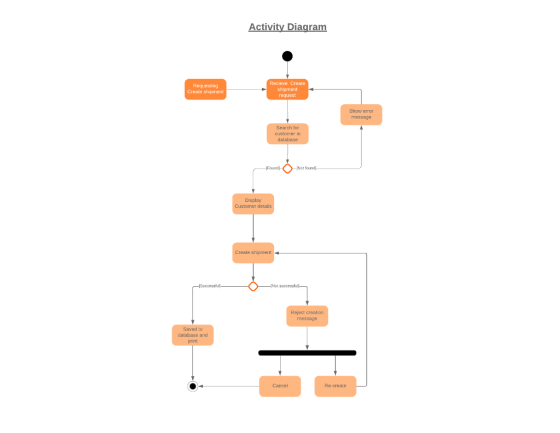

The activity diagram for the above scenario as follows.

Here I'm using the only fork but not join. In UML a Fork should have the corresponding Join. In UML 2 it is not required to have a join, but it usually makes a scene.
