A 0.470-µC particle moves with a speed of 16.0 m/s through a region where the magnetic...

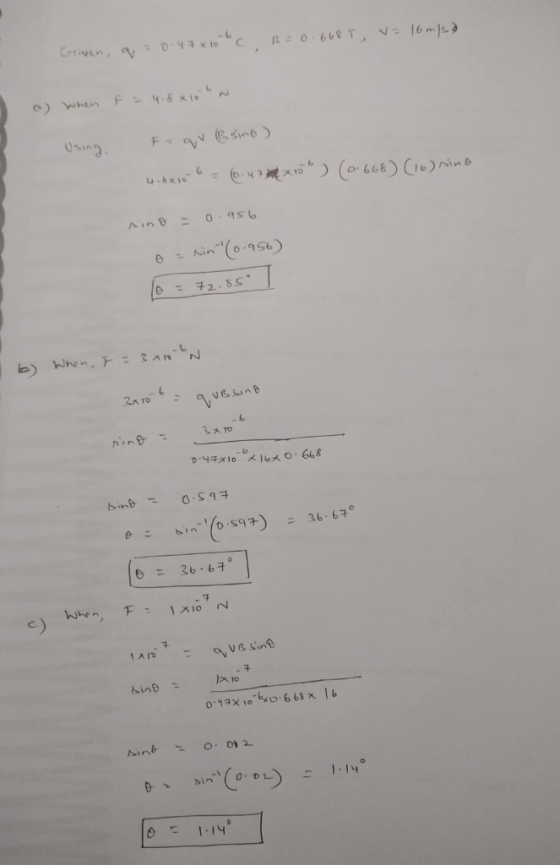

A 0.470-µC particle moves with a speed of 16.0 m/s through a region where the magnetic field has a strength of 0.668 T. At what angle to the field is the particle moving if the following magnitudes of the force are exerted on it?
(a) 4.80 ✕ 10−6 N
° (counterclockwise from the +x-axis)
(b) 3.00 ✕ 10−6 N
° (counterclockwise from the +x-axis)
(c) 1.00 ✕ 10−7 N
° (counterclockwise from the +x-axis)
