Consider the signal x[n] and the impulse response h[n] defined below:
x[n] = u[n] − u[n − 49] h[n] = u[n] − u[n − 3].

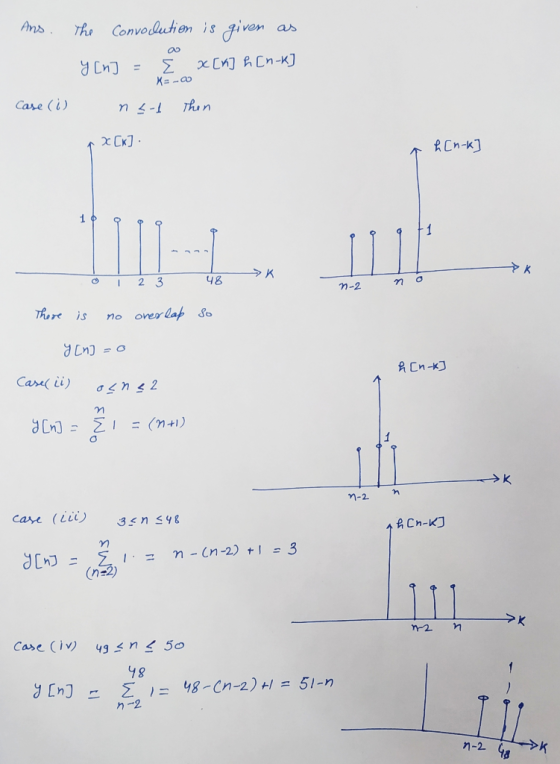

Sketch y[n] = x[n] ∗ h[n] (the convolution of x[n] and h[n]). You must justify your answer by showing some intermediate calculations and/or sketches.
Homework Answers
