One end of a 58-cm-long copper rod with a diameter of 2.4 cm is kept at...

Question

Question

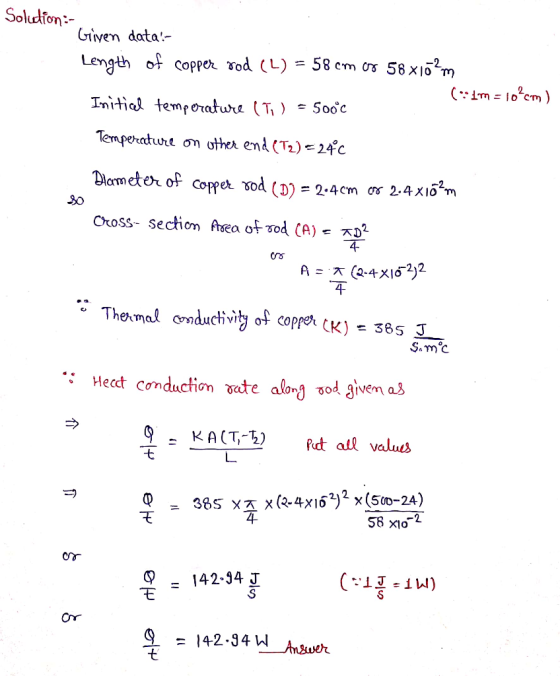

One end of a 58-cm-long copper rod with a diameter of 2.4 cm is kept at 500 ∘C, and the other is immersed in water at 24 ∘C.

Calculate the heat conduction rate along the rod. Q/t=?

science physics

Answer 1

Answer #1

Answer 2
