Question

For the logic expression: Q = (A’B)’ + CD + ACD’ Use DeMorgan’s Theorem to express...

  1. For the logic expression: Q = (A’B)’ + CD + ACD’

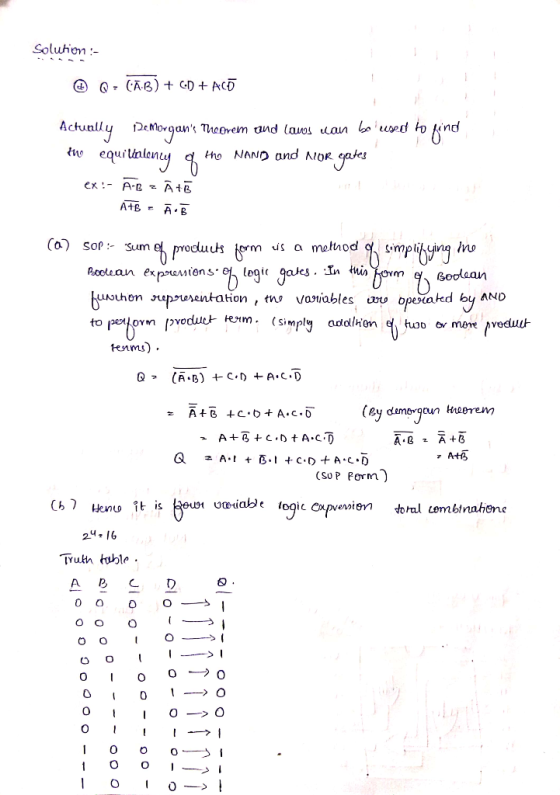

    1. Use DeMorgan’s Theorem to express Q in SOP form (Do not use Boolean Algebra to simplify the equation).

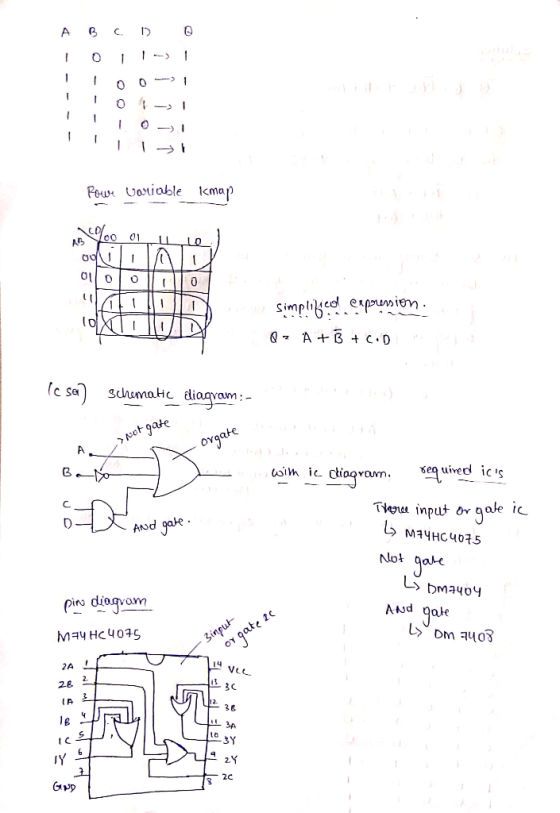

    2. Create the Karnaugh map and write the simplified Boolean equation.

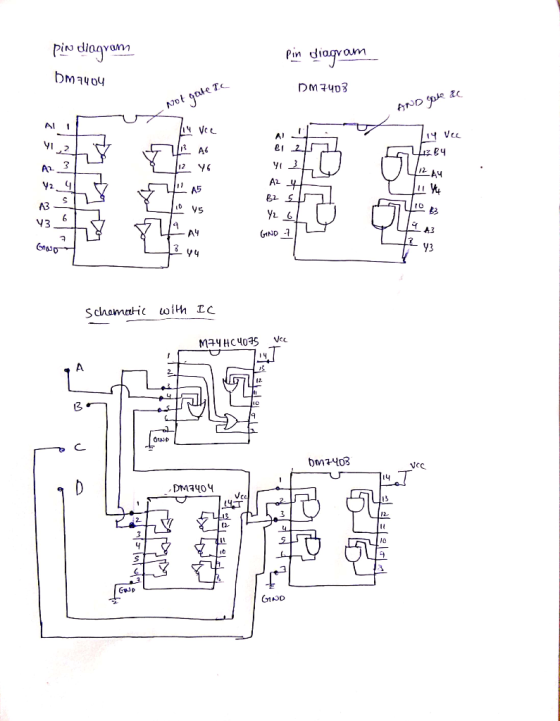

    3. Draw the schematic diagram. Add IC numbers and pin numbers to the diagram.
