Network Subnetting 3 1. Given an IP address of 210.21.21.21 and a subnet mask of 255.255.252.0,...
Network Subnetting 3

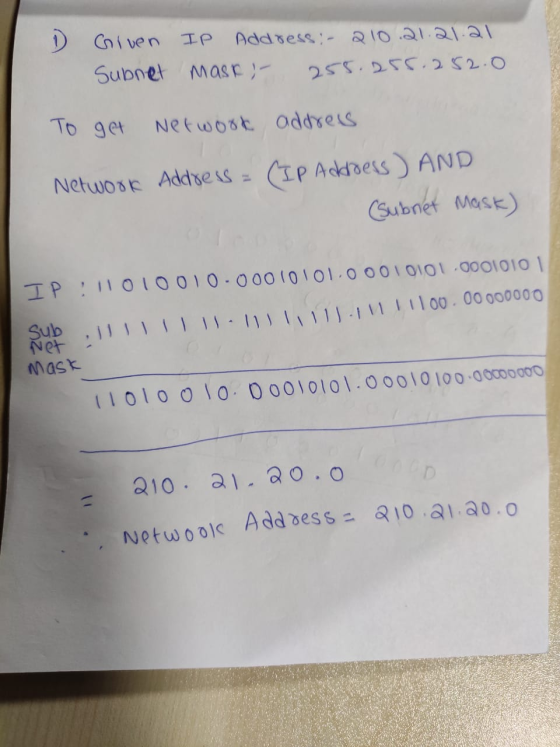

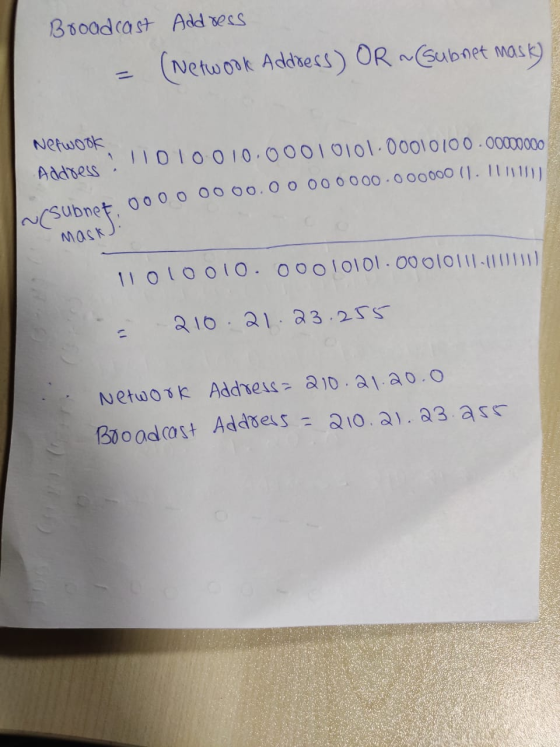

1. Given an IP address of 210.21.21.21 and a subnet mask of 255.255.252.0, what is the address of the network? And the broadcast address? Show your calculation.

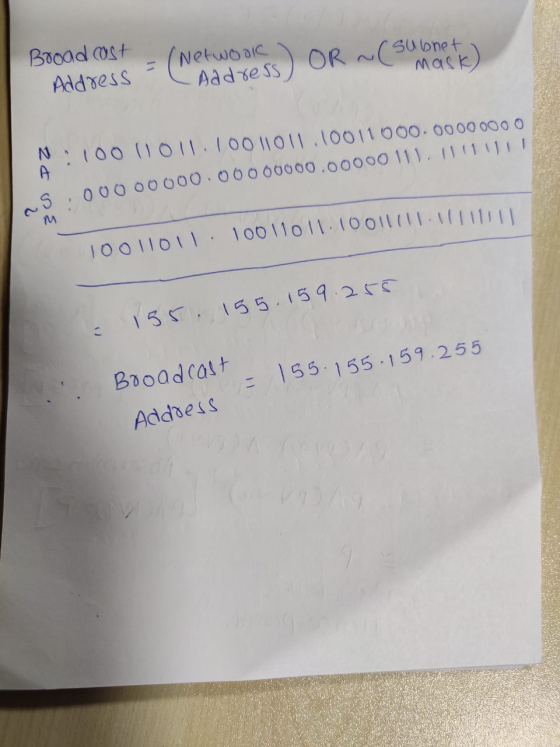

2. On a network with an IP address of 155.155.155.155 and a subnet mask of 255.255. 248.0 what is the network ID? And the broadcast address? Show your calculation.
Homework Answers
Add Answer to:
Network Subnetting
3
1. Given an IP address of 210.21.21.21 and a subnet mask of
255.255.252.0,...
Given the following IP address and subnet mask, what is the network identifier? • IP Address:...
Given the following IP address and subnet mask, what is the network identifier? • IP Address: 18.132.219.175 . Subnet Mask: 255.255.248.0 Network ID: BLANK-1 BLANK-1 Add your answer Question 28 Given the following IP address and subnet mask, what is the network identifier? - IP Address: 18.132.219.175 . Subnet Mask: 255.255.248.0 • Broadcast Address: BLANK-1 BLANK-1 Add your answer
Given an IP address and mask of 192.168.1.0 255.255.255.0 (address / mask) subnet A has 55 hosts subnet b has 112 hosts The 0th subnet is not used. (Do not use 192.168.1.0) (Subnetting Help) Subne...
Given an IP address and mask of 192.168.1.0 255.255.255.0 (address / mask) subnet A has 55 hosts subnet b has 112 hosts The 0th subnet is not used. (Do not use 192.168.1.0) (Subnetting Help) Subnet A Specification Student Input Number of Network bits in the subnet mask New Subnet mask (decimal) Number of usable hosts IP Subnet (Network ID) First IP Host address Last IP Host address (Subnetting Help) Subnet B Specification Student Input Number of Network bits in the...
In a class B subnet, we know the IP address of one of the hosts and...
In a class B subnet, we know the IP address of one of the hosts and the subnet mask as given below: IP Address: 188.48.82.176 Subnet mask: 255.255.255.248 1) What is the first valid host address in the subnet? (in dotted decimal) 2) What is the last valid address in the subnet? (in dotted decimal) 3) What is the subnet network address? (in dotted decimal) 4) What is the subnet broadcast address? (in dotted decimal) 5) What is the number...
4. Given a network IP address of 130.124.0.0 answer the following questions if 8 subnets are...
4. Given a network IP address of 130.124.0.0 answer the following questions if 8 subnets are to be created a. What dass (A, B or C) is the IP address 130.124.0.07 b. What is the # of borrowed host bits to create 8 subnets? Show your work and/or explain your answer. c Determine the subnet mask d. Determine the number of usable hosts per subnet e. Determine the network address and the broadcast address for each subnet. Network Address (Subnet)...
Network IP Addressing Network Layout of 2 networks Given an IP address and mask of 172.23.29.0/24,...
Network IP Addressing Network Layout of 2 networks Given an IP address and mask of 172.23.29.0/24, design an IP addressing scheme that satisfies the following requirements. Subnet B Specification This network requires space for 62 machines plus the router Number of bits in the subnet Blank 1 IP mask (binary) Blank 2 New IP mask (decimal) Blank 3 Maximum number of usable subnets of this size when using this mask (including the 0th subnet) Blank 4 Number of usable hosts...
12:10 att-subnet1: Attempt 1 192.168.10.128 192.168.10.130 Question 2 -/10 Given: (class C subnetting problem) Network address...
12:10 att-subnet1: Attempt 1 192.168.10.128 192.168.10.130 Question 2 -/10 Given: (class C subnetting problem) Network address 192.168.10.0 Subnet mask: 255.255.255.224 What is the broadcast address of the third subnet? (Hint: Watch the video tutorial) 192.168.10.96 192.168.10.95 192.168.10.63 192.168.10.64 0 of 2 completed Save for Later Submit 12:10 Х att-subnet1: Attempt 1 --/10 Question 1 Given (class C subnetting problem) IP address: 192.168.10.0 Subnet Mask: 255.255.255.128 What is the second usable host IP address of the second subnet (Hint: Watch the...
2. Given the IP address 17.119.47.72, apply Subnet Mask 1 and answer the following questions. [2...
2. Given the IP address 17.119.47.72, apply Subnet Mask 1 and answer the following questions. [2 marks] My subnet mask is: a. What is the subnet address? b. What is the broadcast address for this subnet? Given the IP address 17.119.47.72, apply Subnet Mask 1 and answer the following questions. [2 marks] My subnet mask is: 255.240.0.0 a. What is the subnet address? * What is the broadcast address for this subnet?
using the information given below . what is the ip address , subnet mask , default...
using the information given below
. what is the ip address , subnet mask , default gateway?
** corrections
# of bits in subnet for A
:6
# of bits in submet for B:
3
PC-A
R1 G0/0
R GO/1
S1
PC-B ?
assign the IP ADDRESS information with given information
Given, IP address: 202.44.66.0/24 For Subnet A: It needs 2 valid hosts 2 valid hosts + 2 (network and broadcast) = 22 i.e., It needs 2 bit as host...
A/ Given the following IP address from the Class B address range using the default subnet...
A/ Given the following IP address from the Class B address range using the default subnet mask: 100.110.0.0. Your network plan requires no more than 64 hosts on a subnet. When you configure the IP address in Cisco IOS software, which value should you use as the subnet mask? 255.255.0.0 255.255.128.0 255.255.255.128 255.255.255.252 B/ Identify how many valid host addresses can you have on 192.168.27.32 network with a subnet mask of 255.255.255.240. (2^4) - 2 (2^3) – 2 (2^2)...
IP Address: 192.169.69.47 Subnet Mask: 255.255.192.0 find Network address, Broadcast address, first valid host address, last...
IP Address: 192.169.69.47 Subnet Mask: 255.255.192.0 find Network address, Broadcast address, first valid host address, last valid host address and number of valid hosts in the network. show very clear steps for all the calculations.
Given the following IP address and subnet mask, what is the network identifier? • IP Address: 18.132.219.175 . Subnet Mask: 255.255.248.0 Network ID: BLANK-1 BLANK-1 Add your answer Question 28 Given the following IP address and subnet mask, what is the network identifier? - IP Address: 18.132.219.175 . Subnet Mask: 255.255.248.0 • Broadcast Address: BLANK-1 BLANK-1 Add your answer
In a class B subnet, we know the IP address of one of the hosts and the subnet mask as given below: IP Address: 188.48.82.176 Subnet mask: 255.255.255.248 1) What is the first valid host address in the subnet? (in dotted decimal) 2) What is the last valid address in the subnet? (in dotted decimal) 3) What is the subnet network address? (in dotted decimal) 4) What is the subnet broadcast address? (in dotted decimal) 5) What is the number...
4. Given a network IP address of 130.124.0.0 answer the following questions if 8 subnets are to be created a. What dass (A, B or C) is the IP address 130.124.0.07 b. What is the # of borrowed host bits to create 8 subnets? Show your work and/or explain your answer. c Determine the subnet mask d. Determine the number of usable hosts per subnet e. Determine the network address and the broadcast address for each subnet. Network Address (Subnet)...
12:10 att-subnet1: Attempt 1 192.168.10.128 192.168.10.130 Question 2 -/10 Given: (class C subnetting problem) Network address 192.168.10.0 Subnet mask: 255.255.255.224 What is the broadcast address of the third subnet? (Hint: Watch the video tutorial) 192.168.10.96 192.168.10.95 192.168.10.63 192.168.10.64 0 of 2 completed Save for Later Submit 12:10 Х att-subnet1: Attempt 1 --/10 Question 1 Given (class C subnetting problem) IP address: 192.168.10.0 Subnet Mask: 255.255.255.128 What is the second usable host IP address of the second subnet (Hint: Watch the...
2. Given the IP address 17.119.47.72, apply Subnet Mask 1 and answer the following questions. [2 marks] My subnet mask is: a. What is the subnet address? b. What is the broadcast address for this subnet? Given the IP address 17.119.47.72, apply Subnet Mask 1 and answer the following questions. [2 marks] My subnet mask is: 255.240.0.0 a. What is the subnet address? * What is the broadcast address for this subnet?
using the information given below
. what is the ip address , subnet mask , default gateway?
** corrections
# of bits in subnet for A
:6
# of bits in submet for B:
3
PC-A
R1 G0/0
R GO/1
S1
PC-B ?
assign the IP ADDRESS information with given information
Given, IP address: 202.44.66.0/24 For Subnet A: It needs 2 valid hosts 2 valid hosts + 2 (network and broadcast) = 22 i.e., It needs 2 bit as host...
