Complete the following Algorithm Workbench Question. Use properly aligned pseudocode format when implementing your proposed solution:...

Complete the following Algorithm Workbench Question. Use properly aligned pseudocode format when implementing your proposed solution:

Q) Draw a flowchart showing the general logic for finding the highest value in an array.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Answer is as follows :

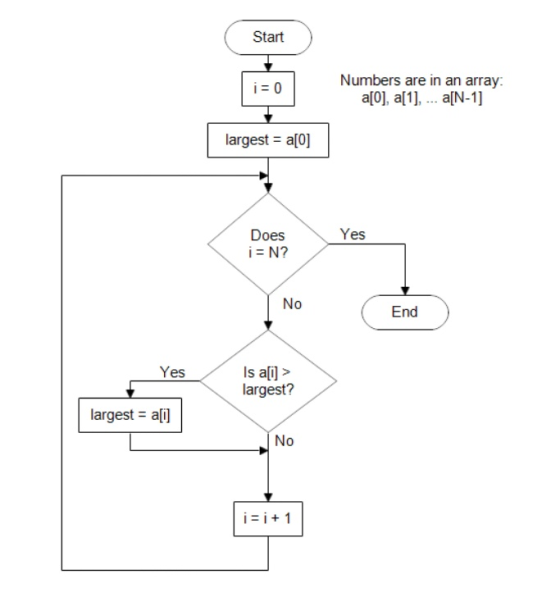

Flow chart for finding largest no. in array :

This flowchart shows the computer algorithm for finding the largest number in a list of numbers. Basically it gets the first number in the list and assumes it is the largest. It is put into the "largest" variable. Then it looks at each number in the list. If the number it is looking at is larger, it becomes the largest. There are N numbers so i goes from 0 to N-1. In the end, the variable "largest" holds the largest number.

if there is any query please ask in comments..
