please show clear steps Investigate the power delivering capacity of different transformer for the following different...
Homework Answers
Add Answer to:
please show clear steps
Investigate the power delivering capacity of different
transformer
for the following different...
Investigate the different transformer connection in terms of their performance under balanced loads. For the following...

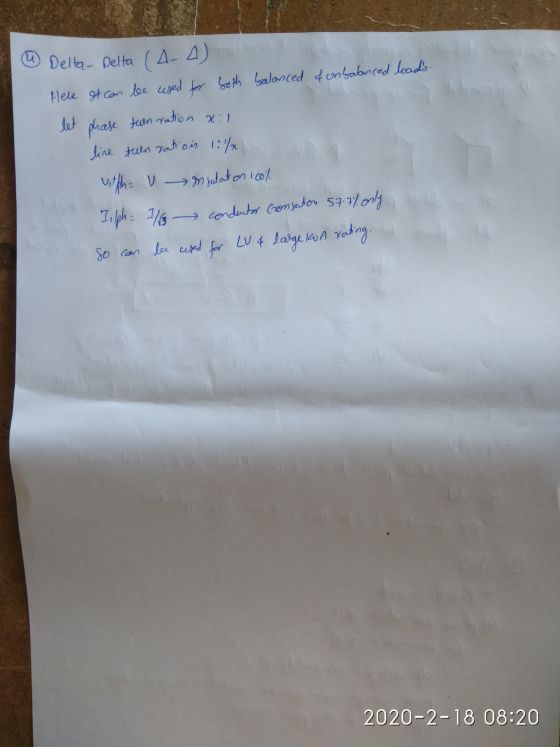

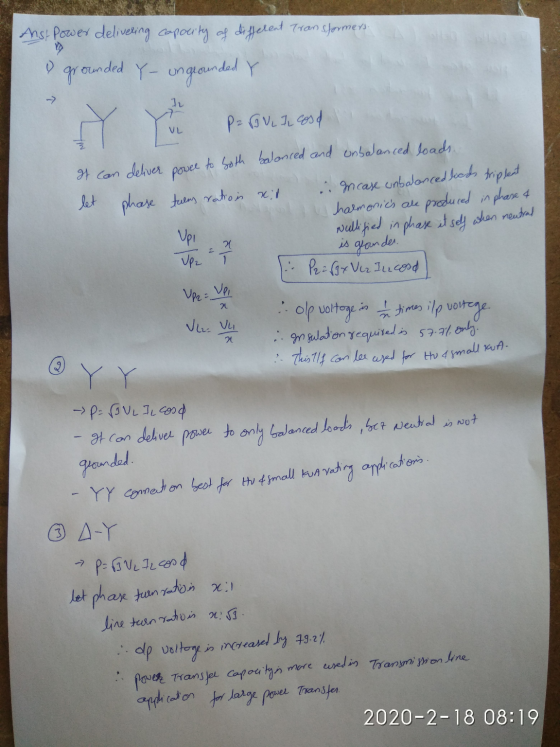

Investigate the different transformer connection in terms of their performance under balanced loads. For the following different three phase transformer connections, apply a balanced three phase resistive load such that the transformer is delivering approximately the rated current on a 125/125 windings. (1). Grounded Y- ungrounded Y (2). Y-Y (3). Delta-Y (4). Delta-Delta
Problem 2: A three-phase transformer bank (1-phase transformers) is to handle 30 MVA and have a...
Problem 2: A three-phase transformer bank (1-phase transformers) is to handle 30 MVA and have a primary voltage of 115kVLL and a secondary voltage of 4.16kVLL. Find the rating of each individual transformer in the bank (high side voltage, low side voltage, transformer turn ratio, and apparent power rating of each transformer) if the bank is connected: Wye-Wye Wye-Delta Delta-Wye Delta-Delta Draw winding connections for (a)-(d) (NOTE: This step does not need to be done in MATLAB). Assume all delta...
A balanced three-phase source with a 208 V rms (line-to-line) is delivering power to a balanced...
A balanced three-phase source with a 208 V rms (line-to-line) is delivering power to a balanced Y-connected load with phase impedance Z1 = 4 + j 3 Ohms in parallel with a balanced delta-connected load with phase impedance Z2 = 7.5 + j 6 Ohms. Calculate the active (real) and reactive (imaginary) powers delivered by the source. Draw the power triangle. What is the power factor of the combined load?
please answer all questions from i to vi. ULIUS 1. Explain how a fuse saving scheme...
please answer all questions from i to vi.
ULIUS 1. Explain how a fuse saving scheme is performed using a reciose. ii. What is a sectionalizer and how does it work is a sectionalizer and how does it work in coordination with a recloser? 111. Explain the effect of the magnetizing inrush current on transformer IV. Explain how transformer core faults, inter-turn faults and oil leaks be detected. V. Show the wiring diagram of a differential relay to protect a...
A three single-phase transformers steps up the three-phase generator voltage of 13.8 kV (line to line)...
A three single-phase transformers steps up the three-phase generator voltage of 13.8 kV (line to line) to a transmission voltage of 138 kV (line to line). The generator rating is 41.5 MVA. Find the voltage, current, and kVA ratings of each transformer for the following connections: Low-voltage windings Delta, high-voltage windings Y. Low-voltage windings Y, high-voltage windings Delta.
help me please please answer many as possible 10. The hysteresis loss in the core of a transformer can be reduced by A. increasing the frequency of the aliemating current, B. using a solid iro...
help me please
please answer many as possible
10. The hysteresis loss in the core of a transformer can be reduced by A. increasing the frequency of the aliemating current, B. using a solid iron core. C. using grain-oriented-steel D, reducing the connected load. 11. In Fig. 1(b) in the text, the phasor I, It is the resultant of the A. exciting and the magnetizing current. B. active and the reactive secondary current. C. primary and the exciting current. D....
show all work please be clear and show all steps thank you Use power series to...
show all work please be clear and show all steps thank you
Use power series to represent the functions: a) f(x) = 1 + 24 ( See ex. 6-3) b) 962) = ( p538 ) 7 Use properties of power series to represent the function f(x) = 2 Hint use tal above 1+24 can use the book , clan notes
Electrical Circuit problem Please show all the steps with details in 'clear handwriting' Problem 4. Find...
Electrical Circuit problem
Please show all the steps with details in 'clear
handwriting'
Problem 4. Find Rab for the circuit in the previous problem, but this time begin by using a delta-wye conversion on the delta giving by the 10, 5, and 12.5 ohm resistors. Hint: your results for equivalent resistance and power should be the same as in the previous problem. 100 120 V + c W - 30 22 -W-TW 3 2022
1. In order to meet an emergency, three single-phase transformers with 12.470/7.200 V are connected in...
1. In order to meet an emergency, three single-phase transformers with 12.470/7.200 V are connected in Delta-Wye to form a three-phase transformer which is fed by a 12.470 V transmission line. If the transformer supplies 60 MVA to a load, calculate: (3 marks) a. The turns ratio for each transformer b. The currents in the primary and secondary windings of the transformer c. The primary and secondary transmission line currents 2. A Wye-Delta transformer is connected to a 66 kV...
Please answer this question Q3. The power rating and the voltage ratio of the power transformer...
Please answer this question
Q3. The power rating and the voltage ratio of the power transformer and the CT ratio are show in Fig 3. Determine the transformation turns ratios and the connection of the interposing transformers required in order to set the differential relays, which are provided with taps. Draw the complete three- phase connection schematic diagram and identify the currents in each of the elements. 150/ 5Y 115 Transformer Vector group: Primary secondary: Yd5 Primary.tertiary YO 1151V2SMVA13V SMVA...
please answer all questions from i to vi.
ULIUS 1. Explain how a fuse saving scheme is performed using a reciose. ii. What is a sectionalizer and how does it work is a sectionalizer and how does it work in coordination with a recloser? 111. Explain the effect of the magnetizing inrush current on transformer IV. Explain how transformer core faults, inter-turn faults and oil leaks be detected. V. Show the wiring diagram of a differential relay to protect a...
help me please
please answer many as possible
10. The hysteresis loss in the core of a transformer can be reduced by A. increasing the frequency of the aliemating current, B. using a solid iron core. C. using grain-oriented-steel D, reducing the connected load. 11. In Fig. 1(b) in the text, the phasor I, It is the resultant of the A. exciting and the magnetizing current. B. active and the reactive secondary current. C. primary and the exciting current. D....
show all work please be clear and show all steps thank you
Use power series to represent the functions: a) f(x) = 1 + 24 ( See ex. 6-3) b) 962) = ( p538 ) 7 Use properties of power series to represent the function f(x) = 2 Hint use tal above 1+24 can use the book , clan notes
Electrical Circuit problem
Please show all the steps with details in 'clear
handwriting'
Problem 4. Find Rab for the circuit in the previous problem, but this time begin by using a delta-wye conversion on the delta giving by the 10, 5, and 12.5 ohm resistors. Hint: your results for equivalent resistance and power should be the same as in the previous problem. 100 120 V + c W - 30 22 -W-TW 3 2022
1. In order to meet an emergency, three single-phase transformers with 12.470/7.200 V are connected in Delta-Wye to form a three-phase transformer which is fed by a 12.470 V transmission line. If the transformer supplies 60 MVA to a load, calculate: (3 marks) a. The turns ratio for each transformer b. The currents in the primary and secondary windings of the transformer c. The primary and secondary transmission line currents 2. A Wye-Delta transformer is connected to a 66 kV...
Please answer this question
Q3. The power rating and the voltage ratio of the power transformer and the CT ratio are show in Fig 3. Determine the transformation turns ratios and the connection of the interposing transformers required in order to set the differential relays, which are provided with taps. Draw the complete three- phase connection schematic diagram and identify the currents in each of the elements. 150/ 5Y 115 Transformer Vector group: Primary secondary: Yd5 Primary.tertiary YO 1151V2SMVA13V SMVA...
