a. There is a uniform layer of linseed oil (n = 1.48) floating on top of...

a. There is a uniform layer of linseed oil (n = 1.48) floating on top of water (n = 1.33). If a light beam is refracted so its angle in the linseed oil is 23.2 degrees, what is the angle of incidence from the air and the angle the light exiting toward the bottom of the water ? b. If you start with the same incident angle you computed in part a, but over time the oil vaporizes until it is gone, what is the new angle in the water, and interpret.
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

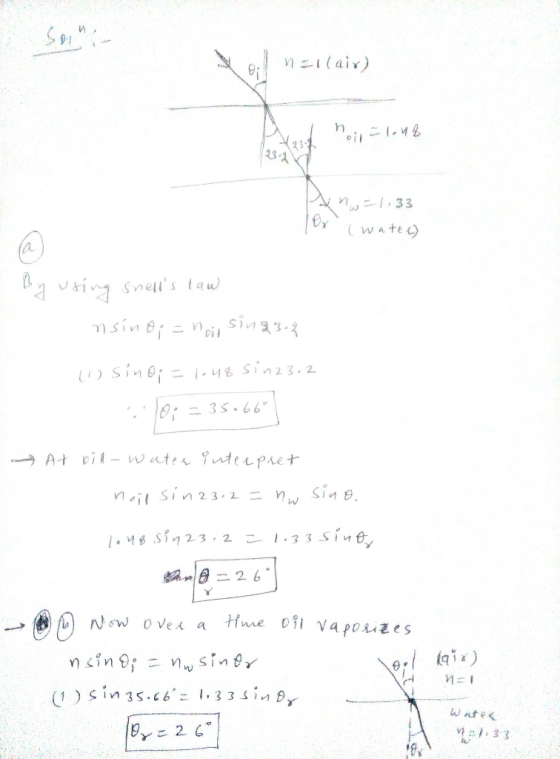

Answer #1

0 0
Add a comment
