simplify to obtain sum of products (SOP) (A+B)(A+C')(A+D)(BC'D+E)

Question

Question

simplify to obtain sum of products (SOP)

(A+B)(A+C')(A+D)(BC'D+E)

engineering Electrical-Engineering

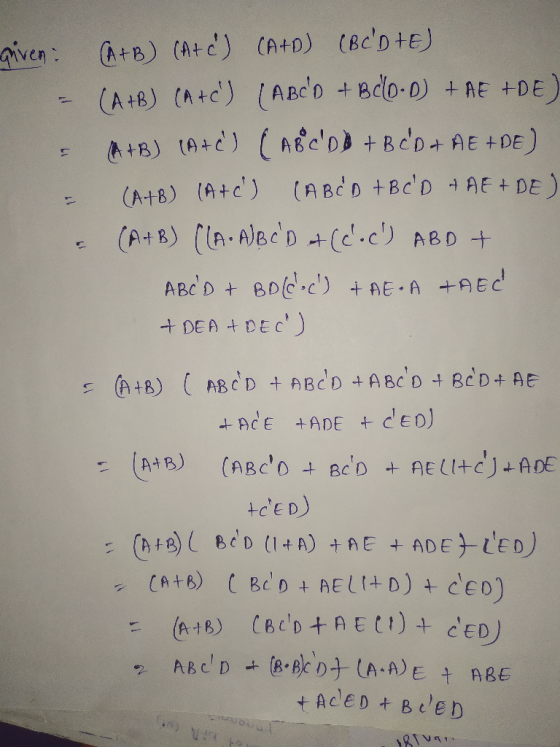

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

derive the minimum SOP(Sum of Products) for the outputs a,b,c,d,e,f,g of the 7 segment display. show...

derive the minimum SOP(Sum of Products) for the outputs a,b,c,d,e,f,g of the 7 segment display. show some work implement in logisim i derive the minimum SOP(Sum of Products) for the outputs a,b,c,d,e,f,g of the 7 segment display. show some work implement in logisim i Code converter 7-segment display
Obtain the sum of product (SOP) using the Laws and and Identity of Boolean Algebra. (A+B’+C)(B’+C+D)(A’+C)

Obtain the sum of product (SOP) using the Laws and and Identity of Boolean Algebra. (A+B’+C)(B’+C+D)(A’+C)
In each case, multiply out to obtain a sum of products: (Simplify where possible) (a) (A’+B’+C...

In each case, multiply out to obtain a sum of products: (Simplify where possible) (a) (A’+B’+C +D’)(E+C+D+A+B)(D+B+C)(C+A’)(A+D) (b) (X+Y+Z)(Y+X+W’+Z’)(Z’+X’+W)(Y’+X’)(W’+X)

Simplify F(A,B,C,D) = (1,3,4,6,9,11,12,15) algebraically. The result is B'D' + A'BD + BC'D + ACD'. Show...

Simplify F(A,B,C,D) = (1,3,4,6,9,11,12,15) algebraically. The result is B'D' + A'BD + BC'D + ACD'. Show how to obtain this result with detailed steps explaining which axioms/theorems were used. NO K-MAPS!!! Thank you!
Simplify the expression to get a (SOP) sum of product result with 3 terms. F =...

Simplify the expression to get a (SOP) sum of product result with 3 terms. F = (A + C)(B’ + D)(A + C’ + D’)(B’ + C’ + D’)
