A step-up transformer has a primary coil with 145 loops and a secondary coil with 1,595...

A step-up transformer has a primary coil with 145 loops and a secondary coil with 1,595 loops. If the primary coil is supplied with a household current of 120 V and 12 A, (a) what voltage is produced in the secondary circuit? V (b) What current flows in the secondary circuit? A

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

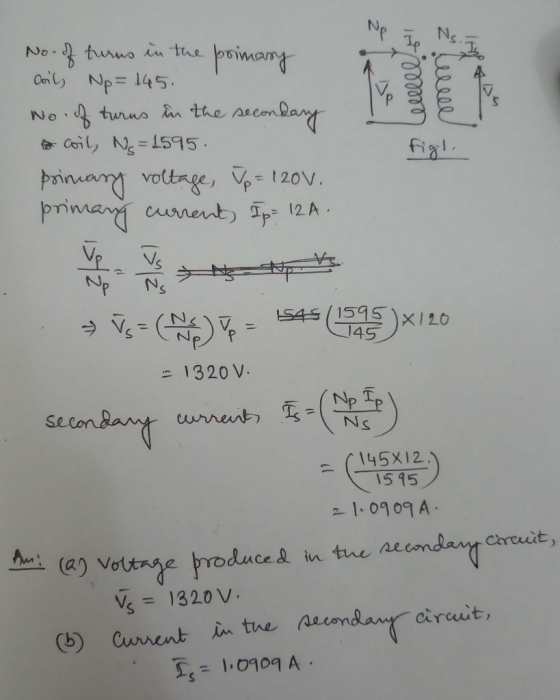

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A step-up transformer has a primary coil with 145 loops and a secondary coil with 1,595...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The primary coil of a transformer has 3,582 loops. The secondary coil has 870,183 loops. The...

    The primary coil of a transformer has 3,582 loops. The secondary coil has 870,183 loops. The primary coil has a 11 A current and 37 V. a.) Determine the power of the primary coil. W b) Assuming no losses, determine the power of the secondary coil. W c.) Calculate the voltage in the secondary coil. V d.) Calculate the current in the secondary coil. A

  • A transformer has 100 loops on the primary coil and 1000 loops on the secondary coil....

    A transformer has 100 loops on the primary coil and 1000 loops on the secondary coil. If the primary coil is connected to 120 VAC, what will the voltage be between the leads in the secondary coil?

  • #11 Step Up Transformer A transformer primary coil has 2,300 windings, while the sec- ondary coil...

    #11 Step Up Transformer A transformer primary coil has 2,300 windings, while the sec- ondary coil has 12,400 windings. If the primary coil is operated at a RMS voltage of 10.0 V, what is the RMS voltage in the secondary coil? A. 1.86 V B. 24.1 V C. 53.9 V D. 120 V w

  • A step-up transformer has 23 turns on the primary coil and 800 turns on the secondary...

    A step-up transformer has 23 turns on the primary coil and 800 turns on the secondary coil. If this transformer is to produce an output of 5000V with a 14-mA current, what input current and voltage are needed? Input current = .49 A V = ? kV

  • A step-up transformer has 28 turns on the primary coil and 710 turns on the secondary...

    A step-up transformer has 28 turns on the primary coil and 710 turns on the secondary coil. If this transformer is to produce an output of 5000 V with a 11-mA current, what input current and voltage are needed? What is Vi? Express your answer using two significant figures.

  • Part A: A transformer with turns ratio (primary/secondary) of 18:1 is used to step down the...

    Part A: A transformer with turns ratio (primary/secondary) of 18:1 is used to step down the voltage from a 120 V wall socket to be used in a battery charger. What is the voltage supplied to the recharger? Part B: The electric motor in a toy train requires a voltage of 9.0 V. Find the ratio of turns on the primary coil to the turns on the secondary coil in a transformer that will step the 120-V household voltage down...

  • 1 pts The primary coil of a transformer has 100 loops and is connected to a...

    1 pts The primary coil of a transformer has 100 loops and is connected to a circuit with 120 volts (primary voltage). What is the output voltage (secondary voltage) if the secondary coil has 50 loops? 60 volts O 240 volts O 100 volts O 50 volts 1 pts Question 18 Question 18 1 pts If the current in the primary coil of the above problem is 2 amps, what is the output current (current in secondary coil)?SEP o 1...

  • An ideal step-down transformer has a primary coil of 370 turns and a secondary coil of...

    An ideal step-down transformer has a primary coil of 370 turns and a secondary coil of 22 turns. Its primary coil is plugged into an outlet with 115 V, from which it draws a current of 0.29 A. (a) What is the voltage in the secondary coil? (b) Calculate the current in the secondary coil? (c) Assuming that the transformer secondary is driving a resistive load, calculate the average power dissipated in the resistor.

  • A step-down transformer has 83 turns in its primary coil and 24 turns in its secondary...

    A step-down transformer has 83 turns in its primary coil and 24 turns in its secondary coil. The primary coil is connected to standard household voltage (rms = 120.0 V, 60.0 Hz). Suppose the secondary coil is connected to a 12.0-Ω resistor. (a) What is the maximum current in the resistor? (b) What is the average power dissipated by the resistor?

  • A transformer has 1020 turns in the primary and 12 turns in the secondary. (a) Is...

    A transformer has 1020 turns in the primary and 12 turns in the secondary. (a) Is this a step-up or step-down transformer? (b) If the primary is connected across 120 V rms, what is the open-circuit voltage across the secondary? ( ) V (c) If the primary current is 0.3 A, what is the secondary current, assuming negligible magnetization current and no power loss? ( ) A
