The primary coil of a transformer has 3,582 loops. The secondary coil has 870,183 loops. The...

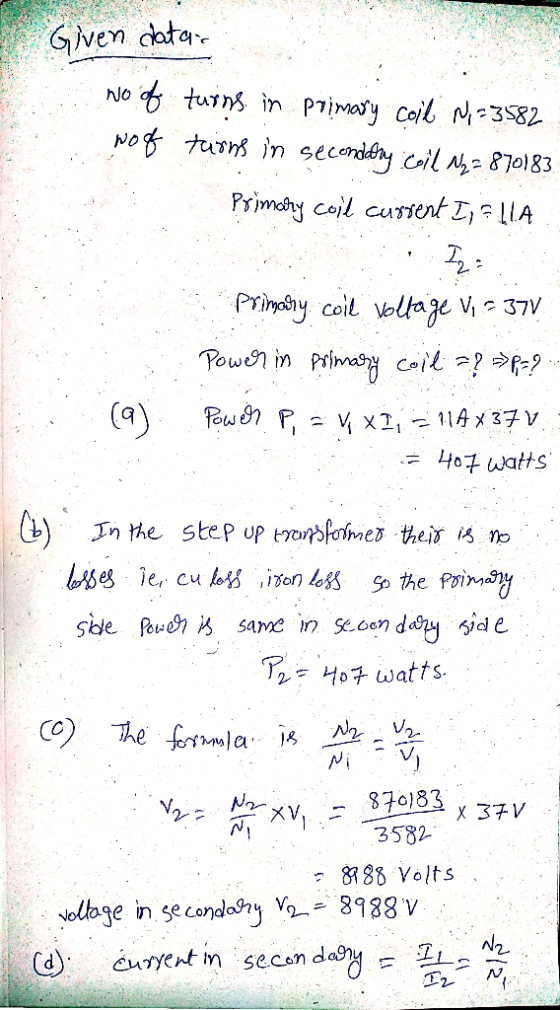

The primary coil of a transformer has 3,582 loops. The secondary coil has 870,183 loops. The primary coil has a 11 A current and 37 V.
a.) Determine the power of the primary coil.
W
b) Assuming no losses, determine the power of the secondary
coil.
W
c.) Calculate the voltage in the secondary coil.
V

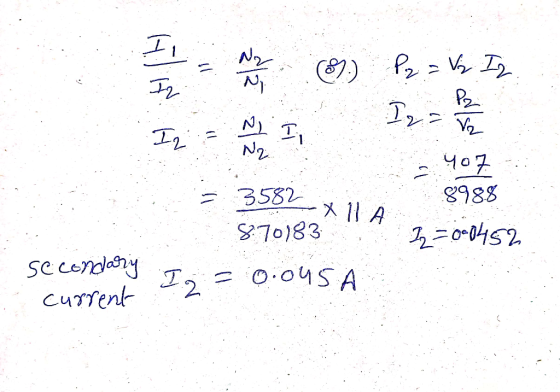

d.) Calculate the current in the secondary coil.
A
Homework Answers
Add Answer to:
The primary coil of a transformer has 3,582 loops. The secondary
coil has 870,183 loops. The...
A step-up transformer has a primary coil with 145 loops and a secondary coil with 1,595...
A step-up transformer has a primary coil with 145 loops and a secondary coil with 1,595 loops. If the primary coil is supplied with a household current of 120 V and 12 A, (a) what voltage is produced in the secondary circuit? V (b) What current flows in the secondary circuit? A
An ideal step-down transformer has a primary coil of 370 turns and a secondary coil of...
An ideal step-down transformer has a primary coil of 370 turns and a secondary coil of 22 turns. Its primary coil is plugged into an outlet with 115 V, from which it draws a current of 0.29 A. (a) What is the voltage in the secondary coil? (b) Calculate the current in the secondary coil? (c) Assuming that the transformer secondary is driving a resistive load, calculate the average power dissipated in the resistor.
A transformer has 100 loops on the primary coil and 1000 loops on the secondary coil....
A transformer has 100 loops on the primary coil and 1000 loops on the secondary coil. If the primary coil is connected to 120 VAC, what will the voltage be between the leads in the secondary coil?
An ideal step-down transformer has a primary coil of 400 turns and a secondary coil of...
An ideal step-down transformer has a primary coil of 400 turns and a secondary coil of 25 turns. Its primary coil is plugged into an outlet with 110 V(AC), from which it draws an rms current of 0.83 A. 1.)What is the voltage in the secondary coil? 2.)Calculate the rms current in the secondary coil. 3.)Assuming that the transformer secondary is driving a resistive load, calculate the average power dissipated in the resistor.
#11 Step Up Transformer A transformer primary coil has 2,300 windings, while the sec- ondary coil...
#11 Step Up Transformer A transformer primary coil has 2,300 windings, while the sec- ondary coil has 12,400 windings. If the primary coil is operated at a RMS voltage of 10.0 V, what is the RMS voltage in the secondary coil? A. 1.86 V B. 24.1 V C. 53.9 V D. 120 V w
1 pts The primary coil of a transformer has 100 loops and is connected to a...
1 pts The primary coil of a transformer has 100 loops and is connected to a circuit with 120 volts (primary voltage). What is the output voltage (secondary voltage) if the secondary coil has 50 loops? 60 volts O 240 volts O 100 volts O 50 volts 1 pts Question 18 Question 18 1 pts If the current in the primary coil of the above problem is 2 amps, what is the output current (current in secondary coil)?SEP o 1...
Problem 9. (0.2 pts). An ideal step-down transformer has a primary coil of 370 turns and...
Problem 9. (0.2 pts). An ideal step-down transformer has a primary coil of 370 turns and a secondary 22 turns. Its primary coil is plugged into an outlet with 115 V, from which it draws a current coil of of 0.29 A. (a) What is the voltage in the secondary coil? (b) Calculate the current in the secondary coil? (c) Assuming that the transformer secondary is driving a resistive load, calculate the average power dissipated in the resistor.
A particular transformer has fewer turns of wire on the secondary coil than on the primary...
A particular transformer has fewer turns of wire on the secondary coil than on the primary coil. Which of the following statements is true? The primary voltage is greater than the secondary voltage The secondary power is greater than the primary power The length of the secondary coil is greater than the length of the primary coil The primary current is greater than the secondary current
The input current of a transformer is 4 A. The primary coil has 50 loops and...
The input current of a transformer is 4 A. The primary coil has 50 loops and the secondary has 25 loops. The current that the transformer puts out is
A step-down transformer has 83 turns in its primary coil and 24 turns in its secondary...
A step-down transformer has 83 turns in its primary coil and 24 turns in its secondary coil. The primary coil is connected to standard household voltage (rms = 120.0 V, 60.0 Hz). Suppose the secondary coil is connected to a 12.0-Ω resistor. (a) What is the maximum current in the resistor? (b) What is the average power dissipated by the resistor?
#11 Step Up Transformer A transformer primary coil has 2,300 windings, while the sec- ondary coil has 12,400 windings. If the primary coil is operated at a RMS voltage of 10.0 V, what is the RMS voltage in the secondary coil? A. 1.86 V B. 24.1 V C. 53.9 V D. 120 V w
1 pts The primary coil of a transformer has 100 loops and is connected to a circuit with 120 volts (primary voltage). What is the output voltage (secondary voltage) if the secondary coil has 50 loops? 60 volts O 240 volts O 100 volts O 50 volts 1 pts Question 18 Question 18 1 pts If the current in the primary coil of the above problem is 2 amps, what is the output current (current in secondary coil)?SEP o 1...
Problem 9. (0.2 pts). An ideal step-down transformer has a primary coil of 370 turns and a secondary 22 turns. Its primary coil is plugged into an outlet with 115 V, from which it draws a current coil of of 0.29 A. (a) What is the voltage in the secondary coil? (b) Calculate the current in the secondary coil? (c) Assuming that the transformer secondary is driving a resistive load, calculate the average power dissipated in the resistor.
