In an interference experiment, a laser of wavelength 670 nm is passed through two parallel slits...

In an interference experiment, a laser of wavelength 670 nm is passed through two parallel slits separated by d=0.25mm. On a screen very far from the slits, what is the maximum number of bright fringes formed?

science physics

Add a comment Improve this question Transcribed image text

Answer 1

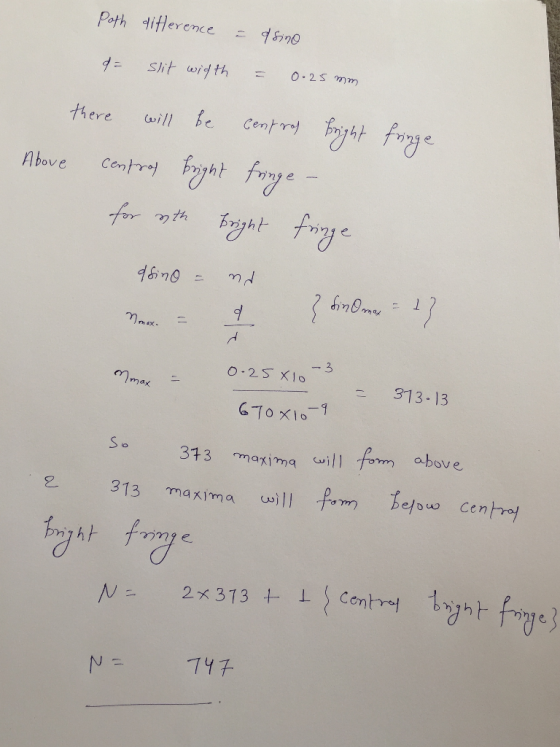

Answer #1

Add a comment

Answer 2

Similar Homework Help Questions

In an interference experiment, a laser of wavelength 670 nm is passed through two parallel slits...

In an interference experiment, a laser of wavelength 670 nm is passed through two parallel slits separated by 0.25mm. An interference pattern is formed on the screen placed at a distance of 90 cm from the slits. What is the distance between the 3rd bright fringe above the cbf and the 3rd dark fringe below the cbf?
In an interference experiment, a laser of wavelength 670 nm is passed through two parallel slits...

In an interference experiment, a laser of wavelength 670 nm is passed through two parallel slits separated by 0.25mm. An interference pattern is formed on the screen placed at a distance of 90 cm from the slits. What is the distance between the 3rd bright fringe above the cbf and the 3rd dark fringe below the cbf? a) 12.06 mm b) 10.85 mm c) 14.47 mm d) 13.27 mm
In a diffraction experiment, a laser of wavelength 670 nm is passed through a single slit...

In a diffraction experiment, a laser of wavelength 670 nm is passed through a single slit of width 0.08 mm. On a screen very far from the slits, what is the maximum number of dark fringes formed? a. 238 b, 119 c. 120 d. 239

Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.25 mm. The...

Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.25 mm. The interference pattern is observed on a screen 90 cm from the slits. If the width of each slit is 0.08 mm, (a) what is the order of the first bright fringe missing from the pattern? (b)how far from the cbf is this missing fringe?
Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.50 mm. The...

Coherent light of wavelength 670 nm passes through two parallel slits separated by 0.50 mm. The interference pattern is observed on a screen 75 cm from the slits. If the width of each slit is 0.10 mm, how far from the central bright fringe is the first missing fringe? a. 5.0 mm b. 10 mm c. 2.5 mm d. 7.5 mm
A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How...

A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How far apart are the bright interference fringes on a screen 5 m away from the double slits? cm 2. (-/10 Points) DETAILS SERCP7 24.P.002. MY NOTES PRACTICE ANOTHER In a Young's double-slit experiment, a set of parallel sits with a separation of 0.050 mm is illuminated by light having a wavelength of 593 nm and the interference pattern observed on a screen 3.50 m...

Problem Statement Light of wavelength 519 nm passes through two slits. In the interference pattern on...

Problem Statement Light of wavelength 519 nm passes through two slits. In the interference pattern on a screen 4.6 m away, adjacent bright fringes are separated by 5.2 mm in the general vicinity of the center of the pattern. What is the separation of the two slits? Visual Representation • Draw the slits • Draw the screen a distance L from the slits • Draw the paths from each slit • Mark the bright locations on the screen.
A laser with a wavelength of 470. nm illuminates two narrow slits. The interference pattern from...

A laser with a wavelength of 470. nm illuminates two narrow slits. The interference pattern from the double slits is viewed on a screen that is 3.30 m away. Over a distance of 41.0 mm there are 11.0 bright fringes with the first and last fringe situated exactly at each end of that distance. What is the spacing between the two slits?
Light of wavelength 519 nm passes through two slits. In the interference pattern on a screen...

Light of wavelength 519 nm passes through two slits. In the interference pattern on a screen 4.6 m away, adjacent bright fringes are separated by 5.2 mm in the general vicinity of the center of the pattern. What is the separation of the two slits? Draw the slits • Draw the screen a distance L from the slits • Draw the paths from each slit • Mark the bright locations on the screen. Start with the double slit bright fringe...

Light of wavelength 519 nm passes through two slits. In the interference pattern on a screen...

Light of wavelength 519 nm passes through two slits. In the interference pattern on a screen 4.6 m away, adjacent bright fringes are separated by 5.2 mm in the general vicinity of the center of the pattern. What is the separation of the two slits? Draw the slits • Draw the screen a distance L from the slits • Draw the paths from each slit • Mark the bright locations on the screen. Start with the double slit bright fringe...
