Draw a program on the rungs below that uses a timer function. When a NO contact...
Draw a program on the rungs below that uses a timer function. When a NO contact (I-0) is closed a coil is energized and stays energized for 10 seconds. Clearly indicate which timer function was used and what inputs and preset values were used.
Homework Answers

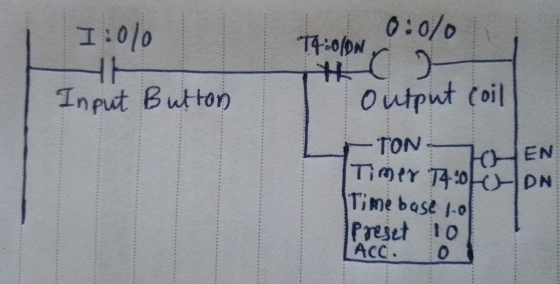

In following rung we have used normally open open input instruction, which is might be connected to certain sensor or any button. This input is connected to outpit coil and timer function, which will starts immediately when input came from sensor or button.
When timer starts it will gives DONE bit after 10 seconds, which will turn off coil by normally closed contact (Interlock). This normally closed contact will get opens when DONE bit comes from timer, and turn off the coil.
Note that input is momentary.
