A resistor has a value of 96 ΩΩ and if the base current is 20 A...

A resistor has a value of 96 ΩΩ and if the base current is 20 A and base voltage is 240 V. Find the per-unit value of the resistor.

Answer:

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

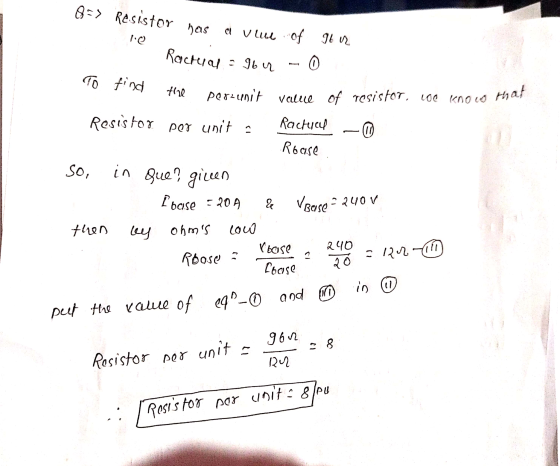

Answer #1

0 0
Add a comment
