Three resistors have resistances of 1.60 Ω, 11.5 Ω and 22.0 Ω. Determine the equivalent resistance...
Three resistors have resistances of 1.60 Ω, 11.5 Ω and 22.0 Ω. Determine the equivalent resistance if they are connected in the following arrangements.
a. in parallel
b. in series

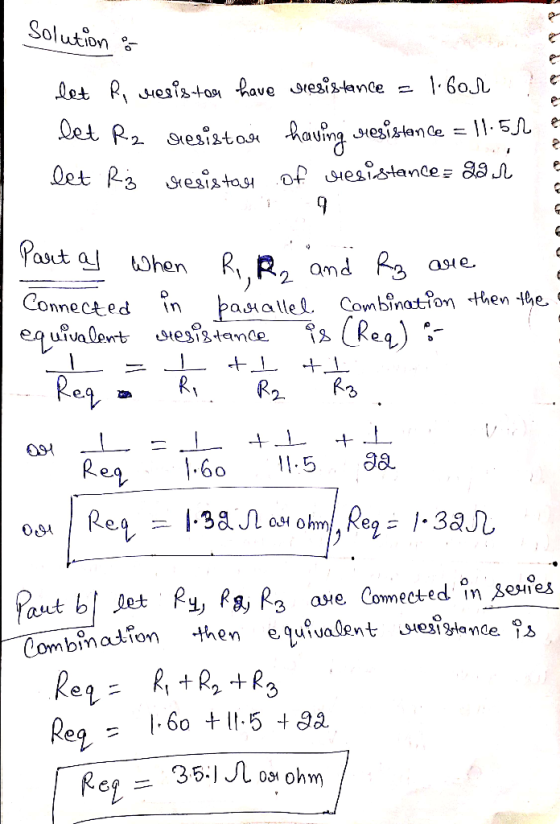

Homework Answers
Add Answer to:
Three resistors have resistances of 1.60 Ω, 11.5 Ω and 22.0 Ω.
Determine the equivalent resistance...
Two resistors have resistances of 2.20 Ω and 0.578 Ω. Determine the equivalent resistance if they...
Two resistors have resistances of 2.20 Ω and 0.578 Ω. Determine the equivalent resistance if they are connected in series and in parallel. (a) in series Ω (b) in parallel Ω
Three resistors in parallel have an equivalent resistance of 5.0 Ω . Two of the resistors...
Three resistors in parallel have an equivalent resistance of 5.0 Ω . Two of the resistors have resistances of 10 Ω and 30 Ω . What is the resistance of the third resistor? R= ___? express the correct units
Two resistors connected in series have an equivalent resistance of 7.9 Ω . The same resistors...
Two resistors connected in series have an equivalent resistance of 7.9 Ω . The same resistors connected in parallel have an equivalent resistance of 1.5 Ω . What is the resistance of each resistor? Enter your answers in ascending order separated by a comma.
Two resistors connected in series have an equivalent resistance of 667.1 Ω. When they are connected...
Two resistors connected in series have an equivalent resistance of 667.1 Ω. When they are connected in parallel, their equivalent resistance is 157.4 Ω. Find the resistance of each resistor. a-) small resistance? b-)large resistance?
Two resistors connected in series have an equivalent resistance of 699.9 Ω. When they are connected...
Two resistors connected in series have an equivalent resistance of 699.9 Ω. When they are connected in parallel, their equivalent resistance is 124.3 Ω. Find the resistance of each resistor. Ω (small resistance) Ω (large resistance)
Three resistors (234 Ω, 159 Ω, and 301 Ω) are connected in a DC circuit. Determine...
Three resistors (234 Ω, 159 Ω, and 301 Ω) are connected in a DC circuit. Determine the equivalent resistance if: a. Each resistor is connected in series. Req = ______ Ω b. The resistors are connected in parallel to each other. Req = _______ Ω
When resistors 1 and 2 are connected in series, the equivalent resistance is 14.3 Ω. When...
When resistors 1 and 2 are connected in series, the equivalent resistance is 14.3 Ω. When they are connected in parallel, the equivalent resistance is 2.70 Ω. What are (a) the smaller resistance and (b) the larger resistance of these two resistors?
When resistors 1 and 2 are connected in series, the equivalent resistance is 18.4 Ω. When...
When resistors 1 and 2 are connected in series, the equivalent resistance is 18.4 Ω. When they are connected in parallel, the equivalent resistance is 3.50 Ω. What are (a) the smaller resistance and (b) the larger resistance of these two resistors?
Given two resistors, R1 = 100 Ω and R2 = 470 Ω, find the equivalent resistance...
Given two resistors, R1 = 100 Ω and R2 = 470 Ω, find the equivalent resistance if connected: (a) in series and (b) in parallel. (c) Suppose a 3rd resistor is combined with these two resistors to produce a certain desired effective resistance. For each of the following Req, determine the value of the 3rd resistor and explain how it should be connected with the other two: (i) 675 Ω, (ii) 33.0 Ω. (a. 570 Ω, b. 82.5 Ω, c....
Two resistors connected in series have an equivalent resistance of 580 Ω. When they are connected...
Two resistors connected in series have an equivalent resistance
of 580 Ω. When they are connected in parallel, their equivalent
resistance is 123 Ω. Find the resistance of each resistor.
Ω (small resistance)
Ω (large resistance)
Please answer all parts correctly!!!! Thank you so much in
advance!
Safari File Edit View History Bookmarks Window Help 46% DERI Mon 3:20:28 PM 6Ω 5 2 4Ω 8Ω 8. -10 points SerCP11 18.3.P.009 My Notes Ask Your Teacher Two resistors connected in series...
Two resistors connected in series have an equivalent resistance
of 580 Ω. When they are connected in parallel, their equivalent
resistance is 123 Ω. Find the resistance of each resistor.
Ω (small resistance)
Ω (large resistance)
Please answer all parts correctly!!!! Thank you so much in
advance!
Safari File Edit View History Bookmarks Window Help 46% DERI Mon 3:20:28 PM 6Ω 5 2 4Ω 8Ω 8. -10 points SerCP11 18.3.P.009 My Notes Ask Your Teacher Two resistors connected in series...
