Propose a circuit that has an effective resistance of 6666ohms. Include drawing.

Question

Question

science physics

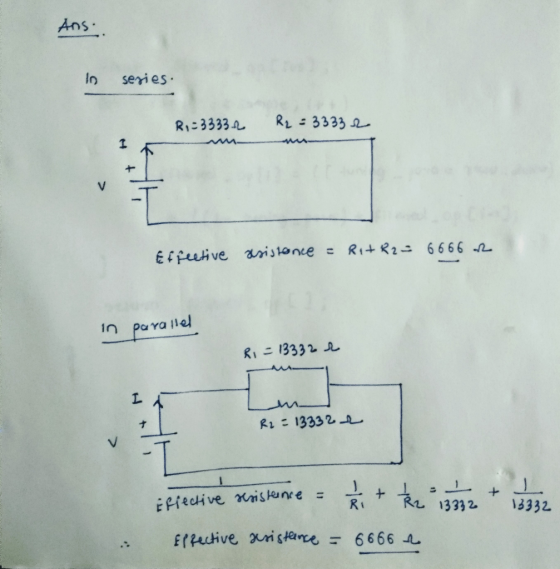

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

19. Using Thévenin's theorem, determine the effective voltage and the effective resistance of the circuit in...

19. Using Thévenin's theorem, determine the effective voltage and the effective resistance of the circuit in Figure F with R5 removed R,-100 Ω R, 1000 Ω R, 99 Ω RS: 10 Ω V 10 V 4 FIGURE F Circuit for problems 19, 20, 21 and 22. 20. What is the current through R, of the circuit of Figure F?
whats the approximate power factor in a 120volt AC circuit drawing 8 amperes if the resistance...

whats the approximate power factor in a 120volt AC circuit drawing 8 amperes if the resistance in the circuit is 10 ohms?
how is the effective resistance affected as additional resistors are added to the circuit in parallel.

how is the effective resistance affected as additional resistors are added to the circuit in parallel.

To calculate the effective resistance of a circuit with resistors in parallel the following equation can...

To calculate the effective resistance of a circuit with resistors in parallel the following equation can be used: Reffactive R R2R R,n a. If the resistance of each resistor is labelled R, to R, write the effective resistance of the circuit in sigma notation b. The voltage applied to the circuit varies with time, t, and the initial voltage variation applied to the circuit is described by the function oi. Find a binomial series approximation of the voltage using the...
Determine the equivalent resistance of the circuit. Create a new circuit with one resistor having the...

Determine the equivalent resistance of the circuit. Create a new circuit with one resistor having the value equal to the equivalent resistance and measure the current leaving the battery. Does it match your first value? Please include drawing of new circuit and your work. Thank you for your help!! 4.0 0 10.0 0 5.0 V 4.0 0 Current 0.50 A 18.00 0 0 0 0 4.0 0
Determine the time constant for an RL circuit having an effective resistance of 1.11 ✕ 104...

Determine the time constant for an RL circuit having an effective resistance of 1.11 ✕ 104 Ω and an inductance of 2.09 ✕ 10−2 H. s

Question 1 a) Calculate the Effective Resistance of the circuit and total current of the network...

Question 1 a) Calculate the Effective Resistance of the circuit and total current of the network in figure 1 (5 marks) b) Calculate the Effective Resistance of the Network of Resistors in figure 2 (5 marks) Total 10 marks Space to answer Question 1 here + 9 V - R 90 12 R2 45 12 SR 180 12 Figure 1: 122 122 102 102 A $20 202 222 122 B Figure 2
Question 1 a) Calculate the Effective Resistance of the circuit and total current of the network...

Question 1 a) Calculate the Effective Resistance of the circuit and total current of the network in figure 1 (5 marks) b) Calculate the effective Resistance of the Network of Resistors in figure 2 (5 marks) Total 10 marks Space to answer Question 1 here + 9V ZR, 90 32 3R₂ 45 Ω 3R, 180 12 Figure 1: 10 10 102 10 A 20 320 $202 10 B Figure 2
For the circuit shown below, determine the effective resistance of the entire circuit. Find the c...

For the circuit shown below, determine the effective resistance of the entire circuit. Find the current flowing through and voltage drop across each resistor and draw the power box. If a compass was placed at points A, B and C, where would it point? Explain. SHOW ALL YOUR WORK PLEASE THANK YOU :) PLEASE EXPLAIN AND SHOW YOUR WORK PLEASE :)!!! THANK YOU SO MUCH 12Ω 12Ω 15Ω 12Ω 12Ω 5.0 Ω 12Ω 12Ω 15Ω 12Ω 12Ω 5.0 Ω

In the infinite hexagonal grid, resistance of each branch is R. Determine the effective resistance of...

In the infinite hexagonal grid, resistance of each branch is R. Determine the effective resistance of the circuit between the terminal pairs A–B and A–C.
