A 10,000 uF capacitor is in series with a 1 uH inductor. What is Zeq of...

A 10,000 uF capacitor is in series with a 1 uH inductor. What is Zeq of the series combination?
The frequency is 10,000 radians/second. Use Letter answers from the MUTIPLIER & UNITS BANK.
Sign of the Reactance (Impedance) of the inductor ____
Sign of the Reactance (Impedance) of the capacitor ____
Magnitude of the Reactance (Impedance) combination ____


engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

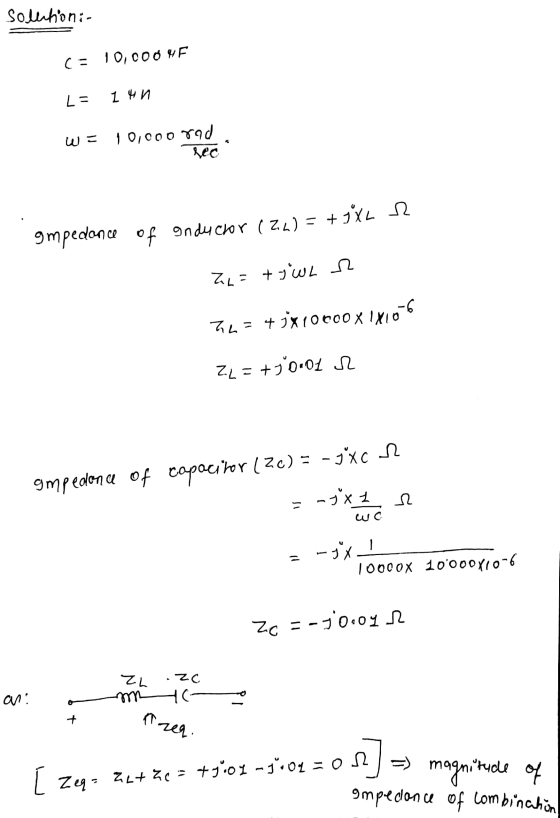

Answer #1

0 0
Add a comment
