Hot: T_inlet = 80, T_out = 65 Cold: T_inlet = 10, T_out = 25 Explain in...

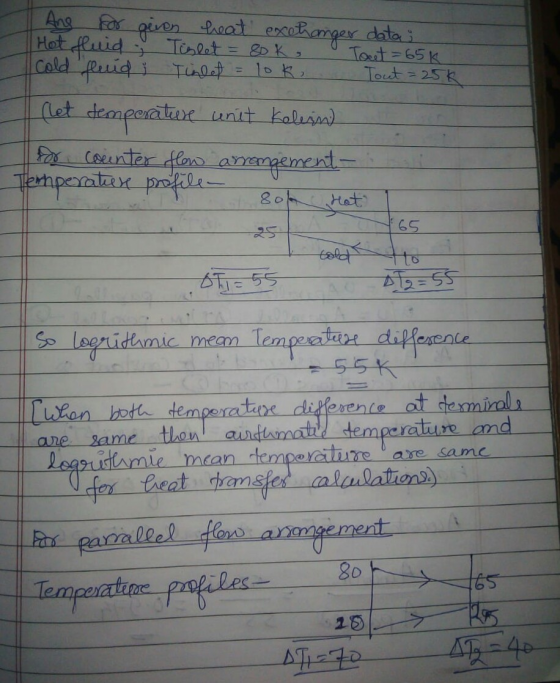

Hot: T_inlet = 80, T_out = 65
Cold: T_inlet = 10, T_out = 25

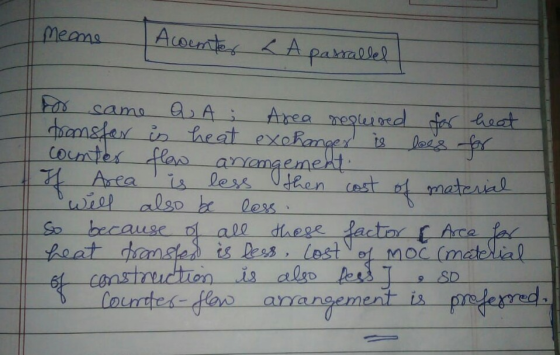

Explain in detail with the available data why counter flow arrangement is preferred for this heat exchanger.

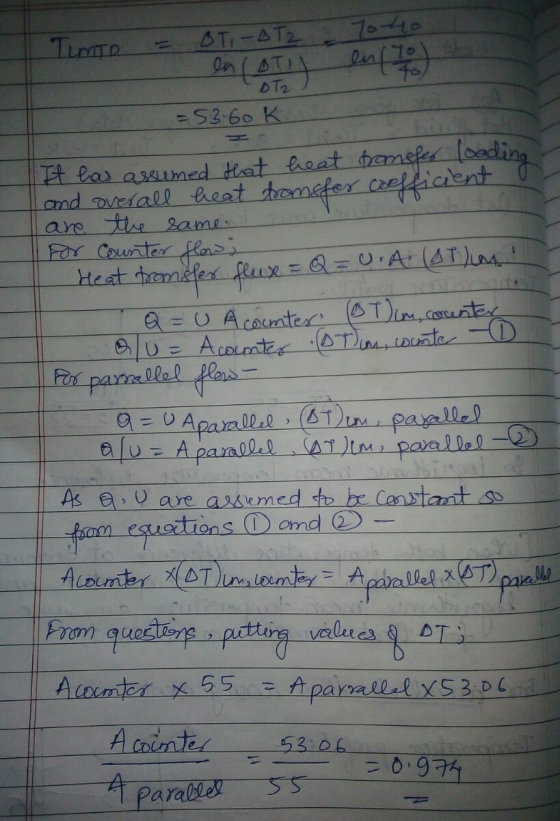

Assume that the prescribed heat transfer loading and overall heat transfer coefficient are the same.
Homework Answers
Add Answer to:
Hot: T_inlet = 80, T_out = 65
Cold: T_inlet = 10, T_out = 25
Explain in...
11.20 Heat exchanger of counter flow arrangement with temperatures at inlet of hot and cold fluids...
11.20 Heat exchanger of counter flow arrangement with temperatures at inlet of hot and cold fluids are (200°C) and (60°C) gave outlet temperature of (110°C) for both sides as the surfaces were clean. After long time of use for same the inlet temperatures and flow rate, the hot fluid outlet was (130°C). Find the change in the overall heat transfer coefficient and the heat transfer values by percentage. Ans.: -37.4%, -22.2% 11.21 A liquid with a specific heat of (3200J/kg....
Hot water flows thorough a parallel flow heat exchanger at a rate of 10 kg/min and...
Hot water flows thorough a parallel flow heat exchanger at a rate of 10 kg/min and is cooled by a cold water stream of flow rate 25 kg/min. The inlet temperatures of hot and cold water streams are 70 oC and 25 oC, respectively. The outlet temperature of the hot water is expected to be 50 oC. The individual convective heat transfer coefficient on both sides of the heat transfer area is 600 W/m2 .K. Take the specific heat for...
Question 5 The following data is given for counter flow in concentric tube heat exchanger, mean...
Question 5 The following data is given for counter flow in concentric tube heat exchanger, mean heat transfer area = 0.02 m2 Test No Flow rate hot Flow rate Tin hotTout hot|Tin cold Tout cold (L/min) cold (L/min) (THI) (TH2) (TCI) (TC2) 13 1 60 56 30 42 a) Calculate the heat transfer rate in kW. b) The overall heat transfer coefficient U. c) The mean temperature efficiency of the two circuits (ń).
Cold water (Cp = 4180 J/kg · °C) leading to a shower enters a thin-walled double-pipe...
Cold water (Cp = 4180 J/kg · °C) leading to a shower enters a thin-walled double-pipe counter-flow heat exchanger at 15°C at a rate of 0.25 kg/s and is heated to 45°C by hot water (Cp = 4190 J/kg · °C) that enters at 100°C at a rate of 3 kg/s. If the overall heat transfer coefficient is 950 W/m2 · °C. determine the rate of heat transfer and the heat transfer surface area of the heat exchanger using the...
Consider a cross-flow heat exchanger with a surface area of 10 m². The cold fluid has...
Consider a cross-flow heat exchanger with a surface area of 10 m². The cold fluid has a heat capacity rate of 2310 W/K and inlet and outlet temperatures of 25°C and 150°C respectively. The hot fluid has a heat capacity rate of 2000 W/K and an inlet temperature of 325°C. If the cold fluid can be considered mixed and the hot fluid unmixed, find the overall heat transfer coefficient, u, in W/m2.K, and the outlet temperature, in °C, of the...
3.) A thin-walled container with a hot fluid (T50 °C) is placed in a quiescent cold water bath (Thth10 °C). The interior and exterior sides of the container may be approximated as vertical plates, an...
3.) A thin-walled container with a hot fluid (T50 °C) is placed in a quiescent cold water bath (Thth10 °C). The interior and exterior sides of the container may be approximated as vertical plates, and the container's bottom is well insulated. Find the overall heat transfer coefficient, U, for this arrangement. You can assume the hot fluid has the same properties as water and that the container wall is at a temperature of 30 °C. (30 points) Thin-walled container Cold...
please help me ASAP [10 CO3 6. Obtained an expression for the view factor fi Hot...
please help me ASAP

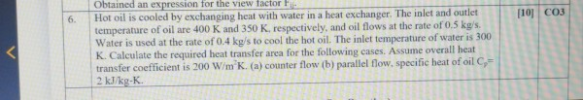

[10 CO3 6. Obtained an expression for the view factor fi Hot oil is cooled by exchanging heat with water in a heat exchanger. The inlet and outlet temperature of oil are 400 K and 350 K, respectively, and oil flows at the rate of 0.5 kg's Water is used at the rate of 0.4 kg/s to cool the hot oil. The inlet temperature of water is 300 K. Calculate the required heat transfer area for...
Part II - Show your work (19 Marks] 16 Cold water (Cp = 4180 J/kg. "C)...
Part II - Show your work (19 Marks] 16 Cold water (Cp = 4180 J/kg. "C) leading to a shower enters a thin-walled double-pipe counter flow heat exchanger at 15°C at a rate of 0.25 kg/s and is heated to 45°C by hot water (Cp = 4190 J/kg. "C) that enters at 100°C at a rate of 3 kg/s. If the overall heat transfer coefficient is 950 W/m2. C, determine the rate of heat transfer and the heat transfer surface...
Twenty [kw] of heat is to be removed from 375 [k] water flowing at 0.15 [kg/s] into the inner pipe of concentric tube heat exchanger. Cooling water enters the annulus at 290 [k] and leaves at 320...
Twenty [kw] of heat is to be removed from 375 [k] water flowing at 0.15 [kg/s] into the inner pipe of concentric tube heat exchanger. Cooling water enters the annulus at 290 [k] and leaves at 320 [k] with a flow in the opposite direction of the inner flow. The diameter of the thin- walled inner pipe is 2.5 [cm] a) b) c) Calculate the exit temperature of the hot fluid and the mass flow rate of the cold fluid...
Hot and cold water streams exchange heat in a double pipe heat exchanger in counter current...
Hot and cold water streams exchange heat in a double pipe heat exchanger in counter current flow. The pipes are 3 ft long. The inside pipe is a 5/8 inch BWG 12 copper tube. The outside pipe is a 1 inch Sch 40 steel pipe. The outside pipe is insulated to minimize heat loss to the surroundings. The hot water enters the inside tube at 180F with a flow rate such that Re = 10000 The cold water flows through...
11.20 Heat exchanger of counter flow arrangement with temperatures at inlet of hot and cold fluids are (200°C) and (60°C) gave outlet temperature of (110°C) for both sides as the surfaces were clean. After long time of use for same the inlet temperatures and flow rate, the hot fluid outlet was (130°C). Find the change in the overall heat transfer coefficient and the heat transfer values by percentage. Ans.: -37.4%, -22.2% 11.21 A liquid with a specific heat of (3200J/kg....
Question 5 The following data is given for counter flow in concentric tube heat exchanger, mean heat transfer area = 0.02 m2 Test No Flow rate hot Flow rate Tin hotTout hot|Tin cold Tout cold (L/min) cold (L/min) (THI) (TH2) (TCI) (TC2) 13 1 60 56 30 42 a) Calculate the heat transfer rate in kW. b) The overall heat transfer coefficient U. c) The mean temperature efficiency of the two circuits (ń).
Consider a cross-flow heat exchanger with a surface area of 10 m². The cold fluid has a heat capacity rate of 2310 W/K and inlet and outlet temperatures of 25°C and 150°C respectively. The hot fluid has a heat capacity rate of 2000 W/K and an inlet temperature of 325°C. If the cold fluid can be considered mixed and the hot fluid unmixed, find the overall heat transfer coefficient, u, in W/m2.K, and the outlet temperature, in °C, of the...
3.) A thin-walled container with a hot fluid (T50 °C) is placed in a quiescent cold water bath (Thth10 °C). The interior and exterior sides of the container may be approximated as vertical plates, and the container's bottom is well insulated. Find the overall heat transfer coefficient, U, for this arrangement. You can assume the hot fluid has the same properties as water and that the container wall is at a temperature of 30 °C. (30 points) Thin-walled container Cold...
please help me ASAP
[10 CO3 6. Obtained an expression for the view factor fi Hot oil is cooled by exchanging heat with water in a heat exchanger. The inlet and outlet temperature of oil are 400 K and 350 K, respectively, and oil flows at the rate of 0.5 kg's Water is used at the rate of 0.4 kg/s to cool the hot oil. The inlet temperature of water is 300 K. Calculate the required heat transfer area for...
Part II - Show your work (19 Marks] 16 Cold water (Cp = 4180 J/kg. "C) leading to a shower enters a thin-walled double-pipe counter flow heat exchanger at 15°C at a rate of 0.25 kg/s and is heated to 45°C by hot water (Cp = 4190 J/kg. "C) that enters at 100°C at a rate of 3 kg/s. If the overall heat transfer coefficient is 950 W/m2. C, determine the rate of heat transfer and the heat transfer surface...
Twenty [kw] of heat is to be removed from 375 [k] water flowing at 0.15 [kg/s] into the inner pipe of concentric tube heat exchanger. Cooling water enters the annulus at 290 [k] and leaves at 320 [k] with a flow in the opposite direction of the inner flow. The diameter of the thin- walled inner pipe is 2.5 [cm] a) b) c) Calculate the exit temperature of the hot fluid and the mass flow rate of the cold fluid...
Hot and cold water streams exchange heat in a double pipe heat exchanger in counter current flow. The pipes are 3 ft long. The inside pipe is a 5/8 inch BWG 12 copper tube. The outside pipe is a 1 inch Sch 40 steel pipe. The outside pipe is insulated to minimize heat loss to the surroundings. The hot water enters the inside tube at 180F with a flow rate such that Re = 10000 The cold water flows through...
