Please use Logicly!

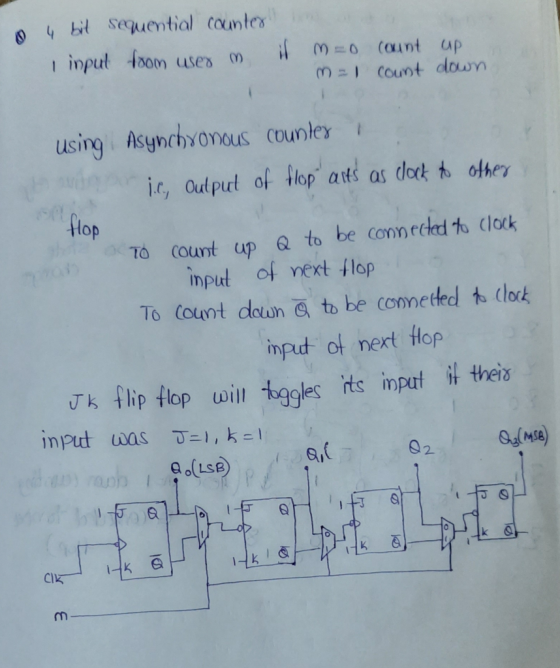

Create a 4 bit sequential counter that is capable of counting up
or down.
You have to accept one input from user, deciding the direction that
it counts in. The circuit change the operation from count up and
count down without skipping numbers. Use no more than 4 flip flops
in the circuit.
If the input is count up, the circuit should count from 0 to 15, then restart from 0. If user input is count down, the circuit should count down from 15 to 0 and restart from 15.

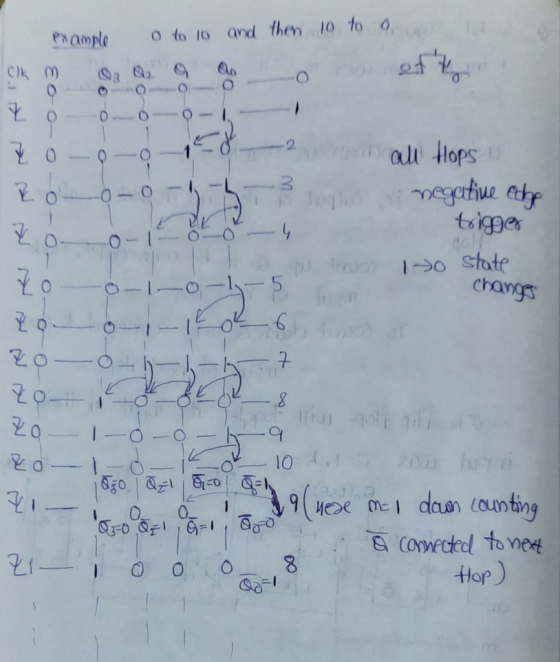

Example: the user can choose to count up from 0 to 10, and the user can choose to count down when the circuit hits 10. In this case, the circuit should follow the sequence: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 9, 8, 7, 6, 5, 4, 3, 2, 1, 0, and so on.
