A concentration cell is built based on the reaction: 2H+ + 2e- ----> H2 The pH...

Question

Question

A concentration cell is built based on the reaction:

2H⁺ + 2e^- ----> H₂

The pH in one of the half cell is -0.1106, while pH in the other is 2.955. If the temperature of the overall is 299K, what is the potential?

science chemistry

Answer 1

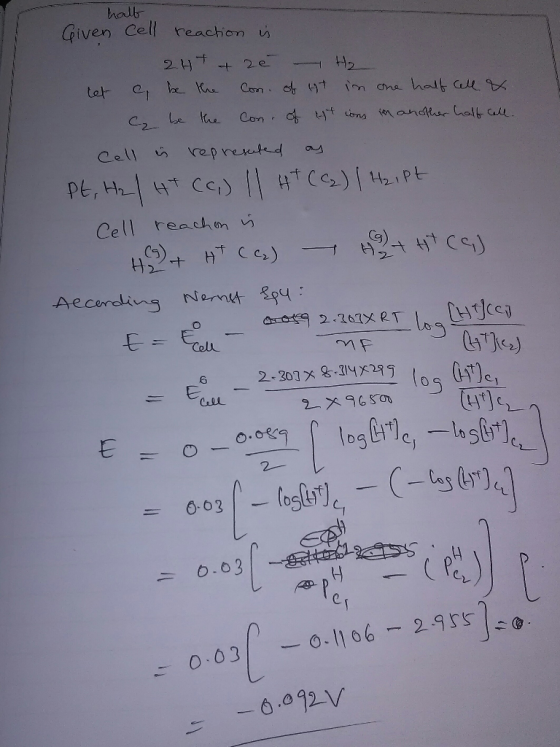

Answer #1

Answer 2
