Water flowing uniformly in a rectangular open channel has manning value of 0.017, bottom slope of...

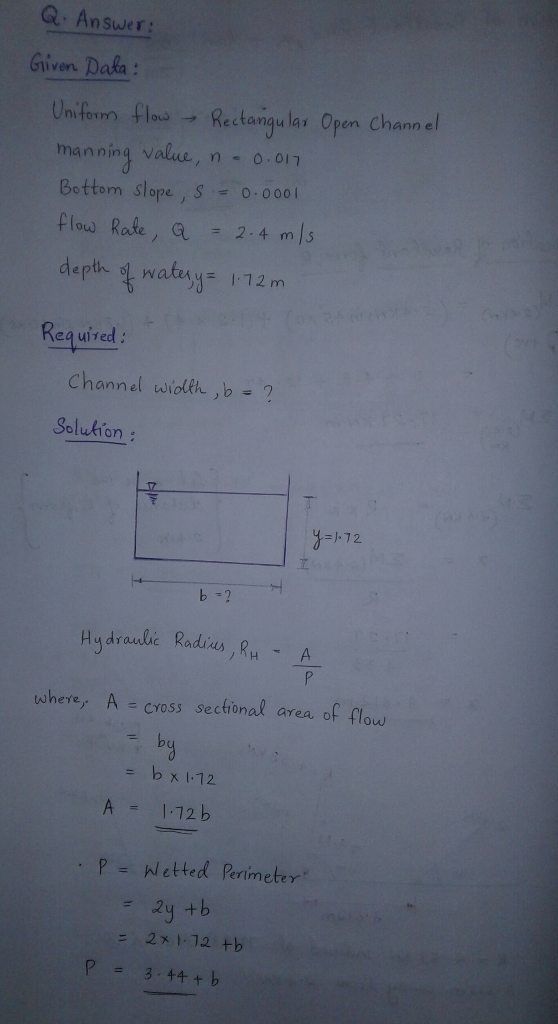

Water flowing uniformly in a rectangular open channel has manning value of 0.017, bottom slope of 0.0001, flow rate of 2.4, water depth of 1.72. Find the channel width
Homework Answers
The width of the channel =2.114m.

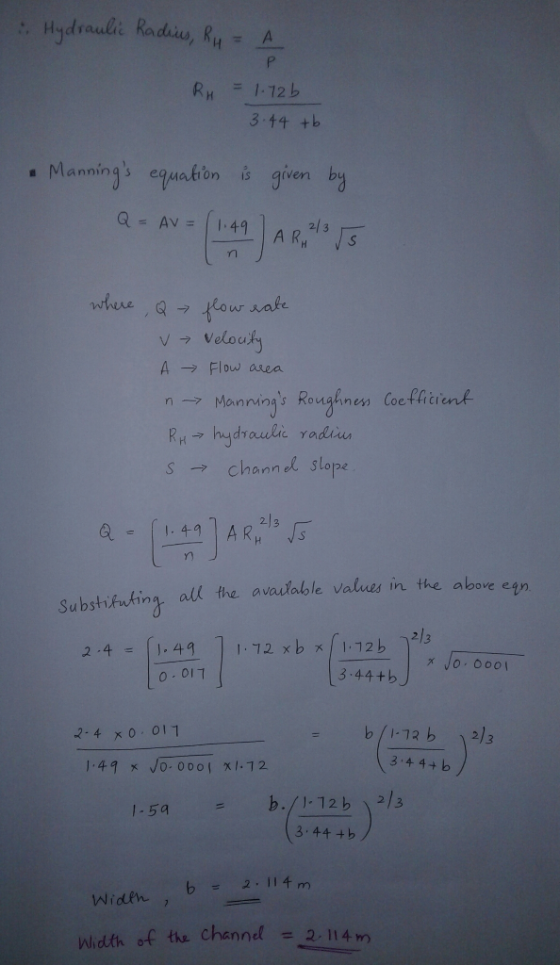

Manning's equation is used to solve the problem.
(Please give a thumbs up ).
