A resistance of 3 ohms and an inductance of 2 henries are in series with an...

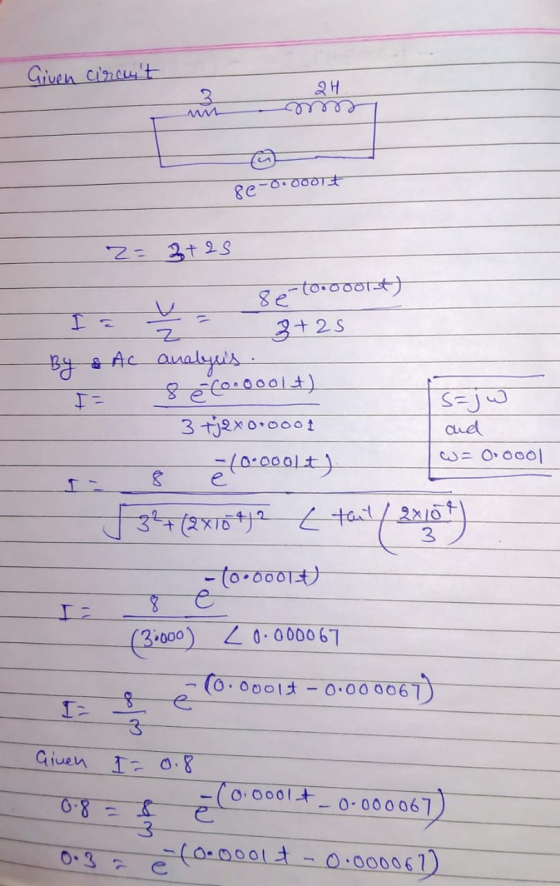

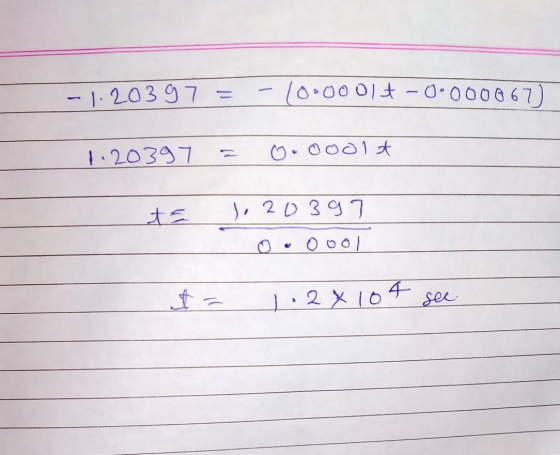

A resistance of 3 ohms and an inductance of 2 henries are in series with an electromotive force (emf) of 8e^(-0.0001t) volts. When will the current be 0.8 A if no current flows initially? Express your answer in milliseconds.
Homework Answers
In
Milliseconds...Add Answer to:
