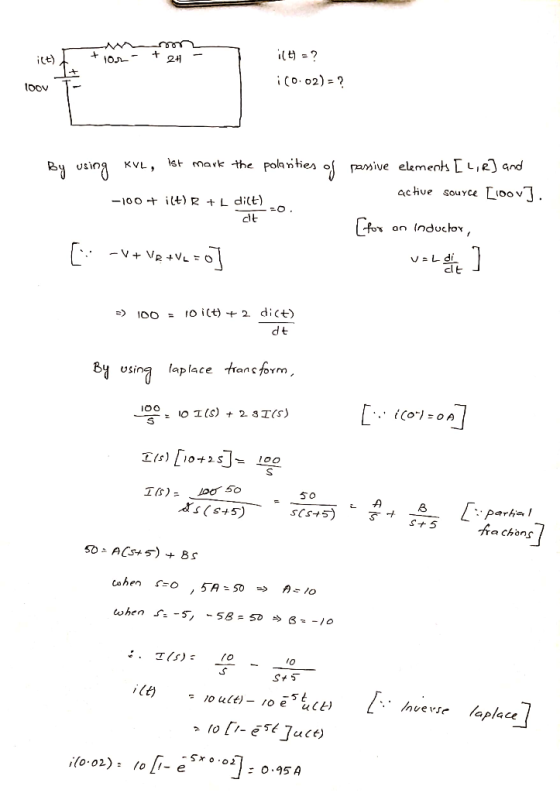

A resistance and inductance are connected in series in a circuit containing an impressed voltage of 100V. If R=10 ohms, L= 2 henries and i=0, find i when t=0.02 sec. Express in amperes, using 2 decimal places.
if you like the way the question is answered give it a like or else drop down your valuable comments and suggestions. Thank you
A resistance and inductance are connected in series in a circuit containing an impressed voltage of...
MATLAB CODING PROBLEM FOR NUMERICAL METHODS CLASS (ME3215) HW10-4 in a circuit with impressed voltage ε(t) and inductance L, Kirchoff's first law gives the following relationship di dt where R is the resistance in the circuit and i is the current. The following measurements were made for several values of t. Let L = 0.98 henries & R = 0.142 ohms. Approximate the voltage ε(t) at each value of t and print the results in a table t(amp) 1.00 1.01.02...
Q 3. In an LRC series circuit, the impressed voltage Elt) and the charge q(t) on the capacitor are related to cach other hy the linear socond-order ordinary differential equation, dey + R 1 g= E(t) . T dt df where L is the inductaice. R is the resistauce and C is the capacitance. Suppose we Icasure the charge on rhe capacitor for several valnes of t and obtain 1.4 1.0 1.1 1.2 1.3 32 22 24 28 21 where...
An electromotive force 300, 0 sts 50 0, E(t) = t 50 is applied to an LR-series circuit in which the inductance is 50 henries and the resistance is 5 ohms. Find the current i(t) if i(0) = 0. , 0 sts50 i(t)= t 50 An electromotive force 300, 0 sts 50 0, E(t) = t 50 is applied to an LR-series circuit in which the inductance is 50 henries and the resistance is 5 ohms. Find the current i(t)...
In an L-R-C series circuit, the resistance is 340 ohms, the inductance is 0.340 henrys, and the capacitance is 1.40×10−2 microfarads. A) what is the resonance angular frequency ω0 of the circuit? Express your answer in radians per second to three significant figures. B) The capacitor can withstand a peak voltage of 600 volts. If the voltage source operates at the resonance frequency, what maximum voltage amplitude Vmax can the source have if the maximum capacitor voltage is not exceeded?...
In an L-R-C series circuit, the resistance is 360 ohms, the inductance is 0.380 henrys, and the capacitance is 2.00×10−2 microfarads. What is the resonance angular frequency ω0 of the circuit? Express your answer in radians per second to three significant figures. The capacitor can withstand a peak voltage of 550 volts. If the voltage source operates at the resonance frequency, what maximum voltage amplitude Vmax can the source have if the maximum capacitor voltage is not exceeded? Express your...
Answer: Please help! Electrical series circuits never make sence to me. I included the answer so that you can check your work. Hope that helps. 19. An electrical series circuit contains a resistor with a resistance of R- 20 ohms, a capacitor with a capacitance of C 0.01 farads, and an inductor with an inductance of L 1 henry. The initial current in the circuit is 0 amperes. A variable voltage of E(t) 120 sin volts of is applied to...
In an L-R-C series circuit, the resistance is 380 ohms, the inductance is 0.360 henrys, and the capacitance is 1.40×10−2 microfarads. 1)What is the resonance angular frequency ω0 of the circuit? 2)The capacitor can withstand a peak voltage of 580 volts. If the voltage source operates at the resonance frequency, what maximum voltage amplitude Vmax can the source have if the maximum capacitor voltage is not exceeded?
1. A 2-H INDUCTOR DRIVES A CURRENT OF 0.5 AMP WHEN THE CIRCUIT IS OPENED THE CURRENT DISAPPEARS IN 0.01 SEC, CALCULATE THE EMF. 2. CALCULATE THE MAGNETIC FLOW THROUGH A COIL OF 7.2 Mh WITH 300 ROLLS WHEN i=10 mAmp 3. THE CURRENT IN A 0.02-H INDUCTOR VARY ACCORDING TO I-3t 4t CALCULATE a. Emf at t=1 sec and t = 5 sec b. So that the value of t the Emf induced is zero 4. A SOLENOID HAS...
2. This problem is about an RLC circuit, which involves a resistor (of resistance R ohms), an inductor (of L henries), and a capacitor (of C farads). There is also a voltage source (such as a battery) providing E(t) volts at time t. 0 Switch When the switch is closed there is a current of I(t) amperes. With the help of Kirchhoff's laws one can derive an ODE for I = I(t): LI" + RI' + + I = E'(t)...
a) A coil having resistance of 12 2 and an unknown inductance is connected in series with a 14uF capacitor. The circuit draws maximum current when a voltage of 200 V at 60 Hz is applied. A second capacitor is then connected in parallel to the circuit. i) What should be its value (capacitance), such that the combination acts like a non- inductive resistance, with the same voltage (200V) at 120 Hz? [3.0 marks] ii) Calculate the supply current drawn...
