Residential building codes typically require the use of 12-gauge copper wire (diameter 0.205 cm) for wiring...

Residential building codes typically require the use of 12-gauge copper wire (diameter 0.205 cm) for wiring receptacles. Such circuits carry currents as large as 20.0 A. If a wire of smaller diameter (with a higher gauge number) carried that much current, the wire could rise to a high temperature and cause a fire. (Table of resistivities)

(a) Calculate the rate at which internal energy is produced in 1.55 m of 12-gauge copper wire carrying 20.0 A.
  W

(b) Repeat the calculation for a 12-gauge aluminum wire.
W

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

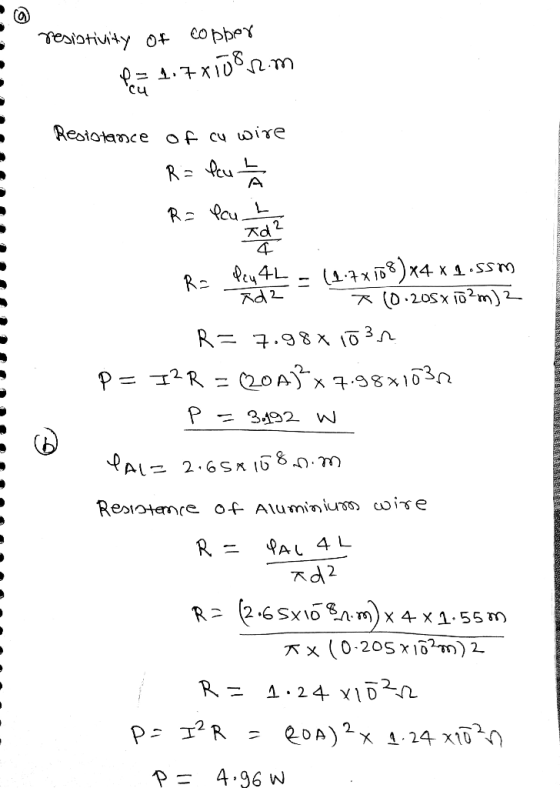

Answer #1

0 0
Add a comment

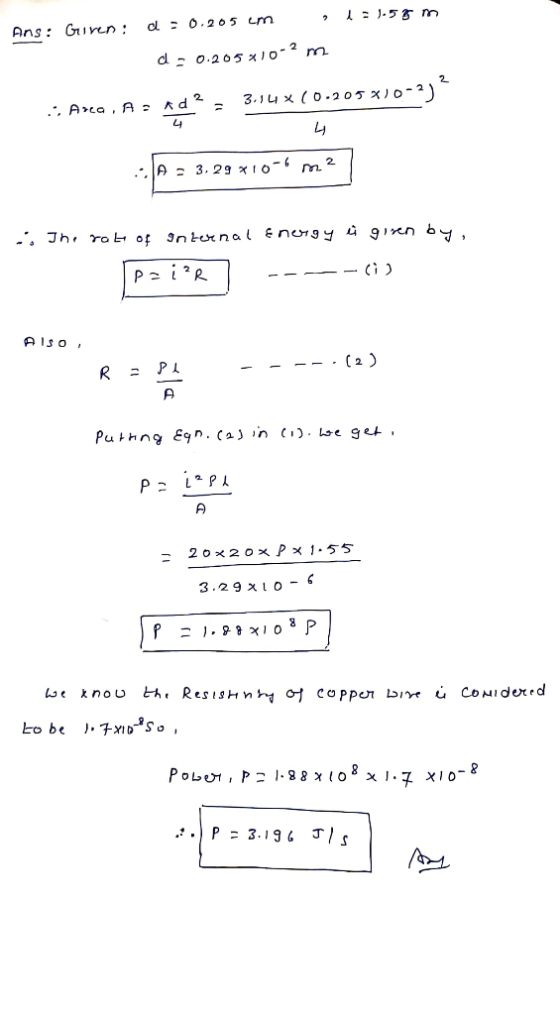

Answer #2

,

Check the value of resistivity from your textbook.if value is different then put that value

0 0
Add a comment
Know the answer?
Add Answer to:
Residential building codes typically require the use of 12-gauge copper wire (diameter 0.205 cm) for wiring...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Residential building codes typically require the use of 12-gauge copper wire (diameter 0.205 cm) for wiring...

    Residential building codes typically require the use of 12-gauge copper wire (diameter 0.205 cm) for wiring receptacles. Such circuits carry currents as large as 20.0 A. If a wire of smaller diameter (with a higher gauge number) carried that much current, the wire could rise to a high temperature and cause a fire. (a) Calculate the rate at which internal energy is produced in 1.15 m of 12-gauge copper wire carrying a current of 20.0 A. (b) Repeat the calculation...

  • 1. Residential building codes typically require the use of 12-gauge copper wire (diameter 0.205 cm) for...

    1. Residential building codes typically require the use of 12-gauge copper wire (diameter 0.205 cm) for wiring receptacles. Such circuits carry currents as large as 20.0 A. If a wire of smaller diameter (with a higher gauge number) carried that much current, the wire could rise to a high temperature and cause a fire. (Table of resistivities) (a) Calculate the rate at which internal energy is produced in 1.75 m of 12-gauge copper wire carrying a current of 20.0 A....

  • Residential building codes typically require the use of 12-gauge copper wire (diameter 0.205 cm) for wiring...

    Residential building codes typically require the use of 12-gauge copper wire (diameter 0.205 cm) for wiring receptacles. Such circuits carry currents as large as 20.0 A. If a wire of smaller diameter (with a higher gauge number) carried that much current, the wire could rise to a high temperature and cause a fire. (Table of resistivities) Material Resistivitya (Ω · m) Temperature Coefficient of Resistivityb α [(°C)−1] Silver 1.59 ✕ 10−8 3.8 ✕ 10−3 Copper 1.7 ✕ 10−8 3.9 ✕...

  • If all questions can be answered thank you! 5. [-/1.42 points] DETAILS MY NOTES ASK YOUR...

    If all questions can be answered thank you! 5. [-/1.42 points] DETAILS MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER Residential building codes typically require the use of 12-gauge copper wire (diameter 0.205 cm) for wiring receptacles. Such circuits carry currents as large as 20.0 A. If a wire of smaller diameter (with a higher gauge number) carried that much current, the wire could rise to a high temperature and cause a fire. (Table of resistivities) (a) Calculate the rate at...

  • 5. Number 12-gauge wire, commonly used in household wiring, is 2.053 mm in can mm in...

    5. Number 12-gauge wire, commonly used in household wiring, is 2.053 mm in can mm in diameter and safely carry currents of up to 20.0 A. If a wire is carrying this maximu magnetic field strength produced by this wire at the following distances? ent, what is the m curr a) 0.30 mm from the wire's axis. (2) b) at the wire's surface (2) c) 0.75 mm beyond the wire's surface (2)

  • the 12 gauge copper wire in a typical residential building has a cross-sectional area of 3.31e-6...

    the 12 gauge copper wire in a typical residential building has a cross-sectional area of 3.31e-6 m^2. it carries a constant current of 10 A. What is the drift speed of the electrons in the wire? Assume each copper atom contributes one free electron to the current. The density of copper is 8.92 g/cm^3

  • 1. A number 12 copper wire has a diameter of 2.053 mm. Calculate the resistance of...

    1. A number 12 copper wire has a diameter of 2.053 mm. Calculate the resistance of a 37.0 m long piece of such wire. (Use 1.72×10-8 Ωm for the resistivity of copper.) Use the formula for resistance remembering that the diameter is specified rather than the radius. 2. For safety, the National Electrical Code limits the allowable amount of current which such a wire may carry. When used in indoor wiring, the limit is 20.0 A for rubber insulated wire...

  • A number 12 copper wire has a diameter of 2.053 mm. Calculate the resistance of a...

    A number 12 copper wire has a diameter of 2.053 mm. Calculate the resistance of a 37.0 m long piece of such wire. (Use 1.72×10-8 Ωm for the resistivity of copper.) Tries 0/20 For safety, the National Electrical Code limits the allowable amount of current which such a wire may carry. When used in indoor wiring, the limit is 20.0 A for rubber insulated wire of that size. How much power would be dissipated in the wire of the above...

  • A number 12 copper wire has a diameter of 2.053 mm. Calculate the resistance of a...

    A number 12 copper wire has a diameter of 2.053 mm. Calculate the resistance of a 40.0 m long piece of such wire. (Use 1.72x 10-8 2m for the resistivity of copper.) Submit Answer Tries 0/99 For safety, the National Electrical Code limits the allowable amount of current which such a wire may carry. When used in indoor wiring, the limit is 20.0 A for rubber insulated wire of that size. How much power would be dissipated in the wire...

  • 1) 10 meters of 12-gauge copper wire (2 mm diameter) is used to carry 20 A...

    1) 10 meters of 12-gauge copper wire (2 mm diameter) is used to carry 20 A DC current. a]- Calculate the resistance of the wire, b]- the voltage drop, ,,,,<<<< Please step by step , I want to learn >>>.... c]- the power loss ? = ??, and d]- the magnitude of J, E in the wire
